Datasheet ASSR-1410, ASSR-1411, ASSR-1420 (Broadcom) - 2
| Manufacturer | Broadcom |
| Description | General-Purpose, Form A, Solid State Relay (Photo MOSFET) (60V/0.6A/1Ω) |
| Pages / Page | 16 / 2 — ASSR-1410, ASSR-1411, and ASSR-1420. Functional Diagram. Truth Table. … |
| File Format / Size | PDF / 821 Kb |
| Document Language | English |
ASSR-1410, ASSR-1411, and ASSR-1420. Functional Diagram. Truth Table. LED. Output. Ordering Information. Option. Part Number
Model Line for this Datasheet
Text Version of Document

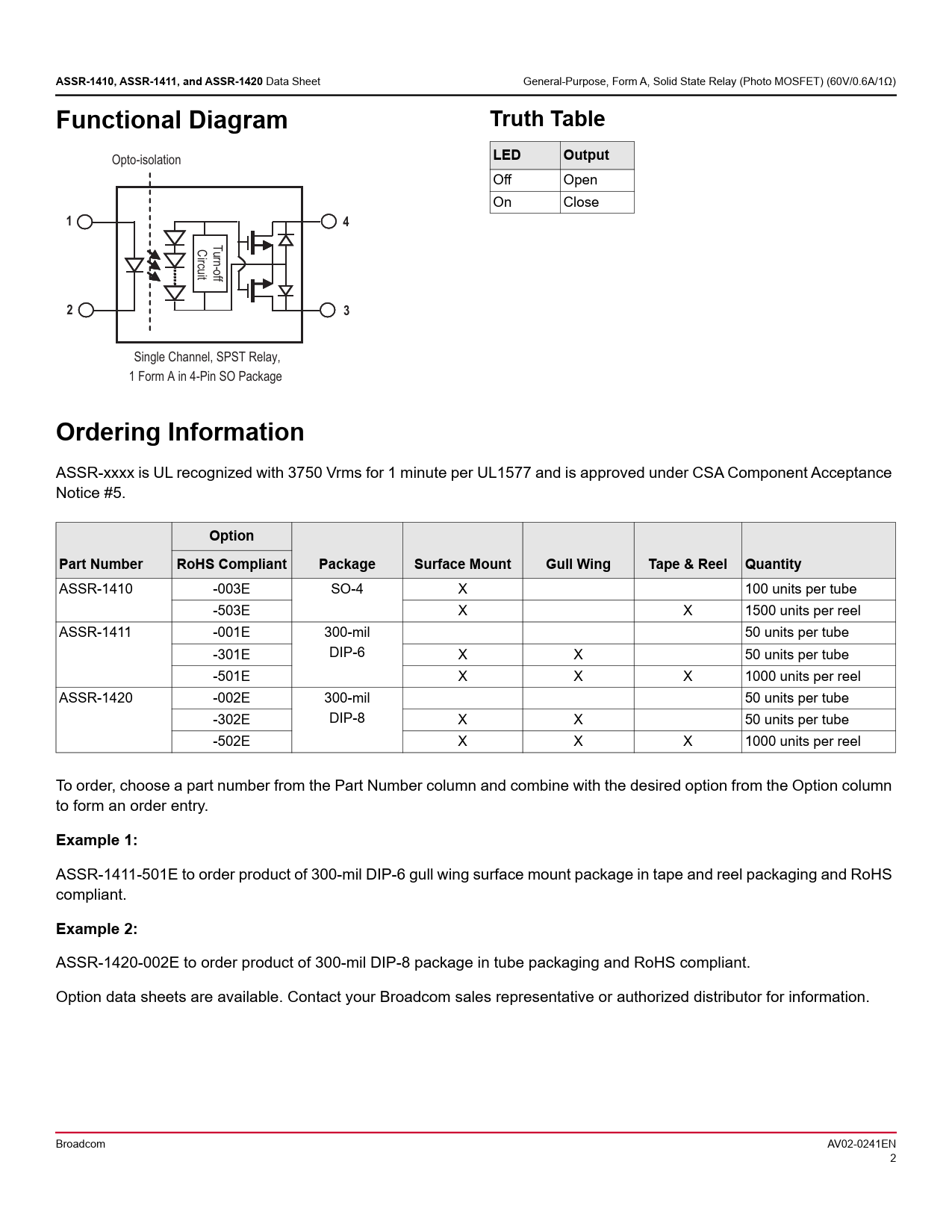

ASSR-1410, ASSR-1411, and ASSR-1420
Data Sheet General-Purpose, Form A, Solid State Relay (Photo MOSFET) (60V/0.6A/1Ω)
Functional Diagram Truth Table
Opto-isolation
LED Output
Of Open On Close
1 4
Turn Circuit -off
2 3
Single Channel, SPST Relay, 1 Form A in 4-Pin SO Package
Ordering Information
ASSR-xxxx is UL recognized with 3750 Vrms for 1 minute per UL1577 and is approved under CSA Component Acceptance Notice #5.
Option Part Number RoHS Compliant Package Surface Mount Gul Wing Tape & Reel Quantity
ASSR-1410 -003E SO-4 X 100 units per tube -503E X X 1500 units per reel ASSR-1411 -001E 300-mil 50 units per tube -301E DIP-6 X X 50 units per tube -501E X X X 1000 units per reel ASSR-1420 -002E 300-mil 50 units per tube -302E DIP-8 X X 50 units per tube -502E X X X 1000 units per reel To order, choose a part number from the Part Number column and combine with the desired option from the Option column to form an order entry.
Example 1:
ASSR-1411-501E to order product of 300-mil DIP-6 gull wing surface mount package in tape and reel packaging and RoHS compliant.
Example 2:
ASSR-1420-002E to order product of 300-mil DIP-8 package in tube packaging and RoHS compliant. Option data sheets are available. Contact your Broadcom sales representative or authorized distributor for information. Broadcom AV02-0241EN2 Document Outline Description Features Applications Functional Diagram Truth Table Ordering Information Schematics ASSR-1410 ASSR-1411 Connection A ASSR-1411 Connection B ASSR-1420 Package Outline Drawings ASSR-1410 4-Pin Small Outline Package ASSR-1411 6-Pin DIP Package ASSR-1411 6-Pin DIP Package with Gull Wing Surface Mount Option 300 ASSR-1420 8-Pin DIP Package ASSR-1420 8-Pin DIP Package with Gull Wing Surface Mount Option 300 Solder Reflow Profile Regulatory Information Insulation and Safety Related Specifications Absolute Maximum Ratings Recommended Operating Conditions Package Characteristics Electrical Specifications (DC) Switching Specifications (AC) Applications Information On-Resistance and Derating Curves Turn-On Time and Turn-Off Time Variation
