| Manufacturer | Broadcom |
| Description | General-Purpose, Form A, Solid State Relay (Photo MOSFET) (60V/0.6A/1Ω) |
| Pages / Page | 16 / 4 — ASSR-1410, ASSR-1411, and ASSR-1420. ASSR-1420. Package Outline Drawings … |
| File Format / Size | PDF / 821 Kb |
| Document Language | English |
ASSR-1410, ASSR-1411, and ASSR-1420. ASSR-1420. Package Outline Drawings ASSR-1410 4-Pin Small Outline Package
Model Line for this Datasheet
Text Version of Document
ASSR-1410, ASSR-1411, and ASSR-1420
Data Sheet General-Purpose, Form A, Solid State Relay (Photo MOSFET) (60V/0.6A/1Ω)
ASSR-1420
Opto-isolation Opto-isolation 1 8 Circuit Turn-off 1 8 2 7 2 7 Equivalent Relay Diagram 3 6 3 6 Circuit Turn-off 4 5 4 5

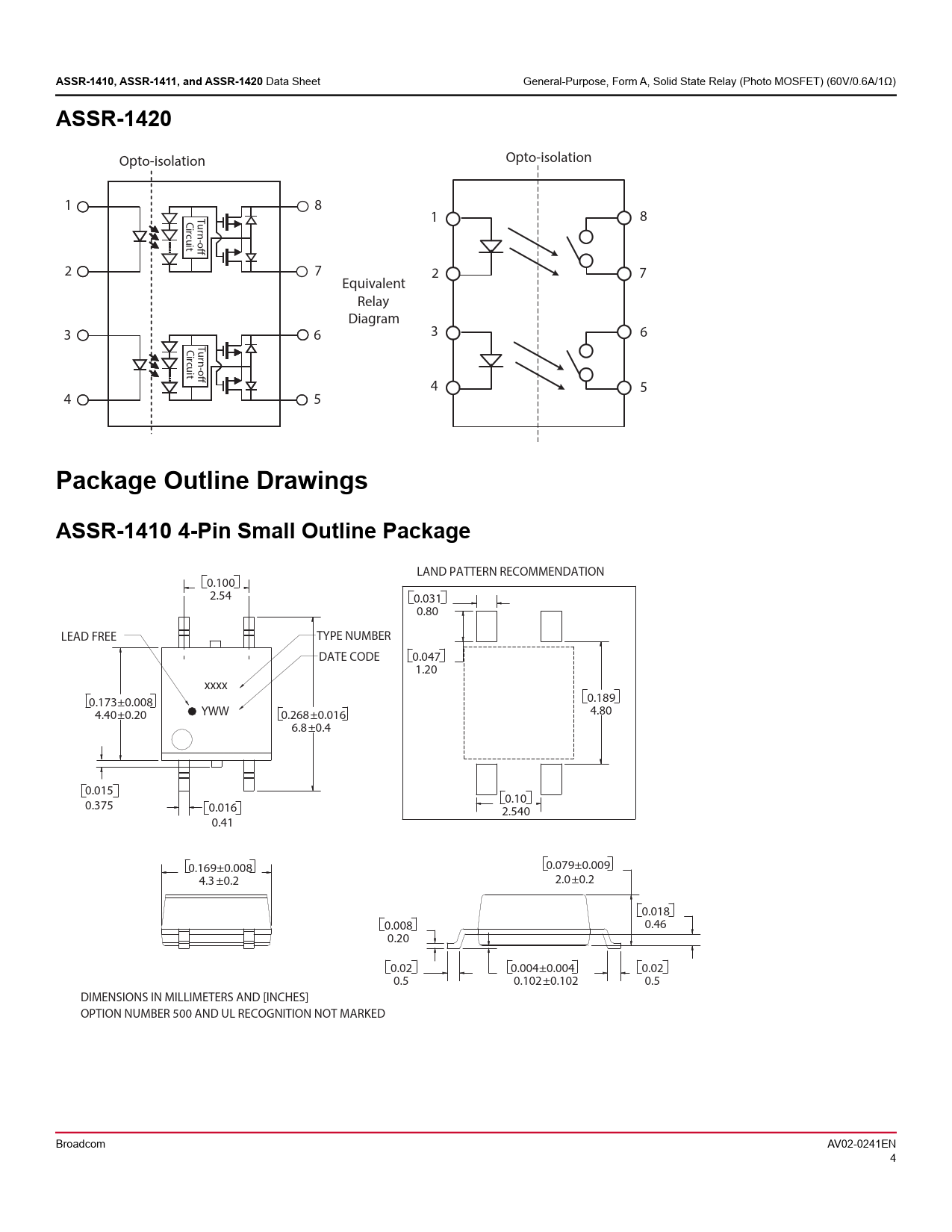

Package Outline Drawings ASSR-1410 4-Pin Small Outline Package
