Datasheet ASSR-1410, ASSR-1411, ASSR-1420 (Broadcom) - 6
| Manufacturer | Broadcom |
| Description | General-Purpose, Form A, Solid State Relay (Photo MOSFET) (60V/0.6A/1Ω) |
| Pages / Page | 16 / 6 — ASSR-1410, ASSR-1411, and ASSR-1420. ASSR-1420 8-Pin DIP Package |
| File Format / Size | PDF / 821 Kb |
| Document Language | English |
ASSR-1410, ASSR-1411, and ASSR-1420. ASSR-1420 8-Pin DIP Package
Model Line for this Datasheet
Text Version of Document
ASSR-1410, ASSR-1411, and ASSR-1420
Data Sheet General-Purpose, Form A, Solid State Relay (Photo MOSFET) (60V/0.6A/1Ω)
ASSR-1420 8-Pin DIP Package

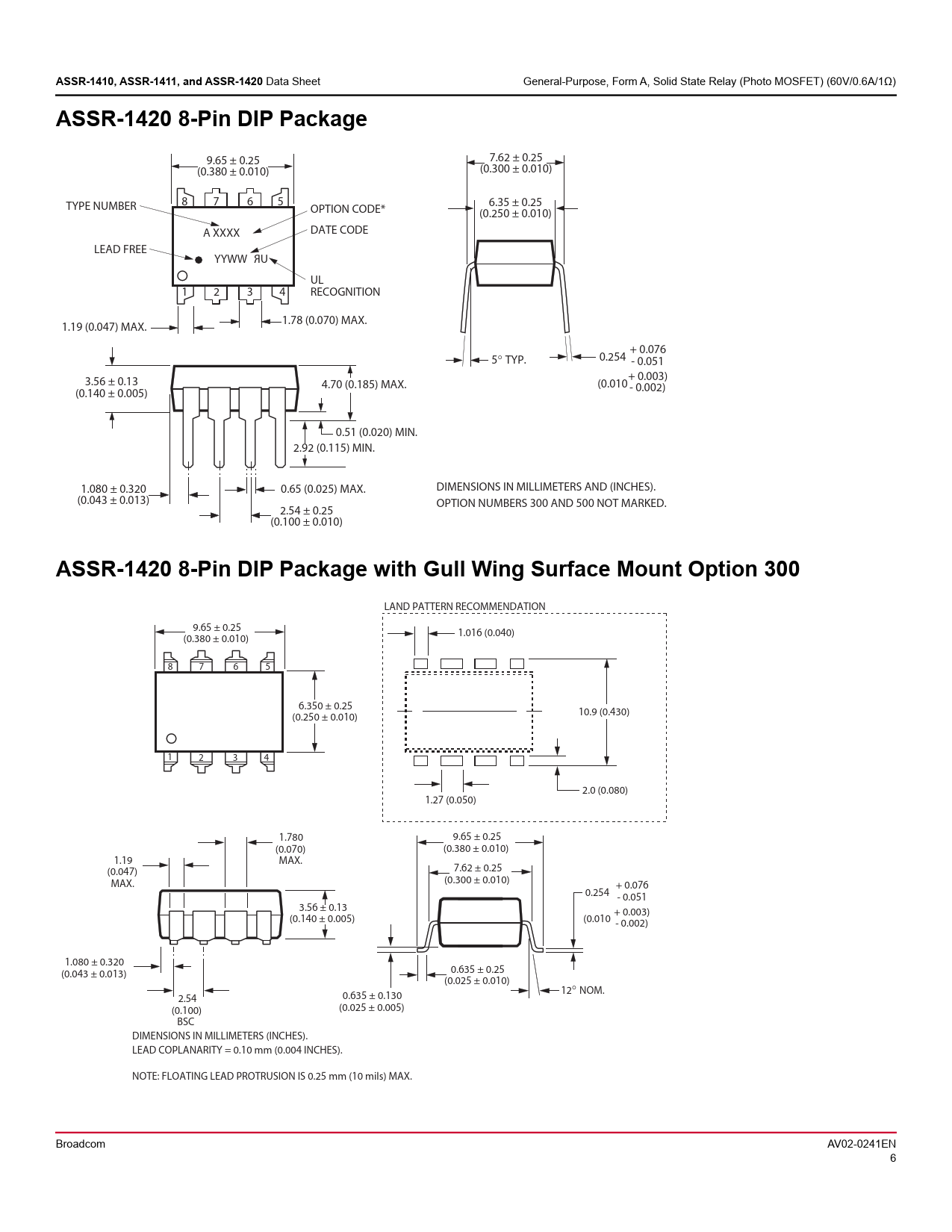

7.62 ± 0.25 9.65 ± 0.25 (0.300 ± 0.010) (0.380 ± 0.010) 8 7 6 5 6.35 ± 0.25 TYPE NUMBER OPTION CODE* (0.250 ± 0.010) A XXXX DATE CODE LEAD FREE YYWW UR UL 1 2 3 4 RECOGNITION 1.78 (0.070) MAX. 1.19 (0.047) MAX. + 0.076 5° TYP. 0.254 - 0.051 + 0.003) 3.56 ± 0.13 4.70 (0.185) MAX. (0.010 - 0.002) (0.140 ± 0.005) 0.51 (0.020) MIN. 2.92 (0.115) MIN. 1.080 ± 0.320 0.65 (0.025) MAX. DIMENSIONS IN MILLIMETERS AND (INCHES). (0.043 ± 0.013) OPTION NUMBERS 300 AND 500 NOT MARKED. 2.54 ± 0.25 (0.100 ± 0.010)
ASSR-1420 8-Pin DIP Package with Gul Wing Surface Mount Option 300
LAND PATTERN RECOMMENDATION 9.65 ± 0.25 (0.380 ± 0.010) 1.016 (0.040) 8 7 6 5 6.350 ± 0.25 (0.250 ± 0.010) 10.9 (0.430) 1 2 3 4 2.0 (0.080) 1.27 (0.050) 1.780 9.65 ± 0.25 (0.070) (0.380 ± 0.010) 1.19 MAX. 7.62 ± 0.25 (0.047) (0.300 ± 0.010) MAX. + 0.076 0.254 - 0.051 3.56 ± 0.13 + 0.003) (0.140 ± 0.005) (0.010 - 0.002) 1.080 ± 0.320 0.635 ± 0.25 (0.043 ± 0.013) (0.025 ± 0.010) 12° NOM. 0.635 ± 0.130 2.54 (0.025 ± 0.005) (0.100) BSC DIMENSIONS IN MILLIMETERS (INCHES). LEAD COPLANARITY = 0.10 mm (0.004 INCHES). NOTE: FLOATING LEAD PROTRUSION IS 0.25 mm (10 mils) MAX. Broadcom AV02-0241EN6 Document Outline Description Features Applications Functional Diagram Truth Table Ordering Information Schematics ASSR-1410 ASSR-1411 Connection A ASSR-1411 Connection B ASSR-1420 Package Outline Drawings ASSR-1410 4-Pin Small Outline Package ASSR-1411 6-Pin DIP Package ASSR-1411 6-Pin DIP Package with Gull Wing Surface Mount Option 300 ASSR-1420 8-Pin DIP Package ASSR-1420 8-Pin DIP Package with Gull Wing Surface Mount Option 300 Solder Reflow Profile Regulatory Information Insulation and Safety Related Specifications Absolute Maximum Ratings Recommended Operating Conditions Package Characteristics Electrical Specifications (DC) Switching Specifications (AC) Applications Information On-Resistance and Derating Curves Turn-On Time and Turn-Off Time Variation
