Datasheet ASSR-1410, ASSR-1411, ASSR-1420 (Broadcom) - 8
| Manufacturer | Broadcom |
| Description | General-Purpose, Form A, Solid State Relay (Photo MOSFET) (60V/0.6A/1Ω) |
| Pages / Page | 16 / 8 — ASSR-1410, ASSR-1411, and ASSR-1420. Absolute Maximum Ratings. Parameter. … |
| File Format / Size | PDF / 821 Kb |
| Document Language | English |

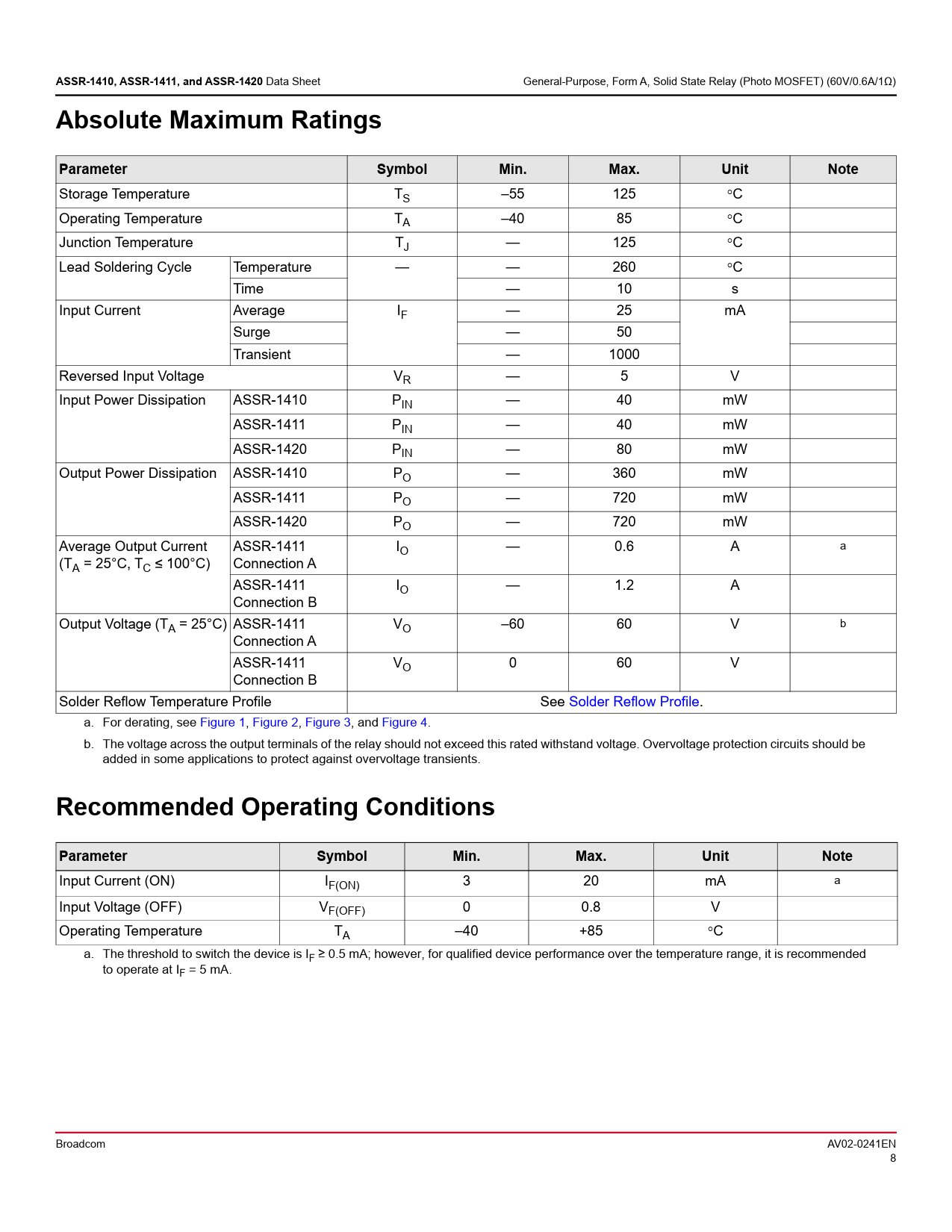

ASSR-1410, ASSR-1411, and ASSR-1420. Absolute Maximum Ratings. Parameter. Symbol. Min. Max. Unit. Note
Model Line for this Datasheet
Text Version of Document
link to page 7 link to page 11 link to page 11 link to page 11 link to page 11
ASSR-1410, ASSR-1411, and ASSR-1420
Data Sheet General-Purpose, Form A, Solid State Relay (Photo MOSFET) (60V/0.6A/1Ω)
Absolute Maximum Ratings Parameter Symbol Min. Max. Unit Note
Storage Temperature TS –55 125 °C Operating Temperature TA –40 85 °C Junction Temperature TJ — 125 °C Lead Soldering Cycle Temperature — — 260 °C Time — 10 s Input Current Average IF — 25 mA Surge — 50 Transient — 1000 Reversed Input Voltage VR — 5 V Input Power Dissipation ASSR-1410 PIN — 40 mW ASSR-1411 PIN — 40 mW ASSR-1420 PIN — 80 mW Output Power Dissipation ASSR-1410 PO — 360 mW ASSR-1411 PO — 720 mW ASSR-1420 PO — 720 mW Average Output Current ASSR-1411 IO — 0.6 A a (TA = 25°C, TC ≤ 100°C) Connection A ASSR-1411 IO — 1.2 A Connection B Output Voltage (TA = 25°C) ASSR-1411 VO –60 60 V b Connection A ASSR-1411 VO 0 60 V Connection B Solder Reflow Temperature Profile See Solder Reflow Profile. a. For derating, see Figure 1, Figure 2, Figure 3, and Figure 4. b. The voltage across the output terminals of the relay should not exceed this rated withstand voltage. Overvoltage protection circuits should be added in some applications to protect against overvoltage transients.
Recommended Operating Conditions Parameter Symbol Min. Max. Unit Note
Input Current (ON) IF(ON) 3 20 mA a Input Voltage (OFF) VF(OFF) 0 0.8 V Operating Temperature TA –40 +85 °C a. The threshold to switch the device is IF ≥ 0.5 mA; however, for qualified device performance over the temperature range, it is recommended to operate at IF = 5 mA. Broadcom AV02-0241EN8 Document Outline Description Features Applications Functional Diagram Truth Table Ordering Information Schematics ASSR-1410 ASSR-1411 Connection A ASSR-1411 Connection B ASSR-1420 Package Outline Drawings ASSR-1410 4-Pin Small Outline Package ASSR-1411 6-Pin DIP Package ASSR-1411 6-Pin DIP Package with Gull Wing Surface Mount Option 300 ASSR-1420 8-Pin DIP Package ASSR-1420 8-Pin DIP Package with Gull Wing Surface Mount Option 300 Solder Reflow Profile Regulatory Information Insulation and Safety Related Specifications Absolute Maximum Ratings Recommended Operating Conditions Package Characteristics Electrical Specifications (DC) Switching Specifications (AC) Applications Information On-Resistance and Derating Curves Turn-On Time and Turn-Off Time Variation
