High-Output-Drive, Precision, Low-Power, Single-. Supply, Rail-to-Rail I/O Op Amps with Shutdown. MAX4165–MAX4169
Model Line for this Datasheet
Text Version of Document
19-1224; Rev 3; 1/0 7

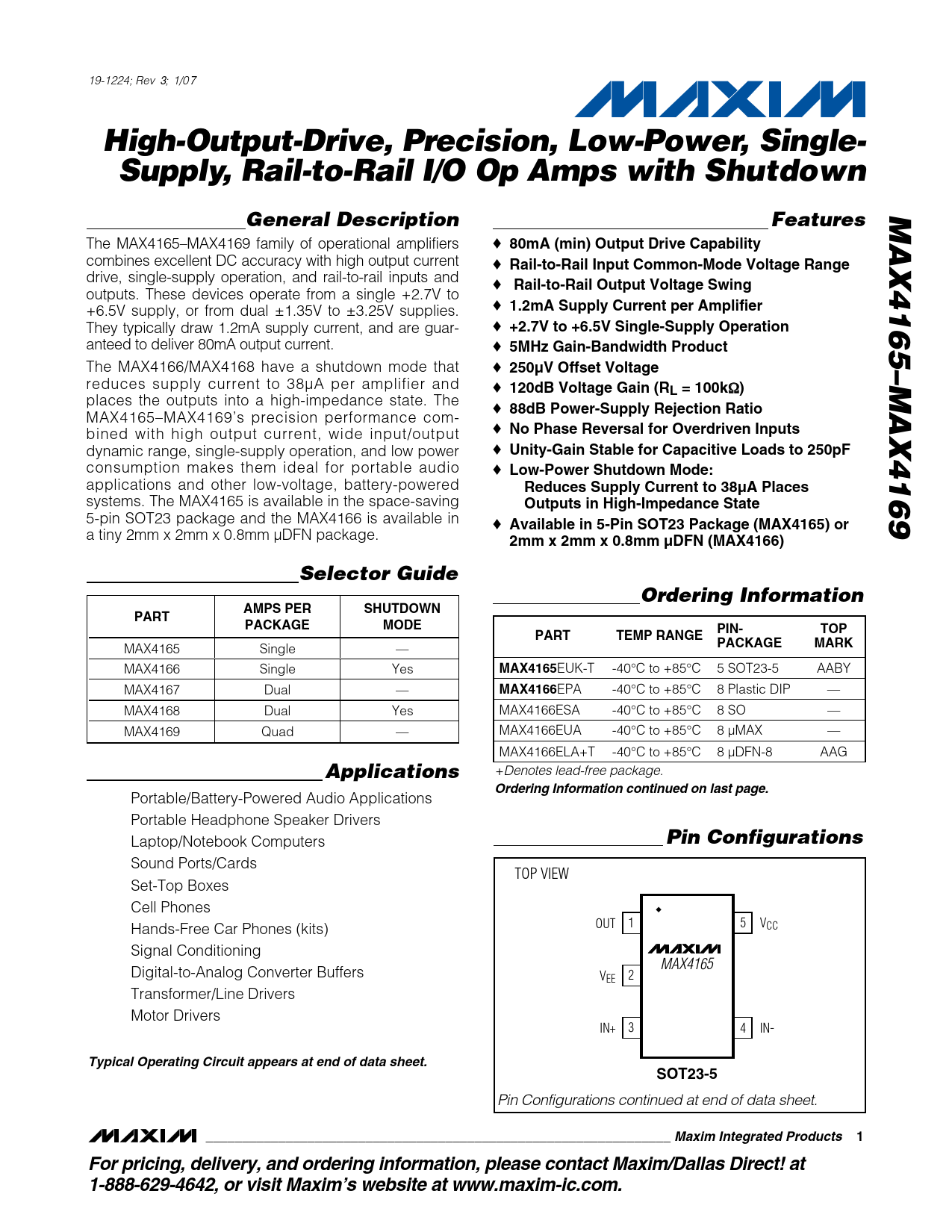

High-Output-Drive, Precision, Low-Power, Single- Supply, Rail-to-Rail I/O Op Amps with Shutdown MAX4165–MAX4169 General Description Features
The MAX4165–MAX4169 family of operational amplifiers ♦
80mA (min) Output Drive Capability
combines excellent DC accuracy with high output current ♦
Rail-to-Rail Input Common-Mode Voltage Range
drive, single-supply operation, and rail-to-rail inputs and ♦
Rail-to-Rail Output Voltage Swing
outputs. These devices operate from a single +2.7V to +6.5V supply, or from dual ±1.35V to ±3.25V supplies. ♦
1.2mA Supply Current per Amplifier
They typically draw 1.2mA supply current, and are guar- ♦
+2.7V to +6.5V Single-Supply Operation
anteed to deliver 80mA output current. ♦
5MHz Gain-Bandwidth Product
The MAX4166/MAX4168 have a shutdown mode that ♦
250µV Offset Voltage
reduces supply current to 38µA per amplifier and ♦ 1
120dB Voltage Gain (RL = 100k
Ω
)
places the outputs into a high-impedance state. The ♦
88dB Power-Supply Rejection Ratio
MAX4165–MAX4169’s precision performance com- bined with high output current, wide input/output ♦
No Phase Reversal for Overdriven Inputs
dynamic range, single-supply operation, and low power ♦
Unity-Gain Stable for Capacitive Loads to 250pF
consumption makes them ideal for portable audio ♦
Low-Power Shutdown Mode:
applications and other low-voltage, battery-powered
Reduces Supply Current to 38µA Places
systems. The MAX4165 is available in the space-saving
Outputs in High-Impedance State
5-pin SOT23 package and the MAX4166 is available in ♦
Available in 5-Pin SOT23 Package (MAX4165) or
a tiny 2mm x 2mm x 0.8mm µDFN package.
2mm x 2mm x 0.8mm µDFN (MAX4166) Selector Guide Ordering Information AMPS PER SHUTDOWN PART PACKAGE MODE PIN- TOP PART TEMP RANGE
MAX4165 Single —
PACKAGE MARK
MAX4166 Single Yes
MAX4165
EUK-T -40°C to +85°C 5 SOT23-5 AABY MAX4167 Dual —
MAX4166
EPA -40°C to +85°C 8 Plastic DIP — MAX4168 Dual Yes MAX4166ESA -40°C to +85°C 8 SO — MAX4169 Quad — MAX4166EUA -40°C to +85°C 8 µMAX — MAX4166ELA+T -40°C to +85°C 8 µDFN-8 AAG
Applications
+Denotes lead-free package.
Ordering Information continued on last page.
Portable/Battery-Powered Audio Applications Portable Headphone Speaker Drivers Laptop/Notebook Computers
Pin Configurations
Sound Ports/Cards TOP VIEW Set-Top Boxes Cell Phones Hands-Free Car Phones (kits) OUT 1 5 VCC Signal Conditioning MAX4165 Digital-to-Analog Converter Buffers VEE 2 Transformer/Line Drivers Motor Drivers IN+ 3 4 IN-
Typical Operating Circuit appears at end of data sheet. SOT23-5
Pin Configurations continued at end of data sheet.
