Datasheet MAX4165, MAX4166, MAX4167, MAX4168, MAX4169 (Analog Devices) - 8
| Manufacturer | Analog Devices |
| Description | High-Output-Drive, Precision, Low-Power, Single-Supply, Rail-to-Rail I/O Op Amps with Shutdown |
| Pages / Page | 17 / 8 — High-Output-Drive, Precision, Low-Power, Single- Supply, Rail-to-Rail I/O … |
| File Format / Size | PDF / 1.2 Mb |
| Document Language | English |
High-Output-Drive, Precision, Low-Power, Single- Supply, Rail-to-Rail I/O Op Amps with Shutdown. Pin Description. PIN
Model Line for this Datasheet
Text Version of Document

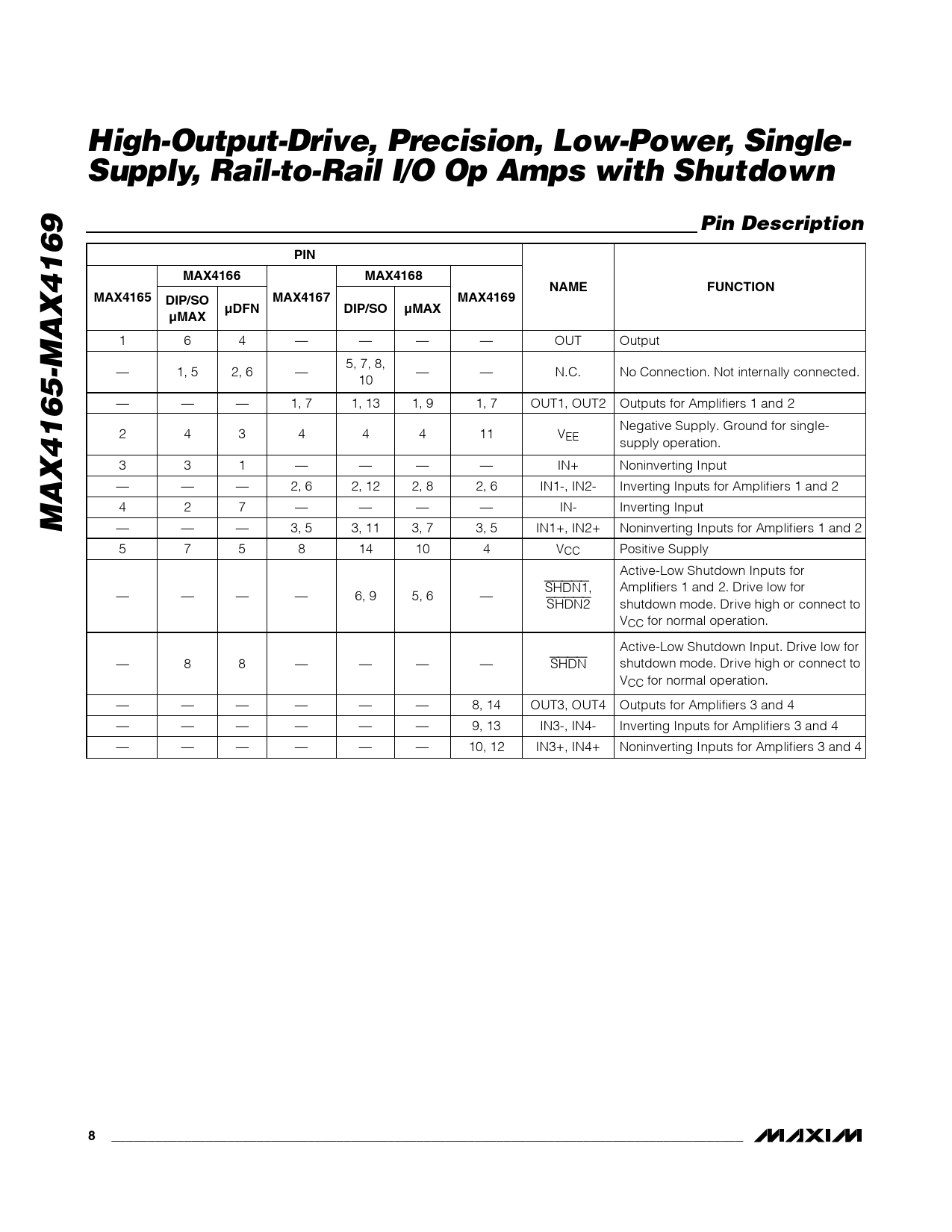

High-Output-Drive, Precision, Low-Power, Single- Supply, Rail-to-Rail I/O Op Amps with Shutdown Pin Description PIN MAX4166 MAX4168 NAME FUNCTION MAX4165 DIP/SO MAX4167 MAX4169 DIP/SO (MAX (MAX (DFN
1 6 4 — — — — OUT Output 5, 7, 8, — 1, 5 2, 6 — — — N.C. No Connection. Not internal y connected. 10 — — — 1, 7 1, 13 1, 9 1, 7 OUT1, OUT2 Outputs for Amplifiers 1 and 2 Negative Supply. Ground for single- 2 4 3 4 4 4 11 VEE supply operation. 3 3 1 — — — — IN+ Noninverting Input — — — 2, 6 2, 12 2, 8 2, 6 IN1-, IN2- Inverting Inputs for Amplifiers 1 and 2 4 2 7 — — — — IN- Inverting Input
