Datasheet FGD4536 (ON Semiconductor) - 5
| Manufacturer | ON Semiconductor |
| Description | 360 V PDP Trench IGBT |
| Pages / Page | 9 / 5 — FGD4536. Typical Performance Characteristics. Figure 7. Saturation … |
| File Format / Size | PDF / 1.3 Mb |
| Document Language | English |

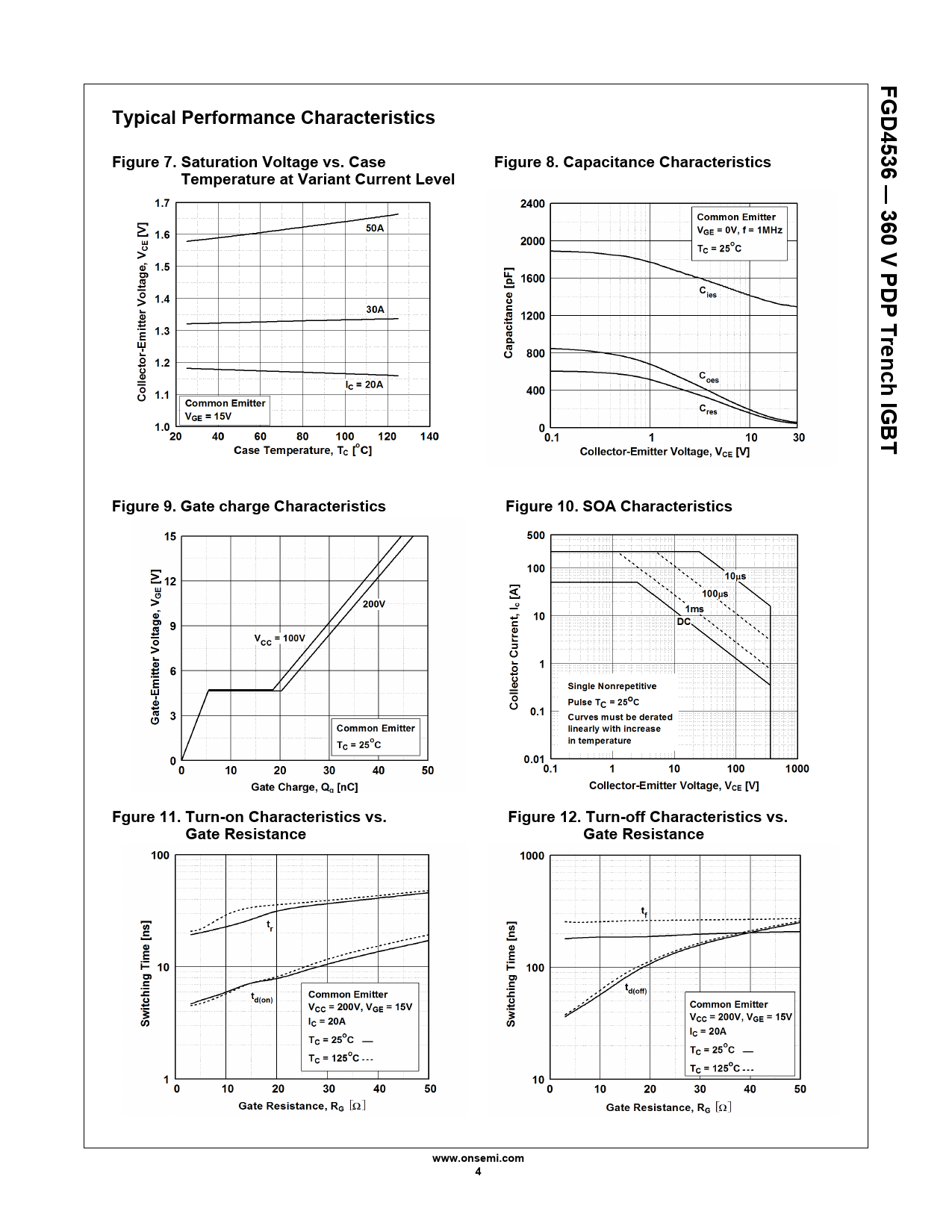

FGD4536. Typical Performance Characteristics. Figure 7. Saturation Voltage vs. Case. Figure 8. Capacitance Characteristics
Model Line for this Datasheet
Text Version of Document
FGD4536 Typical Performance Characteristics Figure 7. Saturation Voltage vs. Case Figure 8. Capacitance Characteristics Temperature at Variant Current Level — 360 V PDP Trench IGBT Figure 9. Gate charge Characteristics Figure 10. SOA Characteristics Fgure 11. Turn-on Characteristics vs. Figure 12. Turn-off Characteristics vs. Gate Resistance Gate Resistance www.onsemi.com 4
Document Outline FGD4536 360 V PDP Trench IGBT 360 V ± 30 V 220 A 125 W 50 W -55 to +150 oC -55 to +150 oC - 1.0 oC/W - 62.5 oC/W FGD4536 FGD4536TM TO252(D-PAK) 380 mm 16 mm - FGD4536 FGD4536TM_F065 TO252(D-PAK) 380 mm 16 mm - - - V - 100 mA - ±400 nA 3.3 4.0 V 1.19 - V 1295 - pF 56 - pF 43 - pF 5 - ns 20 - ns 41 - ns 182 - ns 5 - ns 21 - ns 43 - ns 249 - ns 47 - nC 5.4 - nC 15 - nC
Document Outline FGD4536 360 V PDP Trench IGBT 360 V ± 30 V 220 A 125 W 50 W -55 to +150 oC -55 to +150 oC - 1.0 oC/W - 62.5 oC/W FGD4536 FGD4536TM TO252(D-PAK) 380 mm 16 mm - FGD4536 FGD4536TM_F065 TO252(D-PAK) 380 mm 16 mm - - - V - 100 mA - ±400 nA 3.3 4.0 V 1.19 - V 1295 - pF 56 - pF 43 - pF 5 - ns 20 - ns 41 - ns 182 - ns 5 - ns 21 - ns 43 - ns 249 - ns 47 - nC 5.4 - nC 15 - nC
