Datasheet MP8765 (Monolithic Power Systems)
| Manufacturer | Monolithic Power Systems |
| Description | 24V, 6A High Efficiency Synchronous Step-down Converter |
| Pages / Page | 21 / 1 — MP8765. 24V, 6A High Efficiency. Synchronous Step-down Converter. The … |
| File Format / Size | PDF / 1.1 Mb |
| Document Language | English |

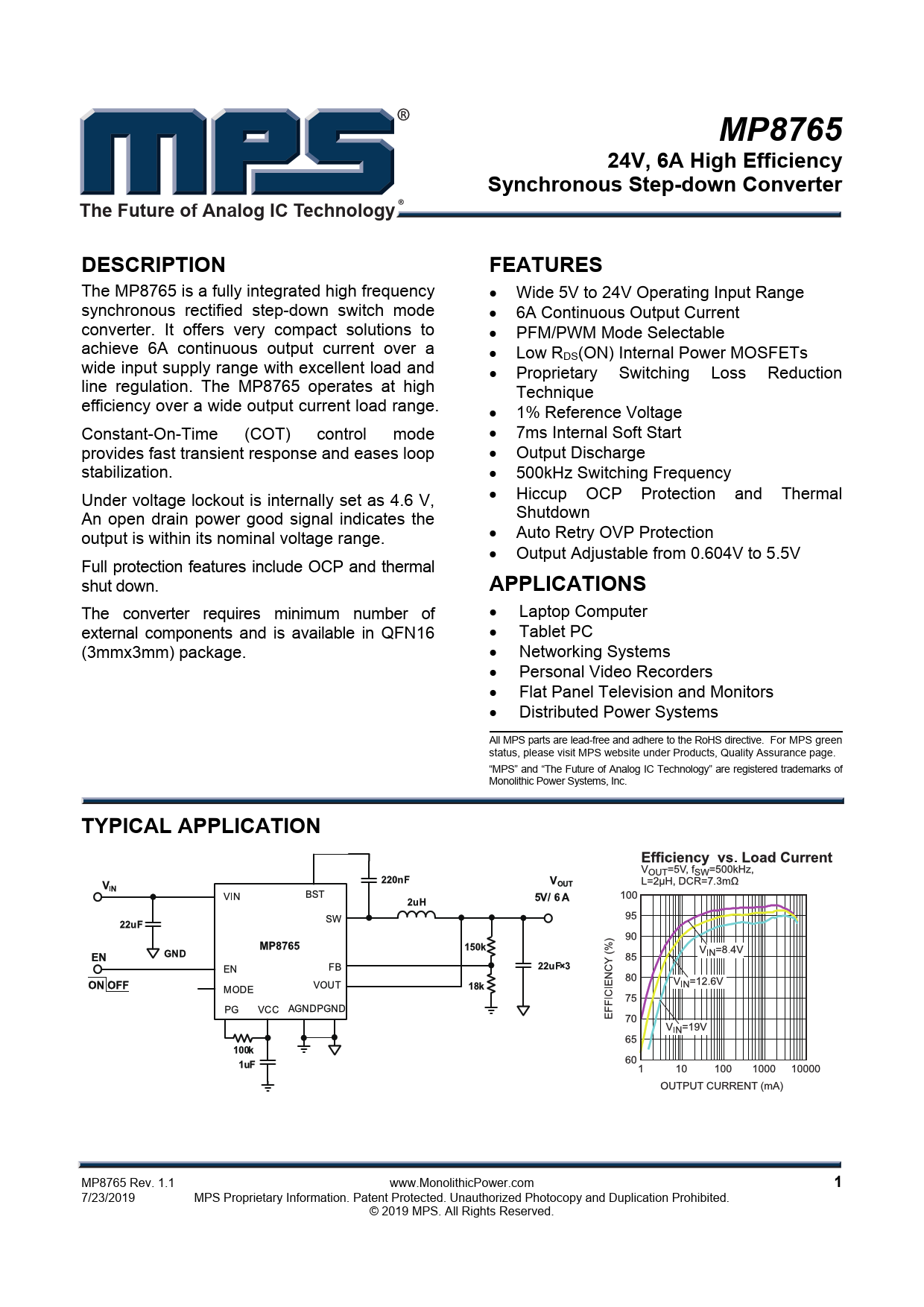

MP8765. 24V, 6A High Efficiency. Synchronous Step-down Converter. The Future of Analog IC Technology. DESCRIPTION. FEATURES
Model Line for this Datasheet
Text Version of Document
MP8765 24V, 6A High Efficiency Synchronous Step-down Converter The Future of Analog IC Technology DESCRIPTION FEATURES
The MP8765 is a fully integrated high frequency Wide 5V to 24V Operating Input Range synchronous rectified step-down switch mode 6A Continuous Output Current converter. It offers very compact solutions to PFM/PWM Mode Selectable achieve 6A continuous output current over a Low RDS(ON) Internal Power MOSFETs wide input supply range with excellent load and Proprietary Switching Loss Reduction line regulation. The MP8765 operates at high Technique efficiency over a wide output current load range. 1% Reference Voltage Constant-On-Time (COT) control mode 7ms Internal Soft Start provides fast transient response and eases loop Output Discharge stabilization. 500kHz Switching Frequency Under voltage lockout is internally set as 4.6 V, Hiccup OCP Protection and Thermal An open drain power good signal indicates the Shutdown output is within its nominal voltage range. Auto Retry OVP Protection Output Adjustable from 0.604V to 5.5V Full protection features include OCP and thermal shut down.
APPLICATIONS
The converter requires minimum number of Laptop Computer external components and is available in QFN16 Tablet PC (3mmx3mm) package. Networking Systems Personal Video Recorders Flat Panel Television and Monitors Distributed Power Systems Al MPS parts are lead-free and adhere to the RoHS directive. For MPS green status, please visit MPS website under Products, Quality Assurance page. “MPS” and “The Future of Analog IC Technology” are registered trademarks of Monolithic Power Systems, Inc.
TYPICAL APPLICATION
MP8765 Rev. 1.1 www.MonolithicPower.com
1
