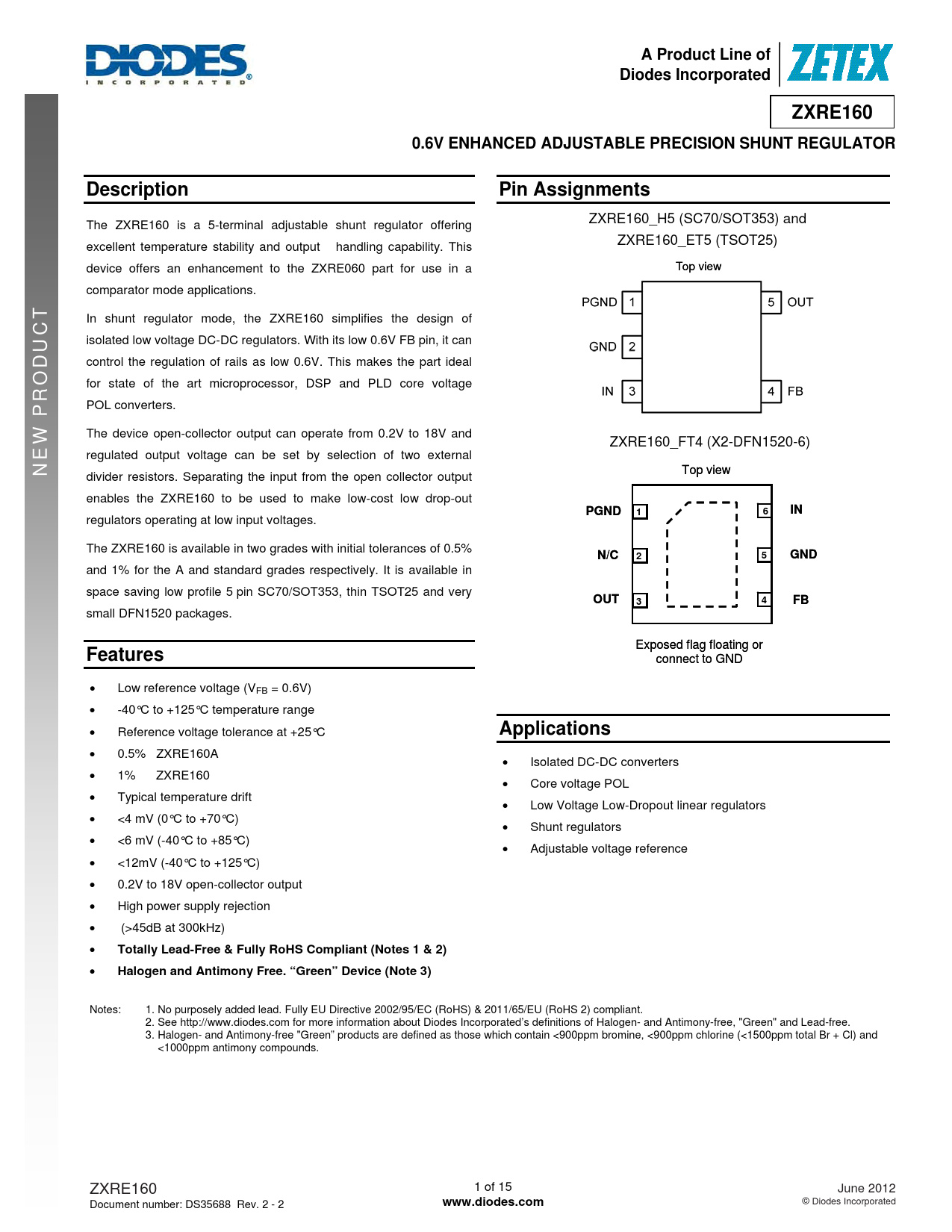

A Product Line of. Diodes Incorporated. ZXRE160. 0.6V ENHANCED ADJUSTABLE PRECISION SHUNT REGULATOR. Description. Pin Assignments
Model Line for this Datasheet
Text Version of Document
A Product Line of Diodes Incorporated ZXRE160 0.6V ENHANCED ADJUSTABLE PRECISION SHUNT REGULATOR Description Pin Assignments
ZXRE160_H5 (SC70/SOT353) and The ZXRE160 is a 5-terminal adjustable shunt regulator offering ZXRE160_ET5 (TSOT25) excellent temperature stability and output handling capability. This T device offers an enhancement to the ZXRE060 part for use in a op vi op v ew i comparator mode applications.
T
In shunt regulator mode, the ZXRE160 simplifies the design of
UC
isolated low voltage DC-DC regulators. With its low 0.6V FB pin, it can control the regulation of rails as low 0.6V. This makes the part ideal for state of the art microprocessor, DSP and PLD core voltage POL converters. The device open-collector output can operate from 0.2V to 18V and ZXRE160_FT4 (X2-DFN1520-6) regulated output voltage can be set by selection of two external
NEW PROD
Top v o i p v ew i divider resistors. Separating the input from the open collector output enables the ZXRE160 to be used to make low-cost low drop-out
PGND 1 6 IN
regulators operating at low input voltages. The ZXRE160 is available in two grades with initial tolerances of 0.5%
N/C N/ 2 5 GND GN
and 1% for the A and standard grades respectively. It is available in space saving low profile 5 pin SC70/SOT353, thin TSOT25 and very
OUT 3 4 FB
small DFN1520 packages. Expos Expo ed f e l ag a floa l t oa i t ng n or
Features
connect to t G ND N • Low reference voltage (VFB = 0.6V) • -40°C to +125°C temperature range • Reference voltage tolerance at +25°C
Applications
• 0.5% ZXRE160A • Isolated DC-DC converters • 1% ZXRE160 • Core voltage POL • Typical temperature drift • Low Voltage Low-Dropout linear regulators • <4 mV (0°C to +70°C) • Shunt regulators • <6 mV (-40°C to +85°C) • Adjustable voltage reference • <12mV (-40°C to +125°C) • 0.2V to 18V open-collector output • High power supply rejection • (>45dB at 300kHz) •
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. ZXRE160 1 of 15 June 2012 Document number: DS35688 Rev. 2 - 2
www.diodes.com
© Diodes Incorporated
