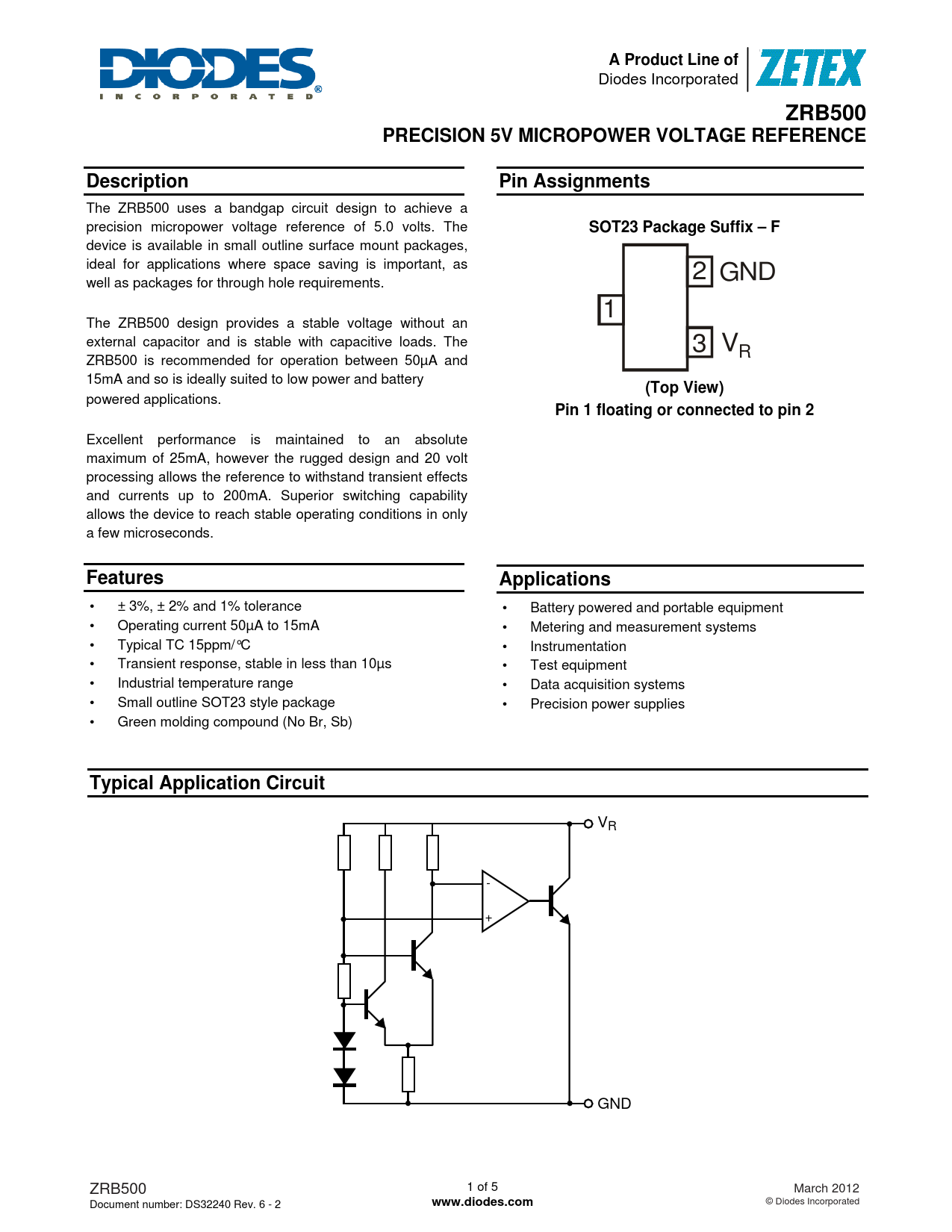

A Product Line of. ZRB500. PRECISION 5V MICROPOWER VOLTAGE REFERENCE. Description. Pin Assignments. SOT23 Package Suffix – F
Model Line for this Datasheet
Text Version of Document
A Product Line of
Diodes Incorporated
ZRB500 PRECISION 5V MICROPOWER VOLTAGE REFERENCE Description Pin Assignments
The ZRB500 uses a bandgap circuit design to achieve a precision micropower voltage reference of 5.0 volts. The
SOT23 Package Suffix – F
device is available in small outline surface mount packages, ideal for applications where space saving is important, as 2 GND well as packages for through hole requirements. 1 The ZRB500 design provides a stable voltage without an external capacitor and is stable with capacitive loads. The 3 VR ZRB500 is recommended for operation between 50µA and 15mA and so is ideally suited to low power and battery
(Top View)
powered applications.
Pin 1 floating or connected to pin 2
Excellent performance is maintained to an absolute maximum of 25mA, however the rugged design and 20 volt processing allows the reference to withstand transient effects and currents up to 200mA. Superior switching capability allows the device to reach stable operating conditions in only a few microseconds.
Features Applications
• ± 3%, ± 2% and 1% tolerance • Battery powered and portable equipment • Operating current 50µA to 15mA • Metering and measurement systems • Typical TC 15ppm/°C • Instrumentation • Transient response, stable in less than 10µs • Test equipment • Industrial temperature range • Data acquisition systems • Small outline SOT23 style package • Precision power supplies • Green molding compound (No Br, Sb)
Typical Application Circuit
VR - + GND ZRB500 1 of 5 March 2012 Document number: DS32240 Rev. 6 - 2
