Precision, Micropower, Low-Dropout, SC70. Series Voltage Reference. MAX6034
Model Line for this Datasheet
Text Version of Document

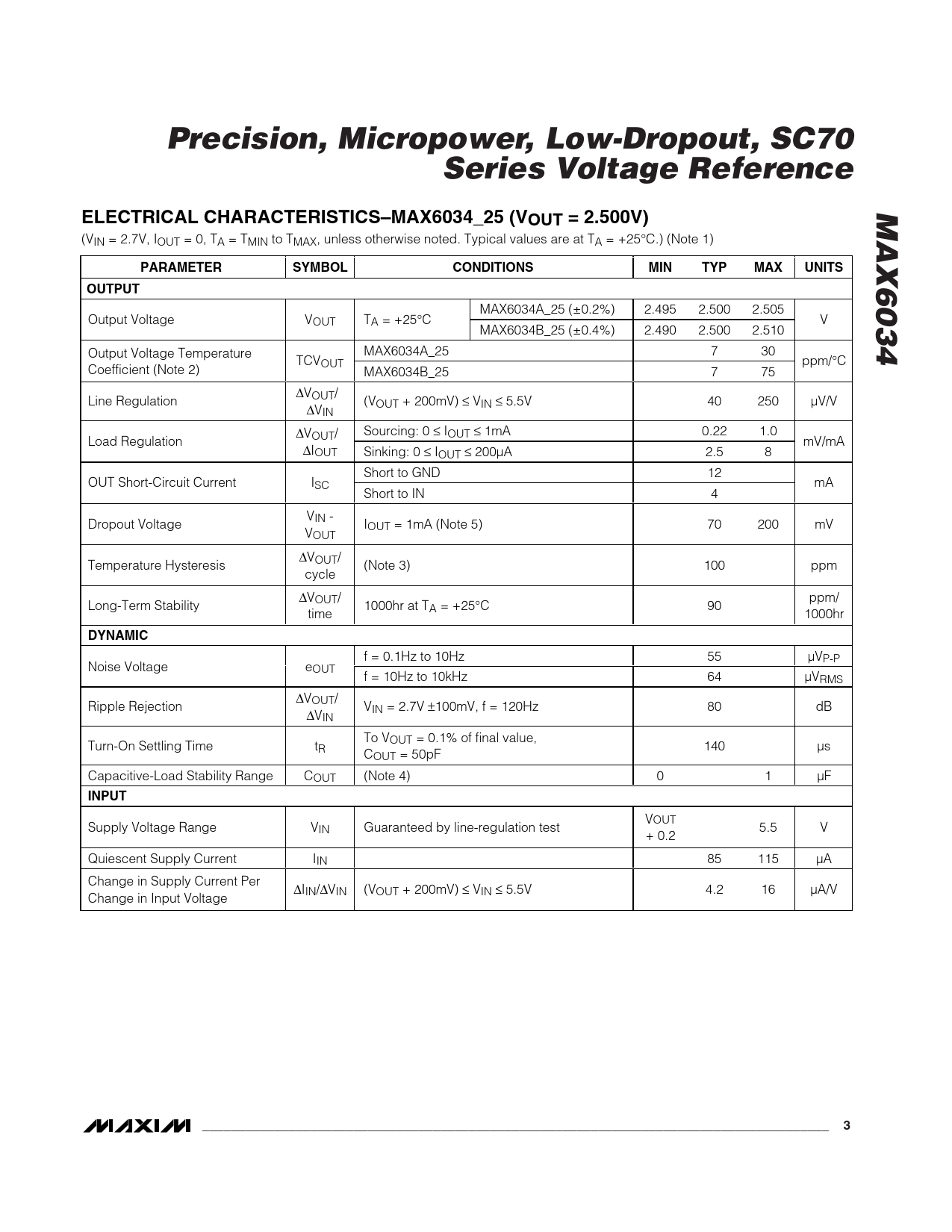

Precision, Micropower, Low-Dropout, SC70 Series Voltage Reference MAX6034 ELECTRICAL CHARACTERISTICS–MAX6034_25 (VOUT = 2.500V)
(VIN = 2.7V, IOUT = 0, TA = TMIN to TMAX, unless otherwise noted. Typical values are at TA = +25°C.) (Note 1)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS OUTPUT
MAX6034A_25 (±0.2%) 2.495 2.500 2.505 Output Voltage VOUT TA = +25°C V MAX6034B_25 (±0.4%) 2.490 2.500 2.510 Output Voltage Temperature MAX6034A_25 7 30 TCVOUT ppm/°C Coefficient (Note 2) MAX6034B_25 7 75 ∆VOUT/ Line Regulation ∆ (VOUT + 200mV) ≤ VIN ≤ 5.5V 40 250 µV/V VIN Sourcing: 0 ∆VOUT/ ≤ IOUT ≤ 1mA 0.22 1.0 Load Regulation ∆ mV/mA IOUT Sinking: 0 ≤ IOUT ≤ 200µA 2.5 8 Short to GND 12 OUT Short-Circuit Current ISC mA Short to IN 4 V Dropout Voltage IN - IOUT = 1mA (Note 5) 70 200 mV VOUT ∆V Temperature Hysteresis OUT/ (Note 3) 100 ppm cycle ∆VOUT/ ppm/ Long-Term Stability 1000hr at T time A = +25°C 90 1000hr
DYNAMIC
f = 0.1Hz to 10Hz 55 µVP-P Noise Voltage eOUT f = 10Hz to 10kHz 64 µVRMS ∆VOUT/ Ripple Rejection ∆ VIN = 2.7V ±100mV, f = 120Hz 80 dB VIN To VOUT = 0.1% of final value, Turn-On Settling Time tR 140 µs COUT = 50pF Capacitive-Load Stability Range COUT (Note 4) 0 1 µF
INPUT
VOUT Supply Voltage Range VIN Guaranteed by line-regulation test 5.5 V + 0.2 Quiescent Supply Current IIN 85 115 µA Change in Supply Current Per ∆IIN/∆VIN (VOUT + 200mV) ≤ VIN ≤ 5.5V 4.2 16 µA/V Change in Input Voltage
_______________________________________________________________________________________ 3
(VIN = 2.7V, IOUT = 0, TA = TMIN to TMAX, unless otherwise noted. Typical values are at TA = +25°C.) (Note 1)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS OUTPUT
MAX6034A_25 (±0.2%) 2.495 2.500 2.505 Output Voltage VOUT TA = +25°C V MAX6034B_25 (±0.4%) 2.490 2.500 2.510 Output Voltage Temperature MAX6034A_25 7 30 TCVOUT ppm/°C Coefficient (Note 2) MAX6034B_25 7 75 ∆VOUT/ Line Regulation ∆ (VOUT + 200mV) ≤ VIN ≤ 5.5V 40 250 µV/V VIN Sourcing: 0 ∆VOUT/ ≤ IOUT ≤ 1mA 0.22 1.0 Load Regulation ∆ mV/mA IOUT Sinking: 0 ≤ IOUT ≤ 200µA 2.5 8 Short to GND 12 OUT Short-Circuit Current ISC mA Short to IN 4 V Dropout Voltage IN - IOUT = 1mA (Note 5) 70 200 mV VOUT ∆V Temperature Hysteresis OUT/ (Note 3) 100 ppm cycle ∆VOUT/ ppm/ Long-Term Stability 1000hr at T time A = +25°C 90 1000hr
DYNAMIC
f = 0.1Hz to 10Hz 55 µVP-P Noise Voltage eOUT f = 10Hz to 10kHz 64 µVRMS ∆VOUT/ Ripple Rejection ∆ VIN = 2.7V ±100mV, f = 120Hz 80 dB VIN To VOUT = 0.1% of final value, Turn-On Settling Time tR 140 µs COUT = 50pF Capacitive-Load Stability Range COUT (Note 4) 0 1 µF
INPUT
VOUT Supply Voltage Range VIN Guaranteed by line-regulation test 5.5 V + 0.2 Quiescent Supply Current IIN 85 115 µA Change in Supply Current Per ∆IIN/∆VIN (VOUT + 200mV) ≤ VIN ≤ 5.5V 4.2 16 µA/V Change in Input Voltage
_______________________________________________________________________________________ 3
