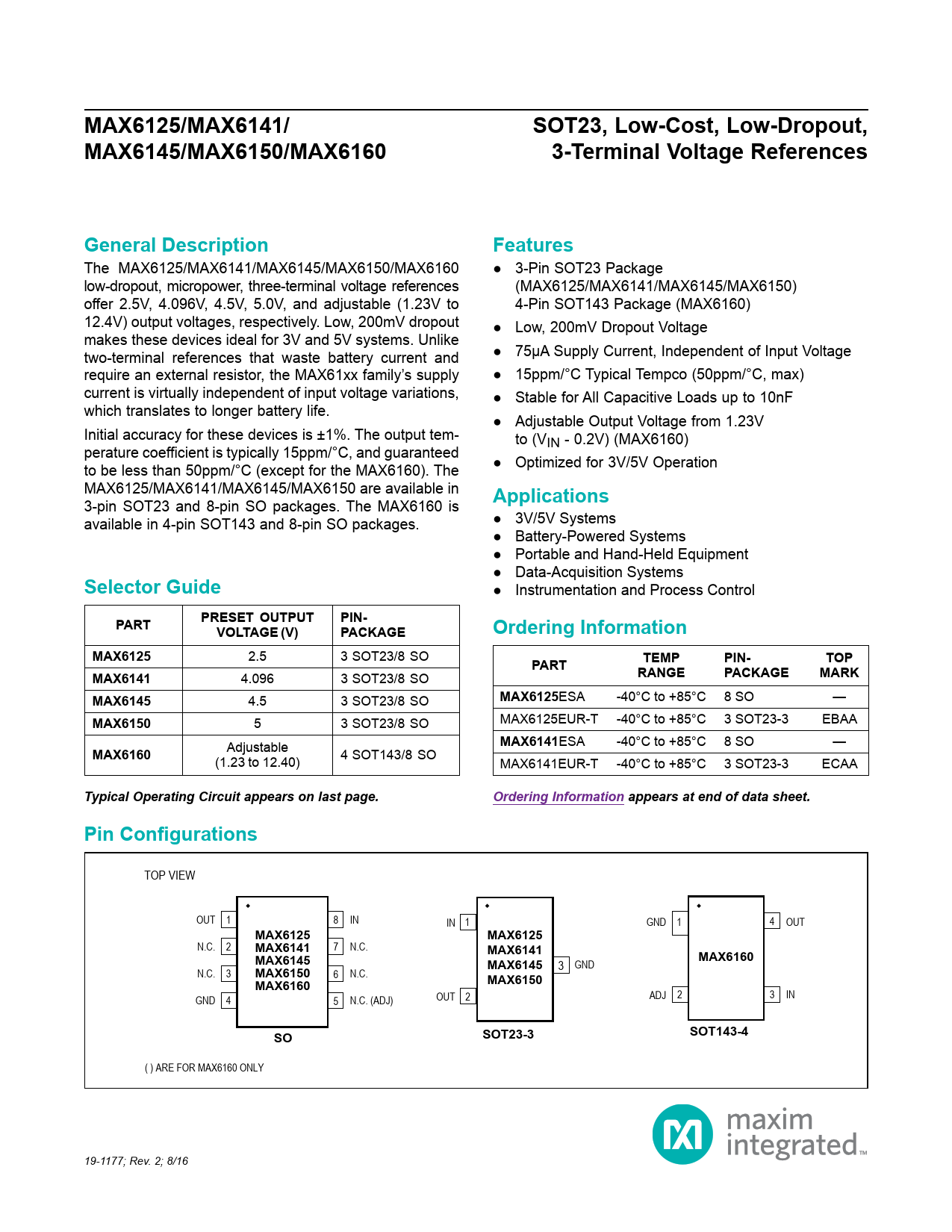

MAX6125/MAX6141/. SOT23, Low-Cost, Low-Dropout,. MAX6145/MAX6150/MAX6160. 3-Terminal Voltage References. General Description
Model Line for this Datasheet
Text Version of Document
link to page 9
MAX6125/MAX6141/ SOT23, Low-Cost, Low-Dropout, MAX6145/MAX6150/MAX6160 3-Terminal Voltage References General Description Features
The MAX6125/MAX6141/MAX6145/MAX6150/MAX6160 ● 3-Pin SOT23 Package low-dropout, micropower, three-terminal voltage references (MAX6125/MAX6141/MAX6145/MAX6150) offer 2.5V, 4.096V, 4.5V, 5.0V, and adjustable (1.23V to 4-Pin SOT143 Package (MAX6160) 12.4V) output voltages, respectively. Low, 200mV dropout ● Low, 200mV Dropout Voltage makes these devices ideal for 3V and 5V systems. Unlike two-terminal references that waste battery current and ● 75μA Supply Current, Independent of Input Voltage require an external resistor, the MAX61xx family’s supply ● 15ppm/°C Typical Tempco (50ppm/°C, max) current is virtually independent of input voltage variations, ● Stable for All Capacitive Loads up to 10nF which translates to longer battery life. ● Adjustable Output Voltage from 1.23V Initial accuracy for these devices is ±1%. The output tem- to (V perature coefficient is typically 15ppm/°C, and guaranteed IN - 0.2V) (MAX6160) to be less than 50ppm/°C (except for the MAX6160). The ● Optimized for 3V/5V Operation MAX6125/MAX6141/MAX6145/MAX6150 are available in
Applications
3-pin SOT23 and 8-pin SO packages. The MAX6160 is available in 4-pin SOT143 and 8-pin SO packages. ● 3V/5V Systems ● Battery-Powered Systems ● Portable and Hand-Held Equipment ● Data-Acquisition Systems
Selector Guide
● Instrumentation and Process Control
PART PRESET OUTPUT PIN- VOLTAGE (V) PACKAGE Ordering Information MAX6125
2.5 3 SOT23/8 SO
PART TEMP PIN- TOP MAX6141
4.096 3 SOT23/8 SO
RANGE PACKAGE MARK MAX6145
4.5 3 SOT23/8 SO
MAX6125
ESA -40°C to +85°C 8 SO —
MAX6150
5 3 SOT23/8 SO MAX6125EUR-T -40°C to +85°C 3 SOT23-3 EBAA
MAX6141
ESA -40°C to +85°C 8 SO —
MAX6160
Adjustable (1.23 to 12.40) 4 SOT143/8 SO MAX6141EUR-T -40°C to +85°C 3 SOT23-3 ECAA
Typical Operating Circuit appears on last page. Ordering Information appears at end of data sheet. Pin Configurations
TOP VIEW OUT 1 8 IN IN 1 GND 1 4 OUT
MAX6125 MAX6125
N.C. 2
MAX6141
7 N.C.
MAX6141 MAX6145 MAX6160 MAX6145
3 GND N.C. 3
MAX6150
6 N.C.
MAX6160 MAX6150
GND 4 5 N.C. (ADJ) OUT 2 ADJ 2 3 IN
SO SOT23-3 SOT143-4
( ) ARE FOR MAX6160 ONLY 19-1177; Rev. 2; 8/16
