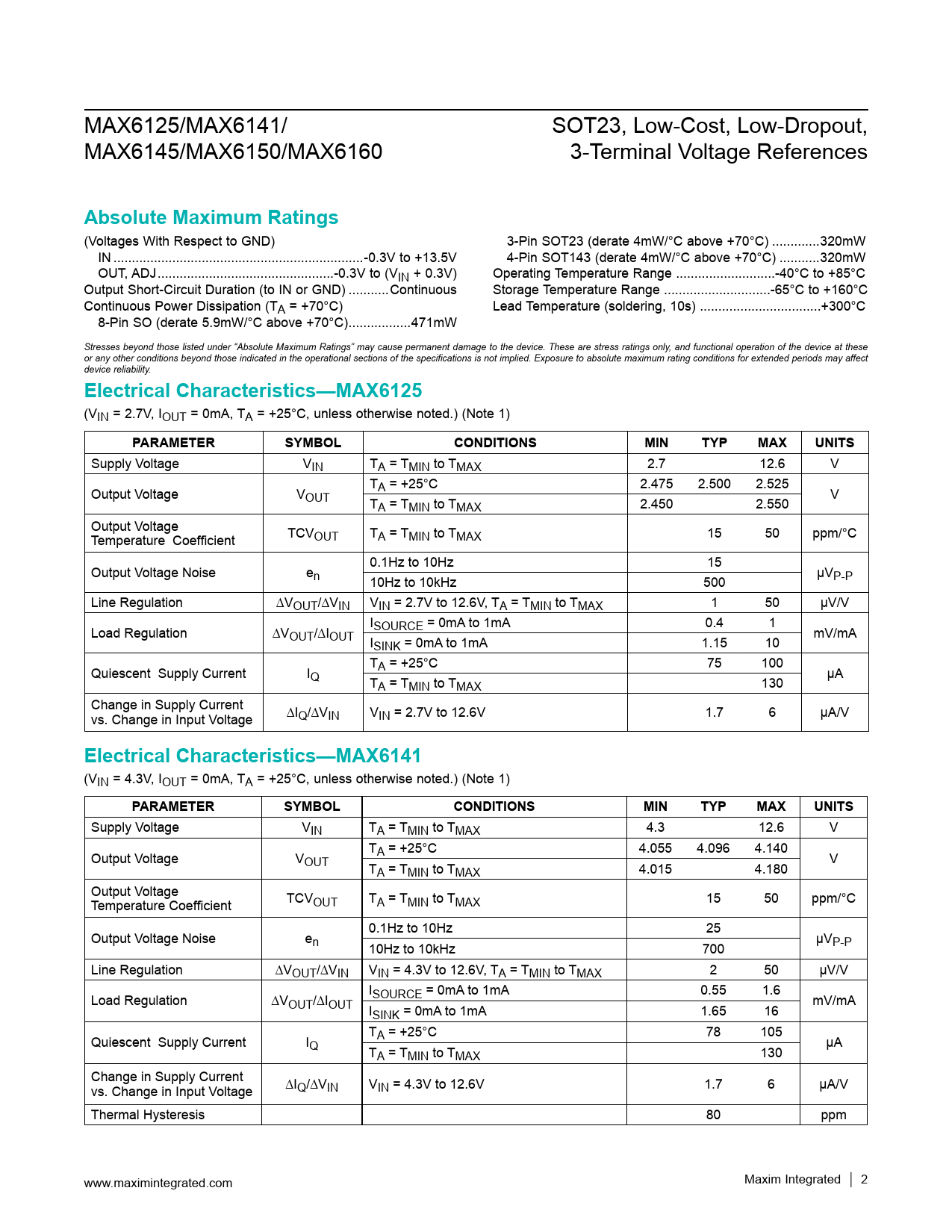

Absolute Maximum Ratings. Electrical Characteristics—MAX6125. PARAMETER. SYMBOL. CONDITIONS. MIN. TYP. MAX. UNITS
Model Line for this Datasheet
Text Version of Document
MAX6125/MAX6141/ SOT23, Low-Cost, Low-Dropout, MAX6145/MAX6150/MAX6160 3-Terminal Voltage References
Absolute Maximum Ratings
(Voltages With Respect to GND) 3-Pin SOT23 (derate 4mW/°C above +70°C) ...320mW IN ..-0.3V to +13.5V 4-Pin SOT143 (derate 4mW/°C above +70°C) ...320mW OUT, ADJ ..-0.3V to (VIN + 0.3V) Operating Temperature Range ...-40°C to +85°C Output Short-Circuit Duration (to IN or GND) ...Continuous Storage Temperature Range ...-65°C to +160°C Continuous Power Dissipation (TA = +70°C) Lead Temperature (soldering, 10s) ...+300°C 8-Pin SO (derate 5.9mW/°C above +70°C) ...471mW Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
Electrical Characteristics—MAX6125
(VIN = 2.7V, IOUT = 0mA, TA = +25°C, unless otherwise noted.) (Note 1)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
Supply Voltage VIN TA = TMIN to TMAX 2.7 12.6 V T Output Voltage V A = +25°C 2.475 2.500 2.525 OUT V TA = TMIN to TMAX 2.450 2.550 Output Voltage Temperature Coefficient TCVOUT TA = TMIN to TMAX 15 50 ppm/°C 0.1Hz to 10Hz 15 Output Voltage Noise en µVP-P 10Hz to 10kHz 500 Line Regulation ∆VOUT/∆VIN VIN = 2.7V to 12.6V, TA = TMIN to TMAX 1 50 µV/V I Load Regulation ∆V SOURCE = 0mA to 1mA 0.4 1 OUT/∆IOUT mV/mA ISINK = 0mA to 1mA 1.15 10 T Quiescent Supply Current I A = +25°C 75 100 Q µA TA = TMIN to TMAX 130 Change in Supply Current vs. Change in Input Voltage ∆IQ/∆VIN VIN = 2.7V to 12.6V 1.7 6 µA/V
Electrical Characteristics—MAX6141
(VIN = 4.3V, IOUT = 0mA, TA = +25°C, unless otherwise noted.) (Note 1)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
Supply Voltage VIN TA = TMIN to TMAX 4.3 12.6 V T Output Voltage V A = +25°C 4.055 4.096 4.140 OUT V TA = TMIN to TMAX 4.015 4.180 Output Voltage Temperature Coefficient TCVOUT TA = TMIN to TMAX 15 50 ppm/°C 0.1Hz to 10Hz 25 Output Voltage Noise en µVP-P 10Hz to 10kHz 700 Line Regulation ∆VOUT/∆VIN VIN = 4.3V to 12.6V, TA = TMIN to TMAX 2 50 µV/V I Load Regulation ∆V SOURCE = 0mA to 1mA 0.55 1.6 OUT/∆IOUT mV/mA ISINK = 0mA to 1mA 1.65 16 T Quiescent Supply Current I A = +25°C 78 105 Q µA TA = TMIN to TMAX 130 Change in Supply Current vs. Change in Input Voltage ∆IQ/∆VIN VIN = 4.3V to 12.6V 1.7 6 µA/V Thermal Hysteresis 80 ppm www.maximintegrated.com Maxim Integrated │ 2
