WeEn Semiconductors. BTA206X-800ET. 3Q Hi-Com Triac. 8. Limiting values Table 5. Limiting values. Symbol Parameter. Conditions. Min
Model Line for this Datasheet
Text Version of Document

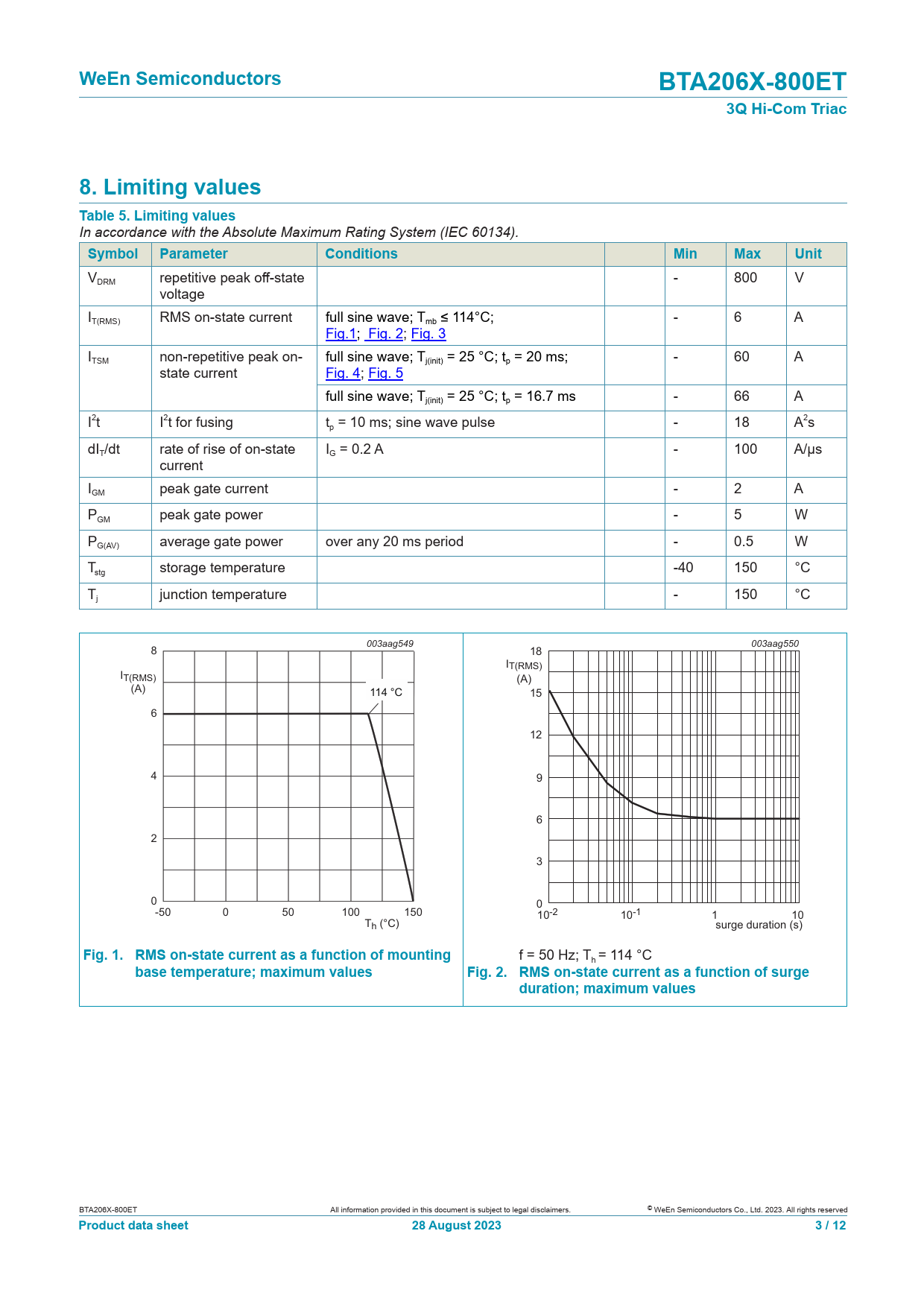

WeEn Semiconductors BTA206X-800ET 3Q Hi-Com Triac 8. Limiting values Table 5. Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol Parameter Conditions Min Max Unit
VDRM repetitive peak off-state - 800 V voltage IT(RMS) RMS on-state current full sine wave; Tmb ≤ 114°C; - 6 A Fig.1; Fig. 2; Fig. 3 ITSM non-repetitive peak on- full sine wave; Tj(init) = 25 °C; tp = 20 ms; - 60 A state current Fig. 4; Fig. 5 full sine wave; Tj(init) = 25 °C; tp = 16.7 ms - 66 A I2t I2t for fusing tp = 10 ms; sine wave pulse - 18 A2s dIT/dt rate of rise of on-state IG = 0.2 A - 100 A/μs current IGM peak gate current - 2 A PGM peak gate power - 5 W PG(AV) average gate power over any 20 ms period - 0.5 W Tstg storage temperature -40 150 °C Tj junction temperature - 150 °C 003aag549 8 003aag550 18 IT(RMS) IT(RMS) (A) (A) 114 °C 15 6 12 4 9 6 2 3 0 0 -50 0 50 100 150 10-2 10-1 1 10 Th (°C) surge duration (s)
Fig. 1. RMS on-state current as a function of mounting
f = 50 Hz; Th = 114 °C
base temperature; maximum values Fig. 2. RMS on-state current as a function of surge duration; maximum values
