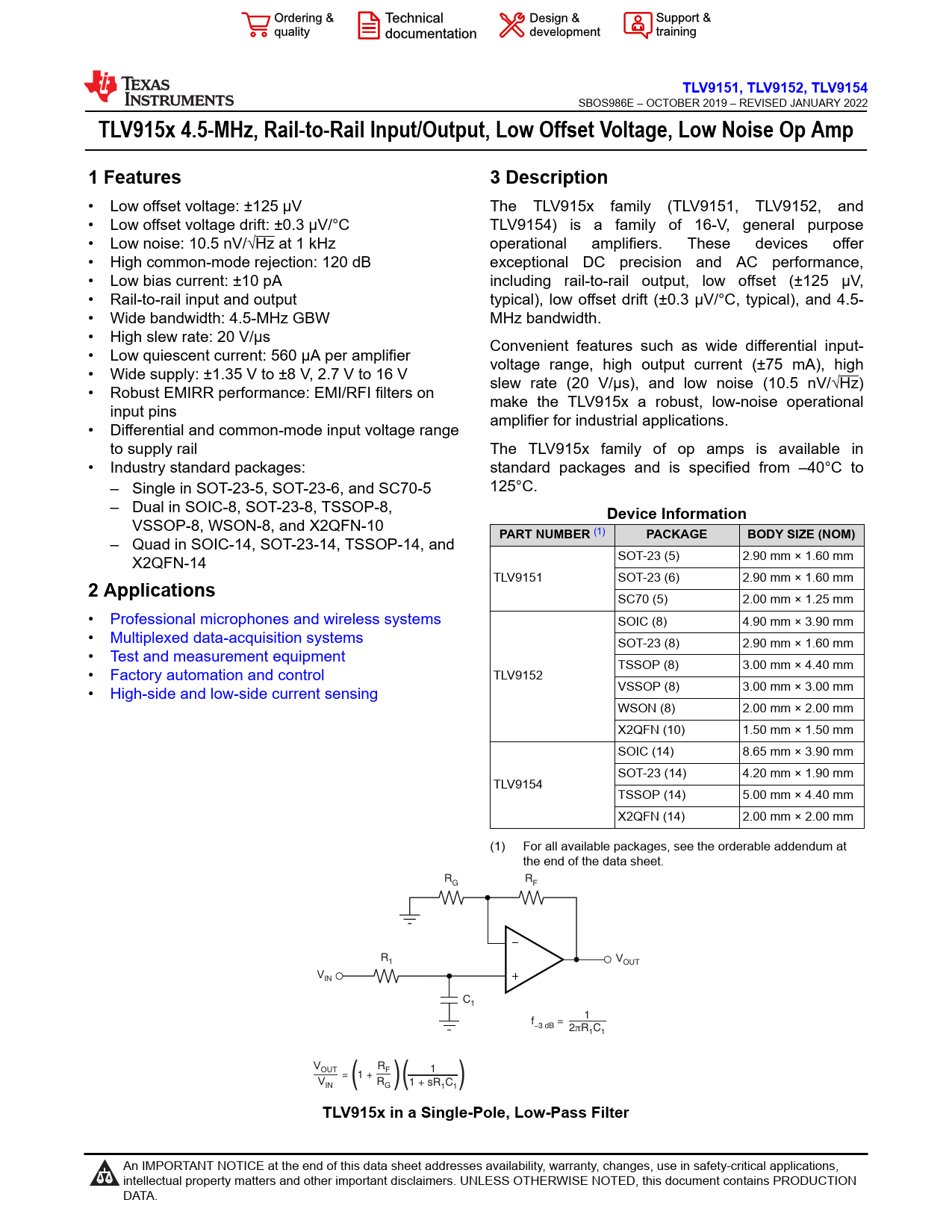

TLV9151,. TLV9152,. TLV9154. TLV915x 4.5-MHz, Rail-to-Rail Input/Output, Low Offset Voltage, Low Noise Op Amp. 1 Features
Model Line for this Datasheet
Text Version of Document
link to page 1
TLV9151, TLV9152, TLV9154
SBOS986E – OCTOBER 2019 – REVISED JANUARY 2022
TLV915x 4.5-MHz, Rail-to-Rail Input/Output, Low Offset Voltage, Low Noise Op Amp 1 Features 3 Description
• Low offset voltage: ±125 µV The TLV915x family (TLV9151, TLV9152, and • Low offset voltage drift: ±0.3 µV/°C TLV9154) is a family of 16-V, general purpose • Low noise: 10.5 nV/√Hz at 1 kHz operational amplifiers. These devices offer • High common-mode rejection: 120 dB exceptional DC precision and AC performance, • Low bias current: ±10 pA including rail-to-rail output, low offset (±125 µV, • Rail-to-rail input and output typical), low offset drift (±0.3 µV/°C, typical), and 4.5- • Wide bandwidth: 4.5-MHz GBW MHz bandwidth. • High slew rate: 20 V/µs Convenient features such as wide differential input- • Low quiescent current: 560 µA per amplifier voltage range, high output current (±75 mA), high • Wide supply: ±1.35 V to ±8 V, 2.7 V to 16 V slew rate (20 V/μs), and low noise (10.5 nV/√Hz) • Robust EMIRR performance: EMI/RFI filters on make the TLV915x a robust, low-noise operational input pins amplifier for industrial applications. • Differential and common-mode input voltage range to supply rail The TLV915x family of op amps is available in • Industry standard packages: standard packages and is specified from –40°C to – Single in SOT-23-5, SOT-23-6, and SC70-5 125°C. – Dual in SOIC-8, SOT-23-8, TSSOP-8,
Device Information
VSSOP-8, WSON-8, and X2QFN-10
PART NUMBER
(1)
PACKAGE BODY SIZE (NOM)
– Quad in SOIC-14, SOT-23-14, TSSOP-14, and X2QFN-14 SOT-23 (5) 2.90 mm × 1.60 mm TLV9151 SOT-23 (6) 2.90 mm × 1.60 mm
2 Applications
SC70 (5) 2.00 mm × 1.25 mm • Professional microphones and wireless systems SOIC (8) 4.90 mm × 3.90 mm • Multiplexed data-acquisition systems SOT-23 (8) 2.90 mm × 1.60 mm • Test and measurement equipment TSSOP (8) 3.00 mm × 4.40 mm • Factory automation and control TLV9152 • High-side and low-side current sensing VSSOP (8) 3.00 mm × 3.00 mm WSON (8) 2.00 mm × 2.00 mm X2QFN (10) 1.50 mm × 1.50 mm SOIC (14) 8.65 mm × 3.90 mm SOT-23 (14) 4.20 mm × 1.90 mm TLV9154 TSSOP (14) 5.00 mm × 4.40 mm X2QFN (14) 2.00 mm × 2.00 mm (1) For all available packages, see the orderable addendum at the end of the data sheet. R R G F R1 VOUT VIN C1 1 f = -3 dB 2pR C 1 1 V R OUT F 1 = 1 + ( V R IN G 1 + sR C 1 1
TLV915x in a Single-Pole, Low-Pass Filter
