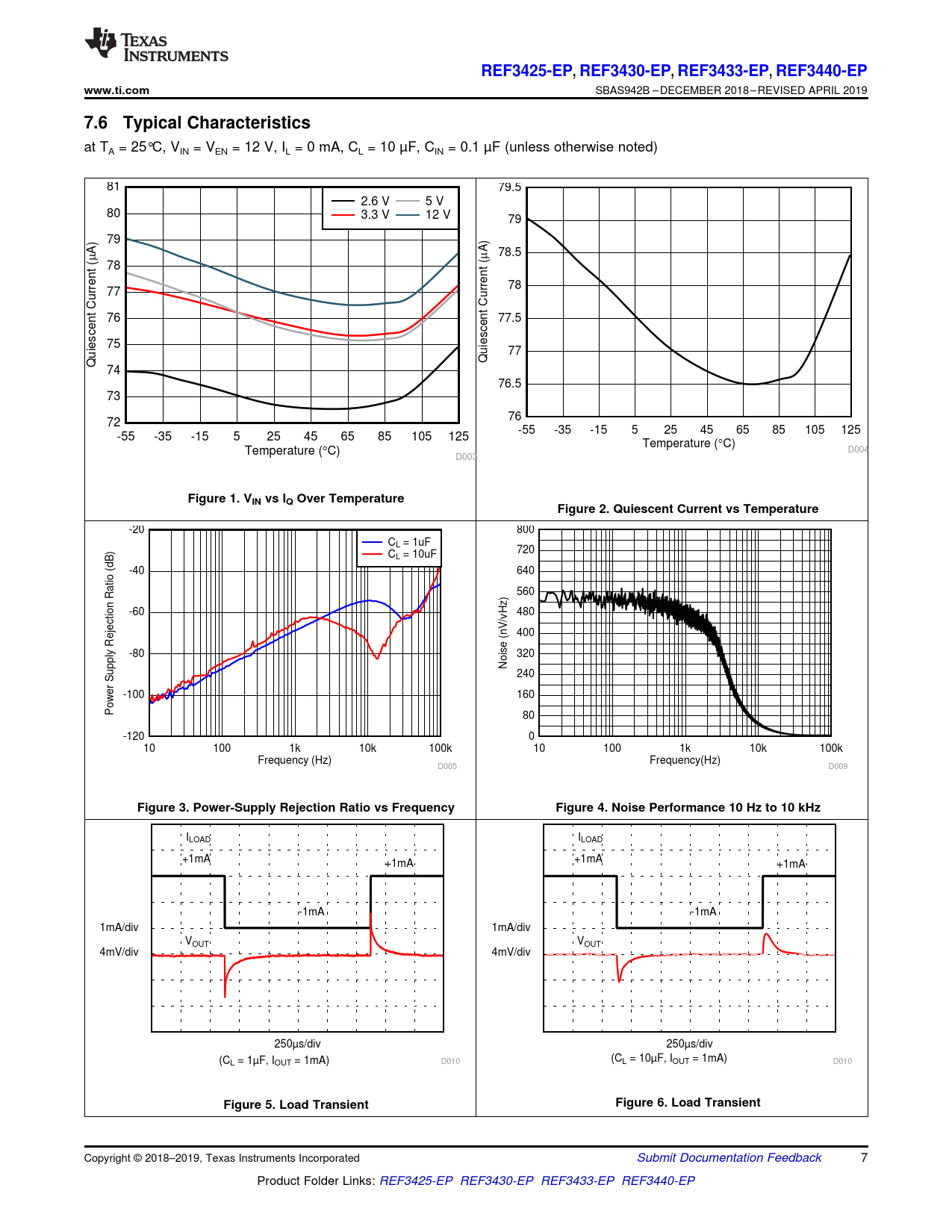

REF3425-EP. , REF3430-EP,. REF3433-EP,. REF3440-EP. www.ti.com. 7.6 Typical Characteristics. Figure 1. VIN vs IQ Over Temperature
Model Line for this Datasheet
Text Version of Document
REF3425-EP , REF3430-EP, REF3433-EP, REF3440-EP www.ti.com
SBAS942B – DECEMBER 2018 – REVISED APRIL 2019
7.6 Typical Characteristics
at TA = 25°C, VIN = VEN = 12 V, IL = 0 mA, CL = 10 µF, CIN = 0.1 µF (unless otherwise noted) 81 79.5 2.6 V 5 V 80 3.3 V 12 V 79 ) 79 ) A A P P 78.5 t ( 78 t ( en en 78 urr 77 urr 76 77.5 ent C ent C c c 75 77 Quies Quies 74 76.5 73 76 72 -55 -35 -15 5 25 45 65 85 105 125 -55 -35 -15 5 25 45 65 85 105 125 Temperature (qC) Temperature (qC) D004 D003
Figure 1. VIN vs IQ Over Temperature Figure 2. Quiescent Current vs Temperature
-20 800 CL = 1uF C 720 L = 10uF (dB) -40 640 tio a R 560 z) H tion -60 480 ec ej (nV/v 400 R -80 se oi 320 N upply S 240 er -100 160 ow P 80 -120 0 10 100 1k 10k 100k 10 100 1k 10k 100k Frequency (Hz) Frequency(Hz) D005 D009
Figure 3. Power-Supply Rejection Ratio vs Frequency Figure 4. Noise Performance 10 Hz to 10 kHz
ILOAD ILOAD +1mA +1mA +1mA +1mA -1mA -1mA 1mA/div 1mA/div VOUT VOUT 4mV/div 4mV/div 250µs/div 250µs/div (C (C L = 1µF, IOUT = 1mA) D010 L = 10µF, IOUT = 1mA) D010
Figure 5. Load Transient Figure 6. Load Transient
