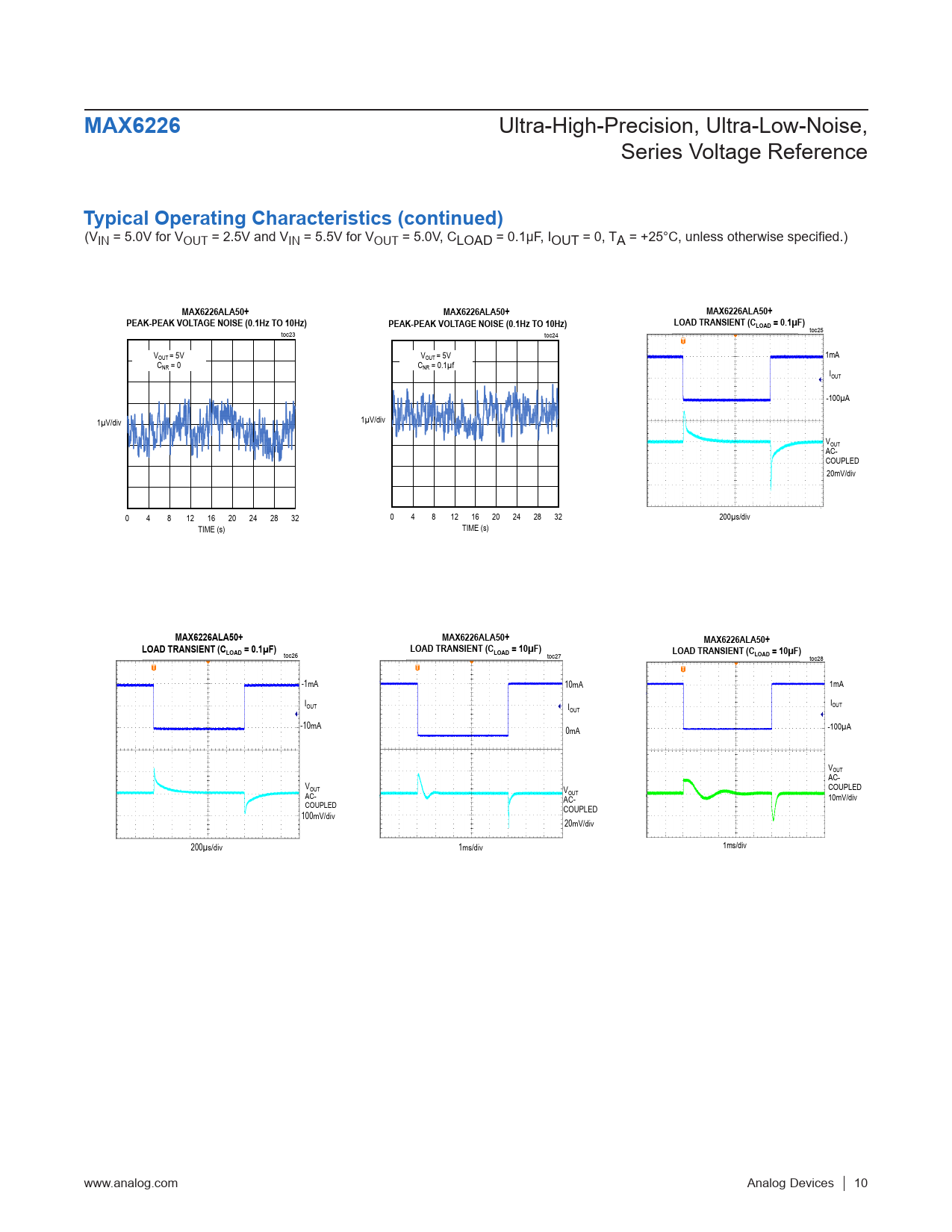

MAX6226. Typical Operating Characteristics (continued). MAX6226ALA50+. PEAK-PEAK VOLTAGE NOISE (0.1Hz TO 10Hz)
Model Line for this Datasheet
Text Version of Document
MAX6226
Ultra-High-Precision, Ultra-Low-Noise, Series Voltage Reference
Typical Operating Characteristics (continued)
(VIN = 5.0V for VOUT = 2.5V and VIN = 5.5V for VOUT = 5.0V, CLOAD = 0.1μF, IOUT = 0, TA = +25°C, unless otherwise specified.)
MAX6226ALA50+ MAX6226ALA50+ MAX6226ALA50+ PEAK-PEAK VOLTAGE NOISE (0.1Hz TO 10Hz) PEAK-PEAK VOLTAGE NOISE (0.1Hz TO 10Hz) LOAD TRANSIENT (CLOAD = 0.1µF)
toc25 toc23 toc24 VOUT = 5V VOUT = 5V 1mA CNR = 0 CNR = 0.1µf IOUT -100µA 1μV/div 1μV/div VOUT AC- COUPLED 20mV/div 0 4 8 12 16 20 24 28 32 0 4 8 12 16 20 24 28 32 200μs/div TIME (s) TIME (s)
MAX6226ALA50+ MAX6226ALA50+ MAX6226ALA50+ LOAD TRANSIENT (C LOAD TRANSIENT (C LOAD = 0.1µF) LOAD = 10µF) LOAD TRANSIENT (C
toc26 toc27
LOAD = 10µF)
toc28 -1mA 10mA 1mA IOUT I IOUT OUT -10mA 0mA -100µA VOUT AC- VOUT V COUPLED OUT AC- AC- 10mV/div COUPLED COUPLED 100mV/div 20mV/div 200μs/div 1ms/div 1ms/div www.analog.com Analog Devices │ 10
