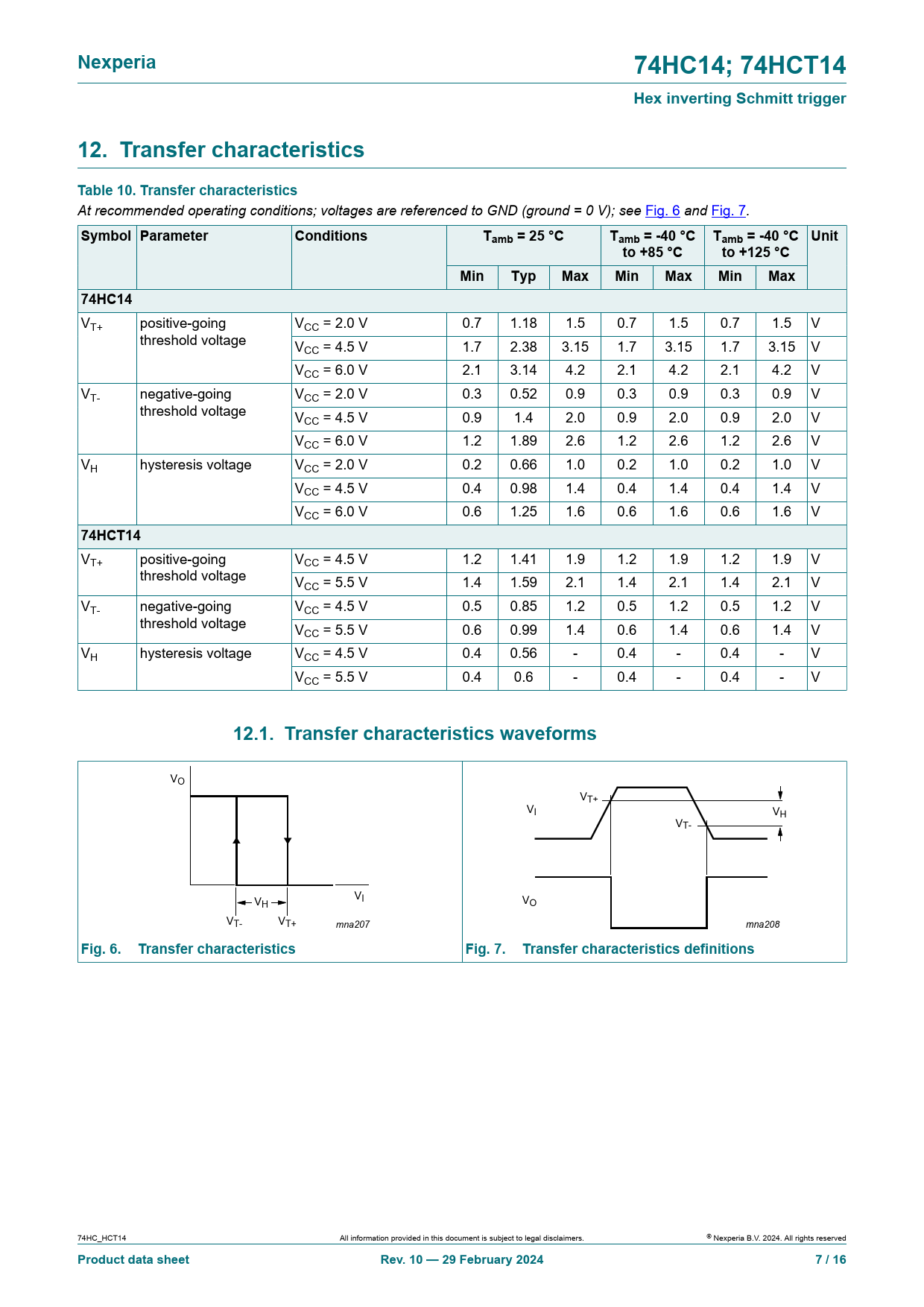

Nexperia. 74HC14; 74HCT14 Hex inverting Schmitt trigger. 12. Transfer characteristics Table 10. Transfer characteristics
Model Line for this Datasheet
Text Version of Document
link to page 7 link to page 7
Nexperia 74HC14; 74HCT14 Hex inverting Schmitt trigger 12. Transfer characteristics Table 10. Transfer characteristics
At recommended operating conditions; voltages are referenced to GND (ground = 0 V); see Fig. 6 and Fig. 7.
Symbol Parameter Conditions Tamb = 25 °C Tamb = -40 °C Tamb = -40 °C Unit to +85 °C to +125 °C Min Typ Max Min Max Min Max 74HC14
VT+ positive-going VCC = 2.0 V 0.7 1.18 1.5 0.7 1.5 0.7 1.5 V threshold voltage VCC = 4.5 V 1.7 2.38 3.15 1.7 3.15 1.7 3.15 V VCC = 6.0 V 2.1 3.14 4.2 2.1 4.2 2.1 4.2 V VT- negative-going VCC = 2.0 V 0.3 0.52 0.9 0.3 0.9 0.3 0.9 V threshold voltage VCC = 4.5 V 0.9 1.4 2.0 0.9 2.0 0.9 2.0 V VCC = 6.0 V 1.2 1.89 2.6 1.2 2.6 1.2 2.6 V VH hysteresis voltage VCC = 2.0 V 0.2 0.66 1.0 0.2 1.0 0.2 1.0 V VCC = 4.5 V 0.4 0.98 1.4 0.4 1.4 0.4 1.4 V VCC = 6.0 V 0.6 1.25 1.6 0.6 1.6 0.6 1.6 V
74HCT14
VT+ positive-going VCC = 4.5 V 1.2 1.41 1.9 1.2 1.9 1.2 1.9 V threshold voltage VCC = 5.5 V 1.4 1.59 2.1 1.4 2.1 1.4 2.1 V VT- negative-going VCC = 4.5 V 0.5 0.85 1.2 0.5 1.2 0.5 1.2 V threshold voltage VCC = 5.5 V 0.6 0.99 1.4 0.6 1.4 0.6 1.4 V VH hysteresis voltage VCC = 4.5 V 0.4 0.56 - 0.4 - 0.4 - V VCC = 5.5 V 0.4 0.6 - 0.4 - 0.4 - V
12.1. Transfer characteristics waveforms
VO VT+ VI VH VT- VI VH VO VT- VT+ mna207 mna208
Fig. 6. Transfer characteristics Fig. 7. Transfer characteristics definitions
