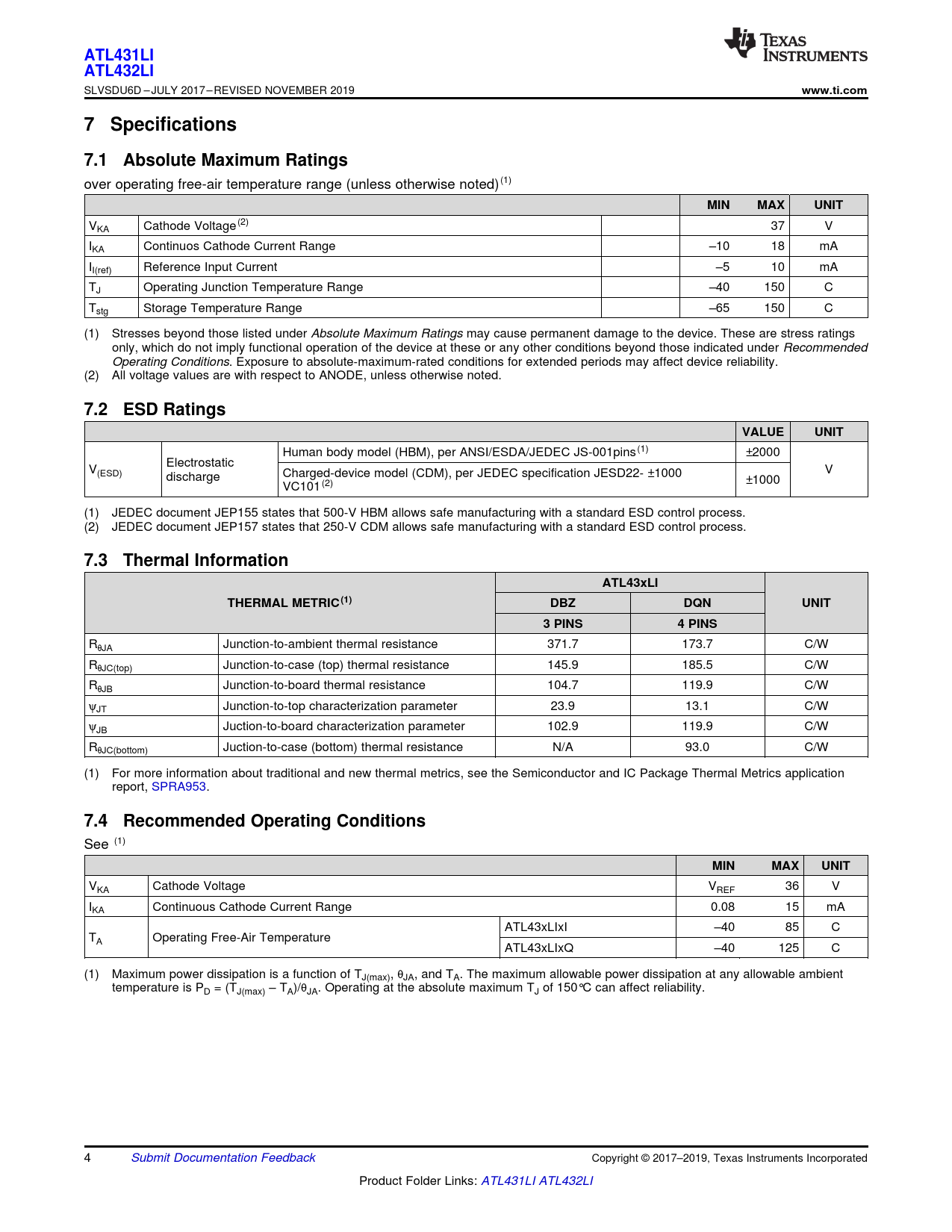

ATL431LI. ATL432LI. www.ti.com. 7 Specifications. 7.1 Absolute Maximum Ratings. MIN. MAX. UNIT. 7.2 ESD Ratings. VALUE
Text Version of Document
ATL431LI ATL432LI
SLVSDU6D – JULY 2017 – REVISED NOVEMBER 2019
www.ti.com 7 Specifications 7.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted)(1)
MIN MAX UNIT
VKA Cathode Voltage(2) 37 V IKA Continuos Cathode Current Range –10 18 mA II(ref) Reference Input Current –5 10 mA TJ Operating Junction Temperature Range –40 150 C Tstg Storage Temperature Range –65 150 C (1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. (2) All voltage values are with respect to ANODE, unless otherwise noted.
7.2 ESD Ratings VALUE UNIT
Human body model (HBM), per ANSI/ESDA/JEDEC JS-001pins(1) ±2000 Electrostatic V(ESD) V discharge Charged-device model (CDM), per JEDEC specification JESD22- ±1000 VC101(2) ±1000 (1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process. (2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
7.3 Thermal Information ATL43xLI THERMAL METRIC(1) DBZ DQN UNIT 3 PINS 4 PINS
RθJA Junction-to-ambient thermal resistance 371.7 173.7 C/W RθJC(top) Junction-to-case (top) thermal resistance 145.9 185.5 C/W RθJB Junction-to-board thermal resistance 104.7 119.9 C/W ψJT Junction-to-top characterization parameter 23.9 13.1 C/W ψJB Juction-to-board characterization parameter 102.9 119.9 C/W RθJC(bottom) Juction-to-case (bottom) thermal resistance N/A 93.0 C/W (1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report, SPRA953.
