TS432. APPLICATION EXAMPLE (CONTINUE0. Figure 9: Constant Current Source. Figure 8: Series Pass Regulator
Model Line for this Datasheet
Text Version of Document
TS432
Taiwan Semiconductor

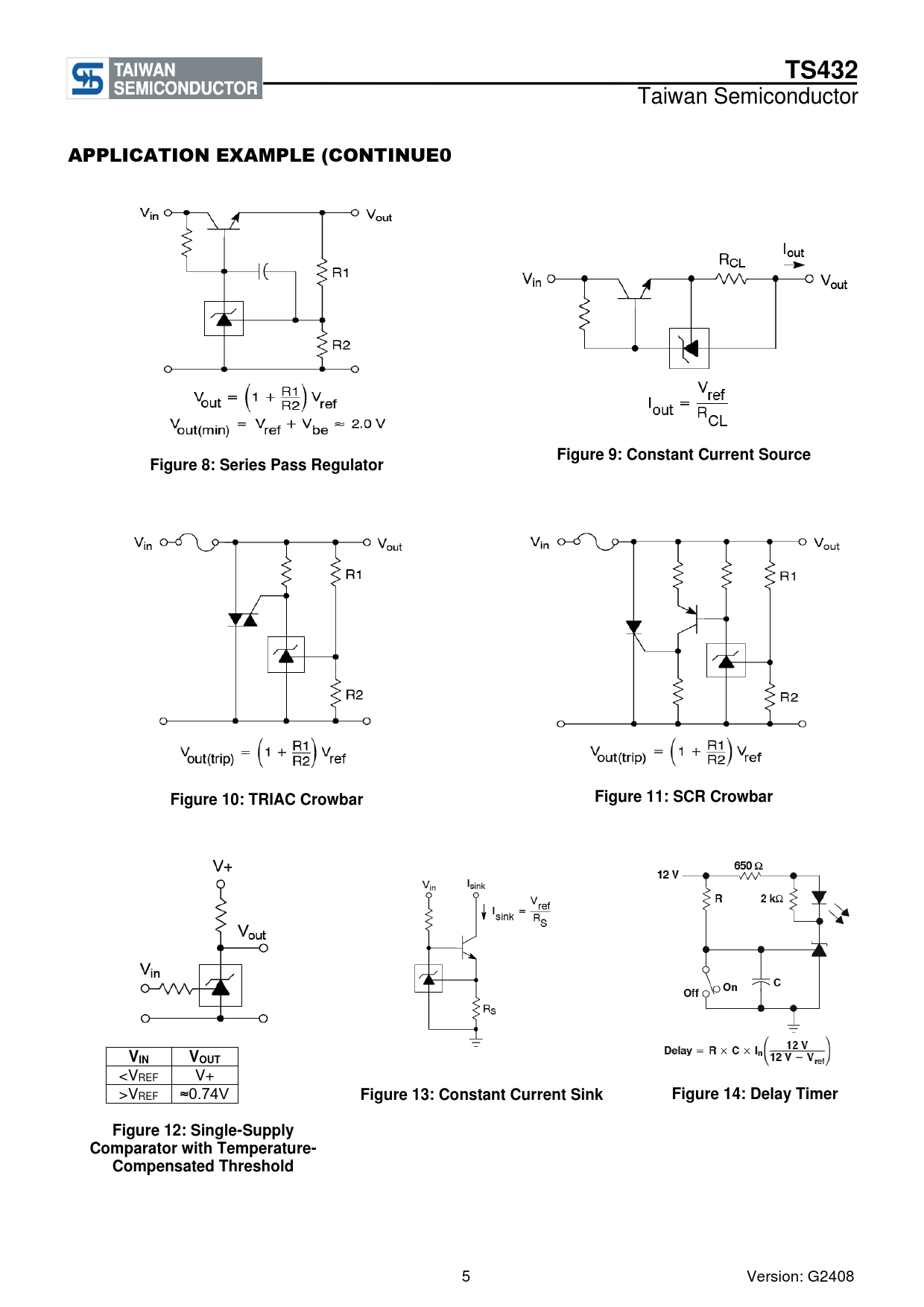

APPLICATION EXAMPLE (CONTINUE0 Figure 9: Constant Current Source Figure 8: Series Pass Regulator Figure 10: TRIAC Crowbar Figure 11: SCR Crowbar VIN VOUT
<VREF V+ >VREF ≈0.74V
Figure 13: Constant Current Sink Figure 14: Delay Timer Figure 12: Single-Supply Comparator with Temperature- Compensated Threshold
5 Version: G2408
