Datasheet CAT102TDI-GT3 (ON Semiconductor) - 5
| Manufacturer | ON Semiconductor |
| Description | Precision, Adjustable Shunt Regulator (600 mV Reference) |
| Pages / Page | 9 / 5 — CAT102. APPLICATIONS INFORMATION. onsemi. Figure 1. Application circuits … |
| File Format / Size | PDF / 1.0 Mb |
| Document Language | English |

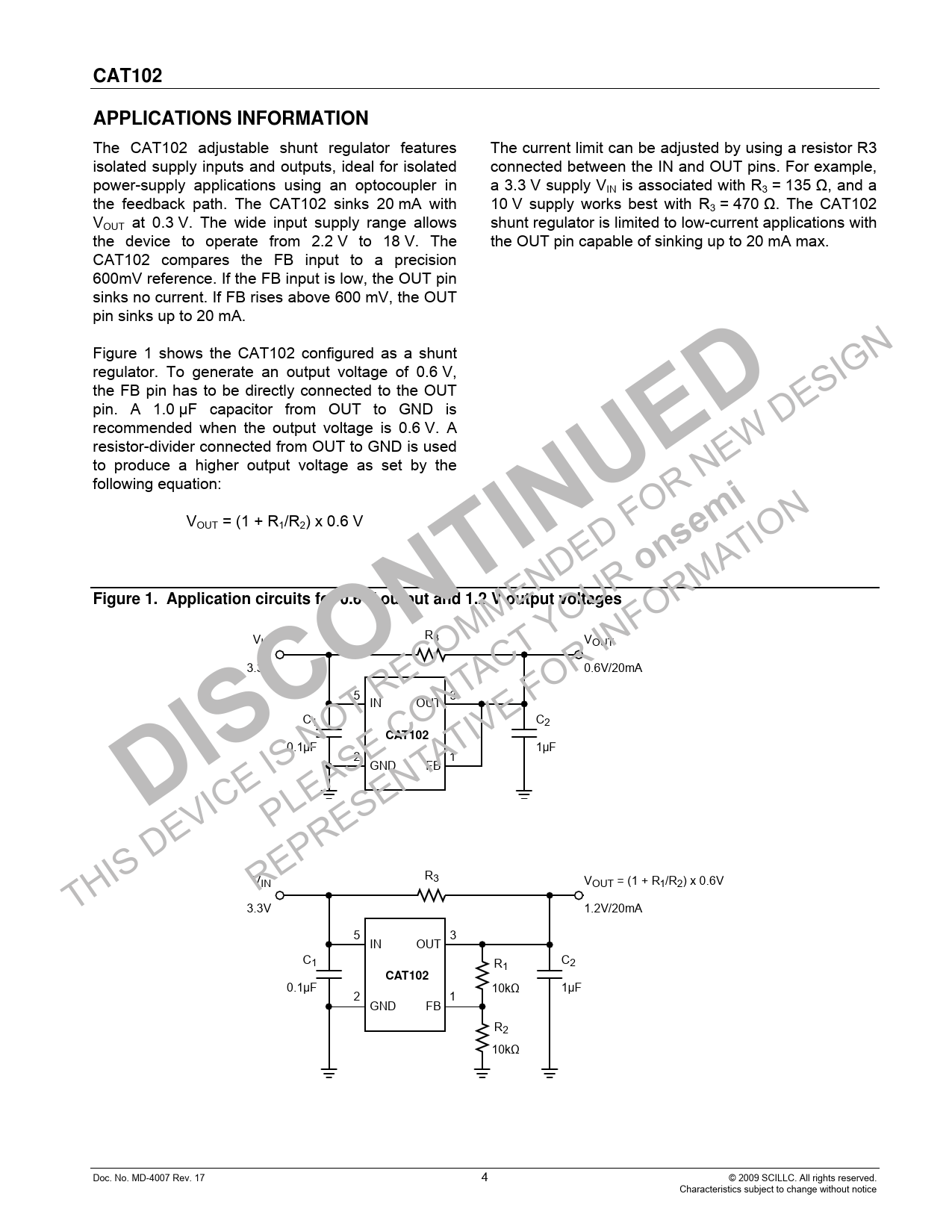

CAT102. APPLICATIONS INFORMATION. onsemi. Figure 1. Application circuits for 0.6 V output and 1.2 V output voltages
Model Line for this Datasheet
Text Version of Document
CAT102 APPLICATIONS INFORMATION
The CAT102 adjustable shunt regulator features The current limit can be adjusted by using a resistor R3 isolated supply inputs and outputs, ideal for isolated connected between the IN and OUT pins. For example, power-supply applications using an optocoupler in a 3.3 V supply VIN is associated with R3 = 135 Ω, and a the feedback path. The CAT102 sinks 20 mA with 10 V supply works best with R3 = 470 Ω. The CAT102 VOUT at 0.3 V. The wide input supply range allows shunt regulator is limited to low-current applications with the device to operate from 2.2 V to 18 V. The the OUT pin capable of sinking up to 20 mA max. CAT102 compares the FB input to a precision 600mV reference. If the FB input is low, the OUT pin sinks no current. If FB rises above 600 mV, the OUT pin sinks up to 20 mA. Figure 1 shows the CAT102 configured as a shunt regulator. To generate an output voltage of 0.6 V, the FB pin has to be directly connected to the OUT pin. A 1.0 µF capacitor from OUT to GND is recommended when the output voltage is 0.6 V. A resistor-divider connected from OUT to GND is used to produce a higher output voltage as set by the following equation: VOUT = (1 + R1/R2) x 0.6 V
