Datasheet IL300 (Vishay) - 3
| Manufacturer | Vishay |
| Description | Linear Optocoupler, High Gain Stability, Wide Bandwidth |
| Pages / Page | 11 / 3 — IL300. ABSOLUTE MAXIMUM RATINGS. PARAMETER. TEST CONDITION. SYMBOL. … |
| File Format / Size | PDF / 191 Kb |
| Document Language | English |
IL300. ABSOLUTE MAXIMUM RATINGS. PARAMETER. TEST CONDITION. SYMBOL. VALUE. UNIT. INPUT. OUTPUT. COUPLER. Note. ELECTRICAL CHARACTERISTICS. MIN
Model Line for this Datasheet
- IL300 IL300-DEFG IL300-DEFG-X001 IL300-DEFG-X006 IL300-DEFG-X007 IL300-DEFG-X007T IL300-DEFG-X009 IL300-DEFG-X009T IL300-DEFG-X016 IL300-DEFG-X017 IL300-DEFG-X017T IL300-E IL300-E-X001 IL300-E-X006 IL300-E-X007T IL300-E-X009T IL300-E-X017T IL300-EF IL300-EF-X001 IL300-EF-X006 IL300-EF-X007 IL300-EF-X007T IL300-EF-X009 IL300-EF-X009T IL300-EF-X016 IL300-EF-X017 IL300-EF-X017T IL300-F IL300-F-X001 IL300-F-X006 IL300-F-X007 IL300-F-X009 IL300-F-X009T IL300-F-X016 IL300-F-X017 IL300-F-X017T IL300-F-X019 IL300-F-X019T IL300-X001 IL300-X006 IL300-X007 IL300-X007T IL300-X009 IL300-X009T IL300-X016 IL300-X017
Text Version of Document

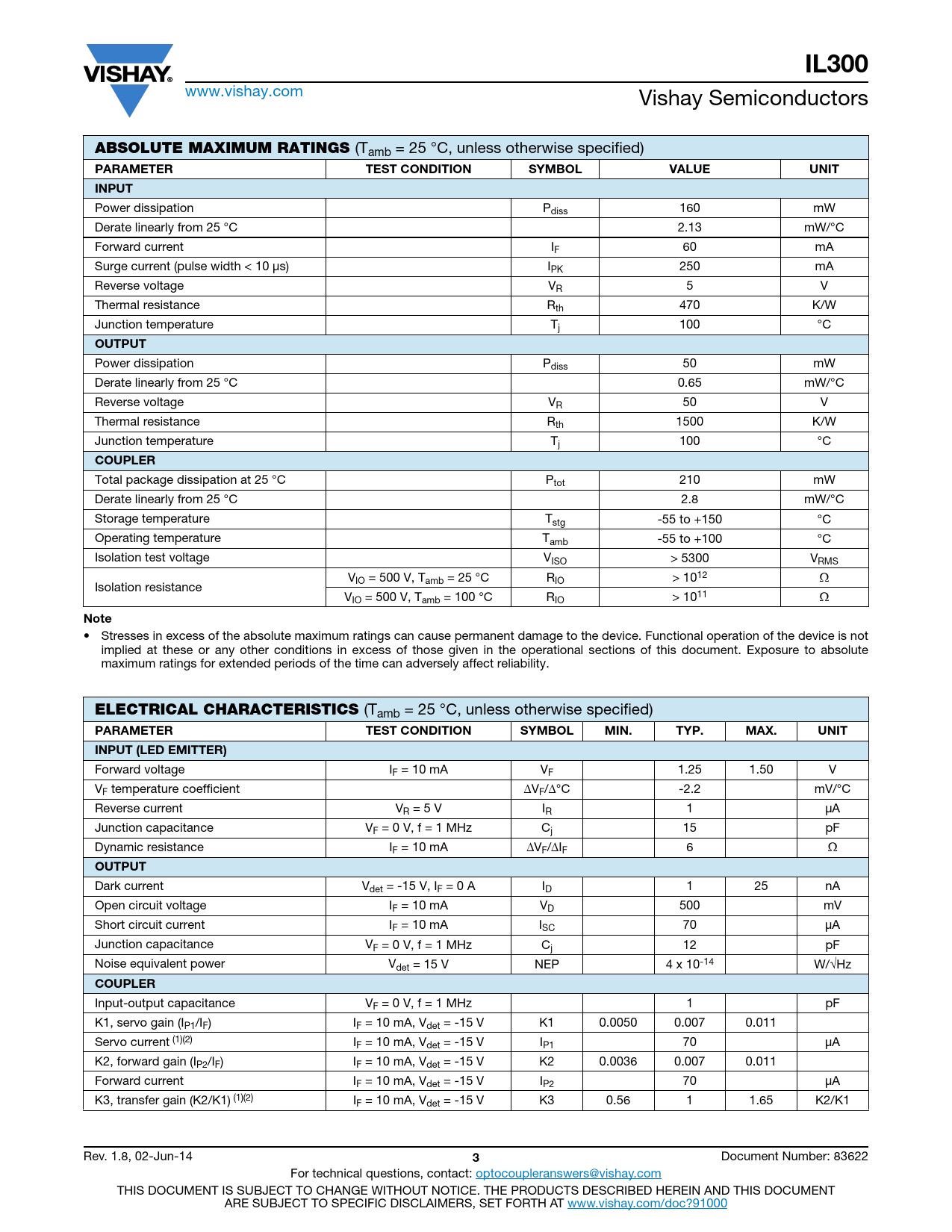

IL300
www.vishay.com Vishay Semiconductors
ABSOLUTE MAXIMUM RATINGS
(Tamb = 25 °C, unless otherwise specified)
PARAMETER TEST CONDITION SYMBOL VALUE UNIT INPUT
Power dissipation Pdiss 160 mW Derate linearly from 25 °C 2.13 mW/°C Forward current IF 60 mA Surge current (pulse width < 10 μs) IPK 250 mA Reverse voltage VR 5 V Thermal resistance Rth 470 K/W Junction temperature Tj 100 °C
OUTPUT
Power dissipation Pdiss 50 mW Derate linearly from 25 °C 0.65 mW/°C Reverse voltage VR 50 V Thermal resistance Rth 1500 K/W Junction temperature Tj 100 °C
COUPLER
Total package dissipation at 25 °C Ptot 210 mW Derate linearly from 25 °C 2.8 mW/°C Storage temperature Tstg -55 to +150 °C Operating temperature Tamb -55 to +100 °C Isolation test voltage VISO > 5300 VRMS VIO = 500 V, Tamb = 25 °C RIO > 1012 Isolation resistance VIO = 500 V, Tamb = 100 °C RIO > 1011
Note
• Stresses in excess of the absolute maximum ratings can cause permanent damage to the device. Functional operation of the device is not implied at these or any other conditions in excess of those given in the operational sections of this document. Exposure to absolute maximum ratings for extended periods of the time can adversely affect reliability.
ELECTRICAL CHARACTERISTICS
(Tamb = 25 °C, unless otherwise specified)
PARAMETER TEST CONDITION SYMBOL MIN. TYP. MAX. UNIT INPUT (LED EMITTER)
Forward voltage IF = 10 mA VF 1.25 1.50 V VF temperature coefficient VF/°C -2.2 mV/°C Reverse current VR = 5 V IR 1 μA Junction capacitance VF = 0 V, f = 1 MHz Cj 15 pF Dynamic resistance IF = 10 mA VF/IF 6
OUTPUT
Dark current Vdet = -15 V, IF = 0 A ID 1 25 nA Open circuit voltage IF = 10 mA VD 500 mV Short circuit current IF = 10 mA ISC 70 μA Junction capacitance VF = 0 V, f = 1 MHz Cj 12 pF Noise equivalent power Vdet = 15 V NEP 4 x 10-14 W/Hz
COUPLER
Input-output capacitance VF = 0 V, f = 1 MHz 1 pF K1, servo gain (IP1/IF) IF = 10 mA, Vdet = -15 V K1 0.0050 0.007 0.011 Servo current (1)(2) IF = 10 mA, Vdet = -15 V IP1 70 μA K2, forward gain (IP2/IF) IF = 10 mA, Vdet = -15 V K2 0.0036 0.007 0.011 Forward current IF = 10 mA, Vdet = -15 V IP2 70 μA K3, transfer gain (K2/K1) (1)(2) IF = 10 mA, Vdet = -15 V K3 0.56 1 1.65 K2/K1 Rev. 1.8, 02-Jun-14
3
Document Number: 83622 For technical questions, contact: optocoupleranswers@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
www.vishay.com Vishay Semiconductors
ABSOLUTE MAXIMUM RATINGS
(Tamb = 25 °C, unless otherwise specified)
PARAMETER TEST CONDITION SYMBOL VALUE UNIT INPUT
Power dissipation Pdiss 160 mW Derate linearly from 25 °C 2.13 mW/°C Forward current IF 60 mA Surge current (pulse width < 10 μs) IPK 250 mA Reverse voltage VR 5 V Thermal resistance Rth 470 K/W Junction temperature Tj 100 °C
OUTPUT
Power dissipation Pdiss 50 mW Derate linearly from 25 °C 0.65 mW/°C Reverse voltage VR 50 V Thermal resistance Rth 1500 K/W Junction temperature Tj 100 °C
COUPLER
Total package dissipation at 25 °C Ptot 210 mW Derate linearly from 25 °C 2.8 mW/°C Storage temperature Tstg -55 to +150 °C Operating temperature Tamb -55 to +100 °C Isolation test voltage VISO > 5300 VRMS VIO = 500 V, Tamb = 25 °C RIO > 1012 Isolation resistance VIO = 500 V, Tamb = 100 °C RIO > 1011
Note
• Stresses in excess of the absolute maximum ratings can cause permanent damage to the device. Functional operation of the device is not implied at these or any other conditions in excess of those given in the operational sections of this document. Exposure to absolute maximum ratings for extended periods of the time can adversely affect reliability.
ELECTRICAL CHARACTERISTICS
(Tamb = 25 °C, unless otherwise specified)
PARAMETER TEST CONDITION SYMBOL MIN. TYP. MAX. UNIT INPUT (LED EMITTER)
Forward voltage IF = 10 mA VF 1.25 1.50 V VF temperature coefficient VF/°C -2.2 mV/°C Reverse current VR = 5 V IR 1 μA Junction capacitance VF = 0 V, f = 1 MHz Cj 15 pF Dynamic resistance IF = 10 mA VF/IF 6
OUTPUT
Dark current Vdet = -15 V, IF = 0 A ID 1 25 nA Open circuit voltage IF = 10 mA VD 500 mV Short circuit current IF = 10 mA ISC 70 μA Junction capacitance VF = 0 V, f = 1 MHz Cj 12 pF Noise equivalent power Vdet = 15 V NEP 4 x 10-14 W/Hz
COUPLER
Input-output capacitance VF = 0 V, f = 1 MHz 1 pF K1, servo gain (IP1/IF) IF = 10 mA, Vdet = -15 V K1 0.0050 0.007 0.011 Servo current (1)(2) IF = 10 mA, Vdet = -15 V IP1 70 μA K2, forward gain (IP2/IF) IF = 10 mA, Vdet = -15 V K2 0.0036 0.007 0.011 Forward current IF = 10 mA, Vdet = -15 V IP2 70 μA K3, transfer gain (K2/K1) (1)(2) IF = 10 mA, Vdet = -15 V K3 0.56 1 1.65 K2/K1 Rev. 1.8, 02-Jun-14
3
Document Number: 83622 For technical questions, contact: optocoupleranswers@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
