IL300
www.vishay.com Vishay Semiconductors These amplifiers provide either an inverting or non-inverting For best results, place a buffer transistor between the LED transfer gain based upon the type of input and output and output of the operational amplifier when a CMOS amplifier. Table 2 shows the various configurations along opamp is used or the LED IFq drive is targeted to operate with the specific transfer gain equations. The offset column beyond 15 mA. Finally the bandwidth is influenced by the refers to the calculation of the output offset or Vref2 magnitude of the closed loop gain of the input and output necessary to provide a zero voltage output for a zero voltage amplifiers. Best bandwidths result when the amplifier gain is input. The non-inverting input amplifier requires the use of a designed for unity. bipolar supply, while the inverting input stage can be implemented with single supply operational amplifiers that permit operation close to ground.

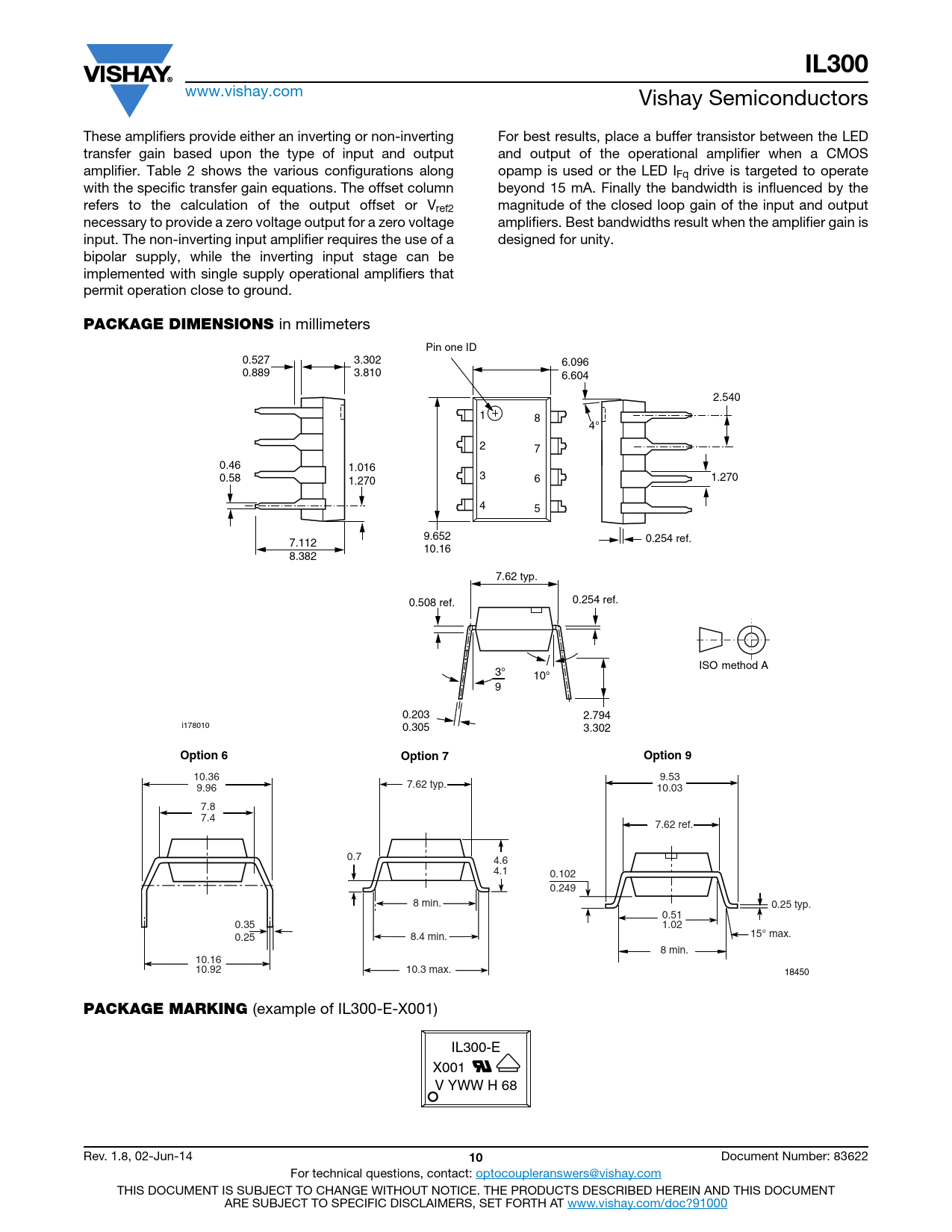

PACKAGE DIMENSIONS
in millimeters Pin one ID 0.527 3.302 6.096 0.889 3.810 6.604 2.540 1 8 4° 2 7 0.46 1.016 3 0.58 1.270 6 1.270 4 5 9.652 7.112 0.254 ref. 10.16 8.382 7.62 typ. 0.508 ref. 0.254 ref. ISO method A 3° 10° 9 0.203 2.794 i178010 0.305 3.302
Option 6 Option 7 Option 9
10.36 9.53 9.96 7.62 typ. 10.03 7.8 7.4 7.62 ref. 0.7 4.6 4.1 0.102 0.249 8 min. 0.25 typ. 0.51 0.35 1.02 15° max. 0.25 8.4 min. 8 min. 10.16 10.92 10.3 max. 18450
PACKAGE MARKING
(example of IL300-E-X001) IL300-E X001 V YWW H 68 Rev. 1.8, 02-Jun-14
