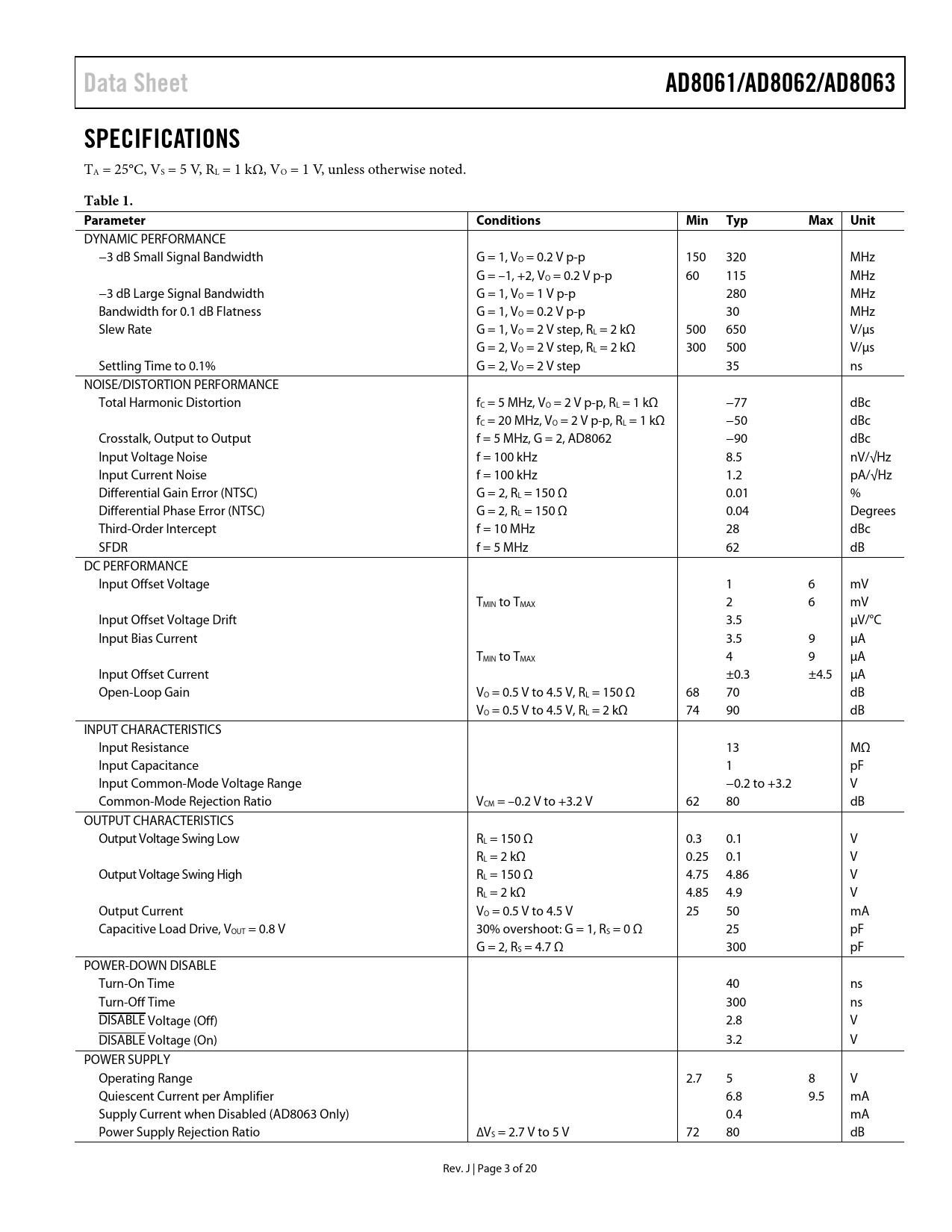

Data Sheet. AD8061/AD8062/AD8063. SPECIFICATIONS. Table 1. Parameter. Conditions. Min Typ. Max Unit

Data Sheet AD8061/AD8062/AD8063 SPECIFICATIONS Table 1 Parameter Conditions Min Typ Max Unit

Model Line for this Datasheet

Text Version of Document

Data Sheet AD8061/AD8062/AD8063 SPECIFICATIONS
TA = 25°C, VS = 5 V, RL = 1 kΩ, VO = 1 V, unless otherwise noted.
Table 1. Parameter Conditions Min Typ Max Unit
DYNAMIC PERFORMANCE −3 dB Small Signal Bandwidth G = 1, VO = 0.2 V p-p 150 320 MHz G = –1, +2, VO = 0.2 V p-p 60 115 MHz −3 dB Large Signal Bandwidth G = 1, VO = 1 V p-p 280 MHz Bandwidth for 0.1 dB Flatness G = 1, VO = 0.2 V p-p 30 MHz Slew Rate G = 1, VO = 2 V step, RL = 2 kΩ 500 650 V/µs G = 2, VO = 2 V step, RL = 2 kΩ 300 500 V/µs Settling Time to 0.1% G = 2, VO = 2 V step 35 ns NOISE/DISTORTION PERFORMANCE Total Harmonic Distortion fC = 5 MHz, VO = 2 V p-p, RL = 1 kΩ −77 dBc fC = 20 MHz, VO = 2 V p-p, RL = 1 kΩ −50 dBc Crosstalk, Output to Output f = 5 MHz, G = 2, AD8062 −90 dBc Input Voltage Noise f = 100 kHz 8.5 nV/√Hz Input Current Noise f = 100 kHz 1.2 pA/√Hz Differential Gain Error (NTSC) G = 2, RL = 150 Ω 0.01 % Differential Phase Error (NTSC) G = 2, RL = 150 Ω 0.04 Degrees Third-Order Intercept f = 10 MHz 28 dBc SFDR f = 5 MHz 62 dB DC PERFORMANCE Input Offset Voltage 1 6 mV TMIN to TMAX 2 6 mV Input Offset Voltage Drift 3.5 µV/°C Input Bias Current 3.5 9 µA TMIN to TMAX 4 9 µA Input Offset Current ±0.3 ±4.5 µA Open-Loop Gain VO = 0.5 V to 4.5 V, RL = 150 Ω 68 70 dB VO = 0.5 V to 4.5 V, RL = 2 kΩ 74 90 dB INPUT CHARACTERISTICS Input Resistance 13 MΩ Input Capacitance 1 pF Input Common-Mode Voltage Range −0.2 to +3.2 V Common-Mode Rejection Ratio VCM = –0.2 V to +3.2 V 62 80 dB OUTPUT CHARACTERISTICS Output Voltage Swing Low RL = 150 Ω 0.3 0.1 V RL = 2 kΩ 0.25 0.1 V Output Voltage Swing High RL = 150 Ω 4.75 4.86 V RL = 2 kΩ 4.85 4.9 V Output Current VO = 0.5 V to 4.5 V 25 50 mA Capacitive Load Drive, VOUT = 0.8 V 30% overshoot: G = 1, RS = 0 Ω 25 pF G = 2, RS = 4.7 Ω 300 pF POWER-DOWN DISABLE Turn-On Time 40 ns Turn-Off Time 300 ns DISABLE Voltage (Off) 2.8 V DISABLE Voltage (On) 3.2 V POWER SUPPLY Operating Range 2.7 5 8 V Quiescent Current per Amplifier 6.8 9.5 mA Supply Current when Disabled (AD8063 Only) 0.4 mA Power Supply Rejection Ratio ∆VS = 2.7 V to 5 V 72 80 dB Rev. J | Page 3 of 20 Document Outline Features Applications Connection Diagrams General Description Revision History Specifications Absolute Maximum Ratings Maximum Power Dissipation ESD Caution Typical Performance Characteristics Circuit Description Headroom Considerations Overload Behavior and Recovery Input Output Capacitive Load Drive Disable Operation Board Layout Considerations Applications Information Single-Supply Sync Stripper RGB Amplifier Multiplexer Outline Dimensions Ordering Guide
