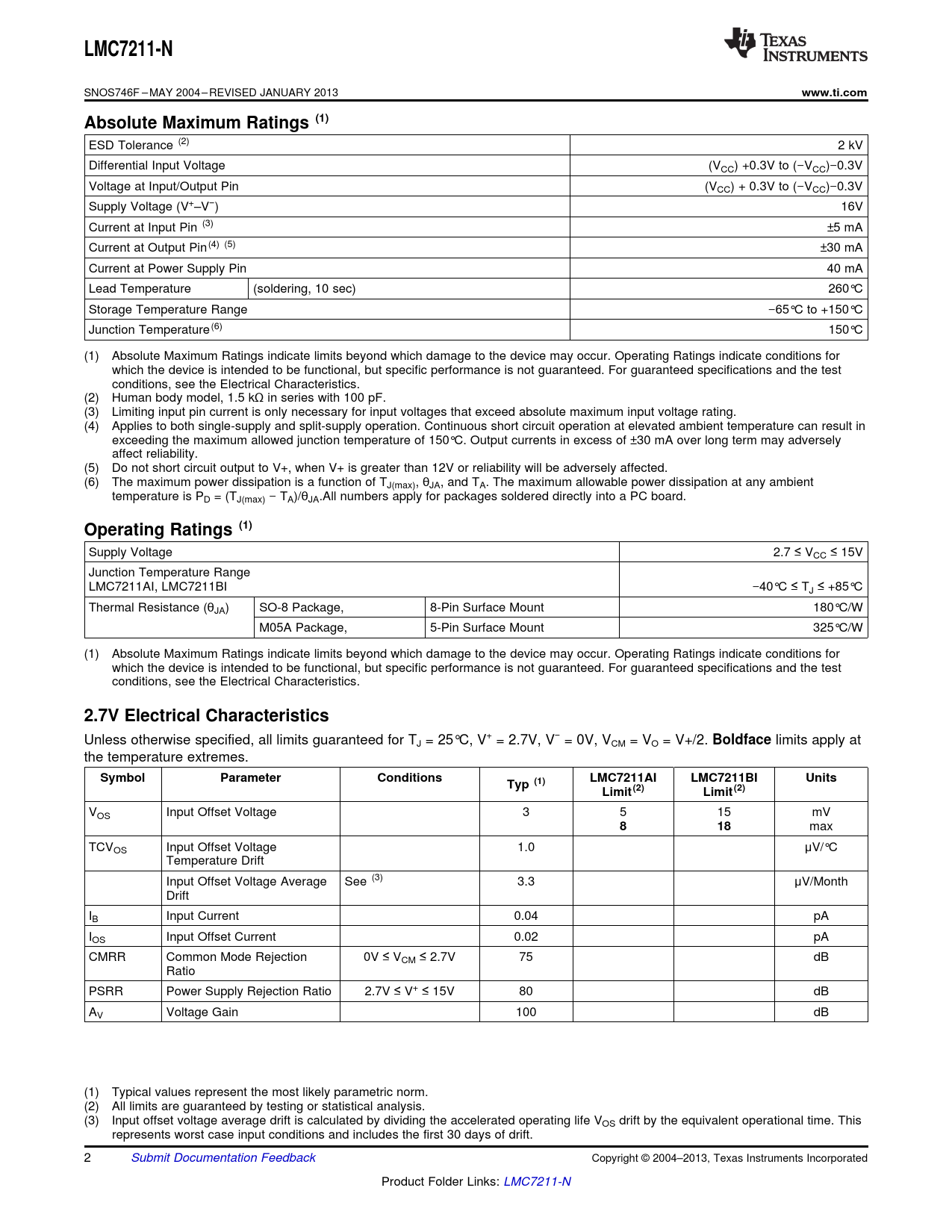

LMC7211-N
SNOS746F – MAY 2004 – REVISED JANUARY 2013
www.ti.com Absolute Maximum Ratings (1)
ESD Tolerance (2) 2 kV Differential Input Voltage (VCC) +0.3V to (−VCC)−0.3V Voltage at Input/Output Pin (VCC) + 0.3V to (−VCC)−0.3V Supply Voltage (V+–V−) 16V Current at Input Pin (3) ±5 mA Current at Output Pin(4) (5) ±30 mA Current at Power Supply Pin 40 mA Lead Temperature (soldering, 10 sec) 260°C Storage Temperature Range −65°C to +150°C Junction Temperature(6) 150°C (1) Absolute Maximum Ratings indicate limits beyond which damage to the device may occur. Operating Ratings indicate conditions for which the device is intended to be functional, but specific performance is not guaranteed. For guaranteed specifications and the test conditions, see the Electrical Characteristics. (2) Human body model, 1.5 kΩ in series with 100 pF. (3) Limiting input pin current is only necessary for input voltages that exceed absolute maximum input voltage rating. (4) Applies to both single-supply and split-supply operation. Continuous short circuit operation at elevated ambient temperature can result in exceeding the maximum allowed junction temperature of 150°C. Output currents in excess of ±30 mA over long term may adversely affect reliability. (5) Do not short circuit output to V+, when V+ is greater than 12V or reliability will be adversely affected. (6) The maximum power dissipation is a function of TJ(max), θJA, and TA. The maximum allowable power dissipation at any ambient temperature is PD = (TJ(max) − TA)/θJA.All numbers apply for packages soldered directly into a PC board.
Operating Ratings (1)
Supply Voltage 2.7 ≤ VCC ≤ 15V Junction Temperature Range LMC7211AI, LMC7211BI −40°C ≤ TJ ≤ +85°C Thermal Resistance (θJA) SO-8 Package, 8-Pin Surface Mount 180°C/W M05A Package, 5-Pin Surface Mount 325°C/W (1) Absolute Maximum Ratings indicate limits beyond which damage to the device may occur. Operating Ratings indicate conditions for which the device is intended to be functional, but specific performance is not guaranteed. For guaranteed specifications and the test conditions, see the Electrical Characteristics.
