Datasheet Texas Instruments LMC7211 (Texas Instruments) - 7
| Manufacturer | Texas Instruments |
| Description | Tiny CMOS Comparator with Rail-to-Rail Input and Push-Pull Output |
| Pages / Page | 24 / 7 — LMC7211-N. www.ti.com. Typical Performance Characteristics (continued). … |
| Revision | F |
| File Format / Size | PDF / 1.3 Mb |
| Document Language | English |
LMC7211-N. www.ti.com. Typical Performance Characteristics (continued). Response Time for Various Input Overdrives −tPHL
Text Version of Document
LMC7211-N www.ti.com
SNOS746F – MAY 2004 – REVISED JANUARY 2013
Typical Performance Characteristics (continued)
Single Supply TA = 25°C unless specified

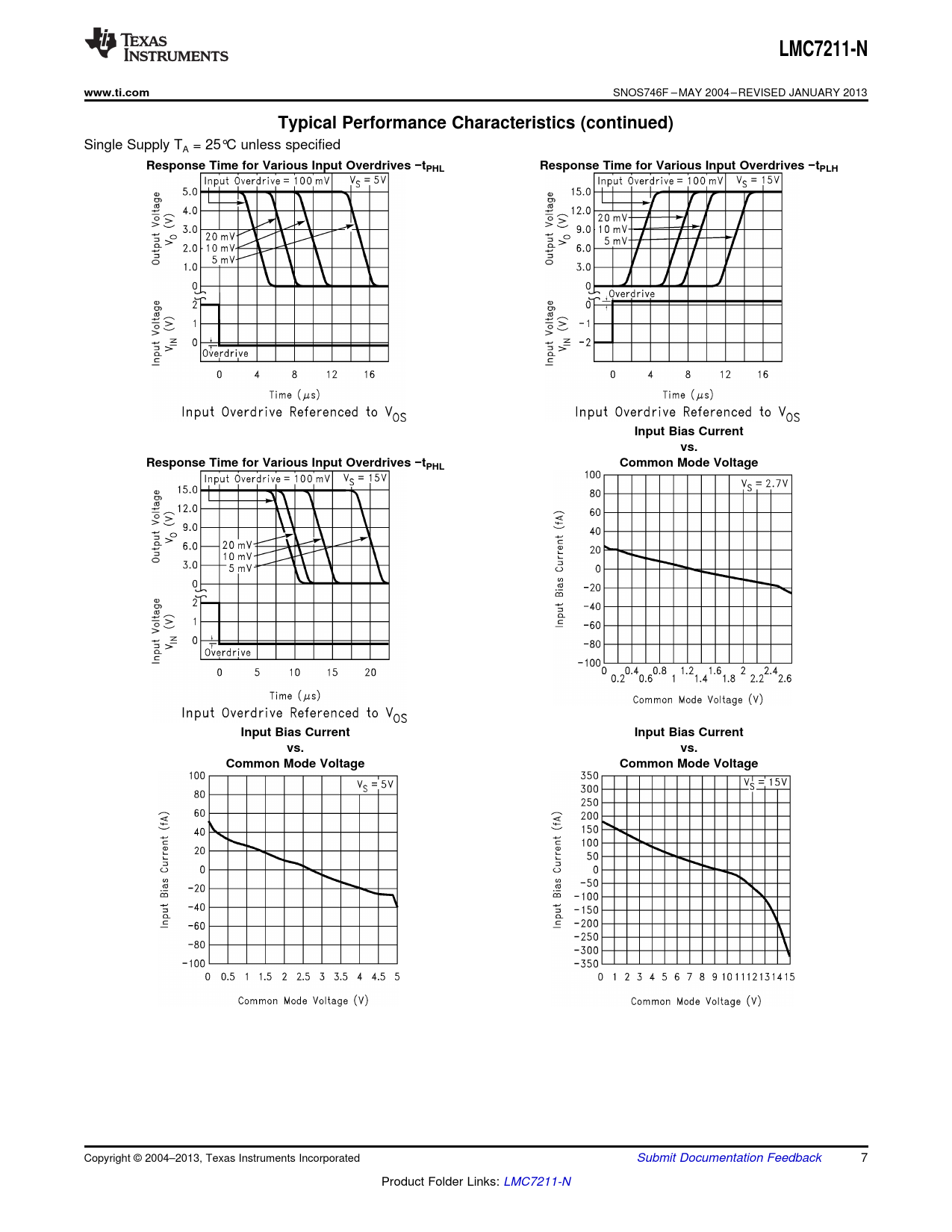

Response Time for Various Input Overdrives −tPHL Response Time for Various Input Overdrives −tPLH Input Bias Current vs. Response Time for Various Input Overdrives −tPHL Common Mode Voltage Input Bias Current Input Bias Current vs. vs. Common Mode Voltage Common Mode Voltage
