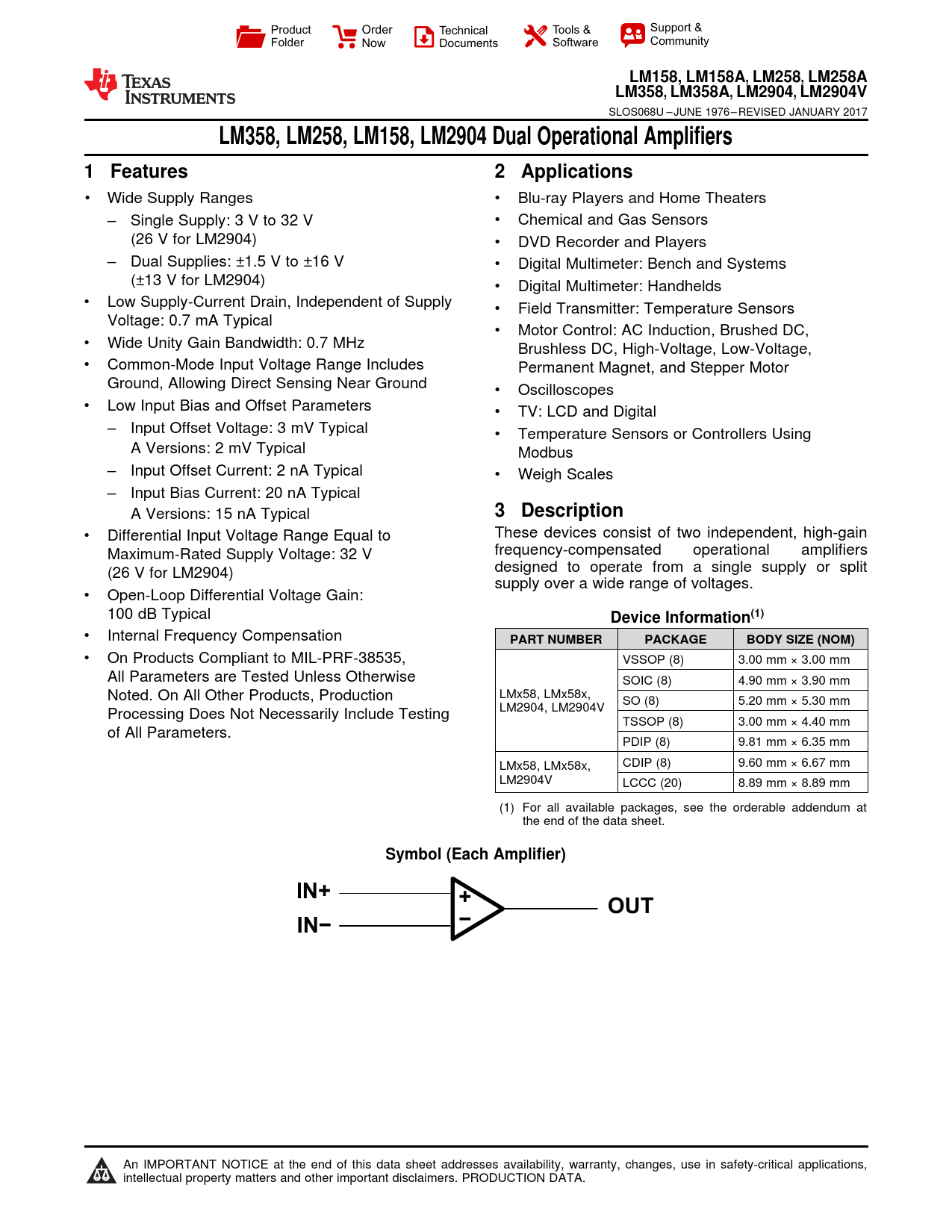

LM158,. LM158A, LM258. , LM258A. LM358,. LM358A,. LM2904. , LM2904V. LM358, LM258, LM158, LM2904 Dual Operational Amplifiers
Text Version of Document
link to page 17 link to page 17 link to page 17 link to page 17 link to page 17 link to page 1 Product Order Technical Tools & Support & Folder Now Documents Software Community
LM158, LM158A, LM258 , LM258A LM358, LM358A, LM2904 , LM2904V
SLOS068U – JUNE 1976 – REVISED JANUARY 2017
LM358, LM258, LM158, LM2904 Dual Operational Amplifiers 1 Features 2 Applications
• Wide Supply Ranges • Blu-ray Players and Home Theaters 1 – Single Supply: 3 V to 32 V • Chemical and Gas Sensors (26 V for LM2904) • DVD Recorder and Players – Dual Supplies: ±1.5 V to ±16 V • Digital Multimeter: Bench and Systems (±13 V for LM2904) • Digital Multimeter: Handhelds • Low Supply-Current Drain, Independent of Supply • Field Transmitter: Temperature Sensors Voltage: 0.7 mA Typical • Motor Control: AC Induction, Brushed DC, • Wide Unity Gain Bandwidth: 0.7 MHz Brushless DC, High-Voltage, Low-Voltage, • Common-Mode Input Voltage Range Includes Permanent Magnet, and Stepper Motor Ground, Allowing Direct Sensing Near Ground • Oscilloscopes • Low Input Bias and Offset Parameters • TV: LCD and Digital – Input Offset Voltage: 3 mV Typical • Temperature Sensors or Controllers Using A Versions: 2 mV Typical Modbus – Input Offset Current: 2 nA Typical • Weigh Scales – Input Bias Current: 20 nA Typical A Versions: 15 nA Typical
3 Description
• Differential Input Voltage Range Equal to These devices consist of two independent, high-gain Maximum-Rated Supply Voltage: 32 V frequency-compensated operational amplifiers (26 V for LM2904) designed to operate from a single supply or split supply over a wide range of voltages. • Open-Loop Differential Voltage Gain: 100 dB Typical
Device Information(1)
• Internal Frequency Compensation
PART NUMBER PACKAGE BODY SIZE (NOM)
• On Products Compliant to MIL-PRF-38535, VSSOP (8) 3.00 mm × 3.00 mm All Parameters are Tested Unless Otherwise SOIC (8) 4.90 mm × 3.90 mm Noted. On All Other Products, Production LMx58, LMx58x, SO (8) 5.20 mm × 5.30 mm Processing Does Not Necessarily Include Testing LM2904, LM2904V TSSOP (8) 3.00 mm × 4.40 mm of All Parameters. PDIP (8) 9.81 mm × 6.35 mm LMx58, LMx58x, CDIP (8) 9.60 mm × 6.67 mm LM2904V LCCC (20) 8.89 mm × 8.89 mm (1) For all available packages, see the orderable addendum at the end of the data sheet.
Symbol (Each Amplifier) IN+ + OUT IN− −
1 An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications, intellectual property matters and other important disclaimers. PRODUCTION DATA. Document Outline 1 Features 2 Applications 3 Description Table of Contents 4 Revision History 5 Pin Configuration and Functions 6 Specifications 6.1 Absolute Maximum Ratings 6.2 ESD Ratings 6.3 Recommended Operating Conditions 6.4 Thermal Information 6.5 Electrical Characteristics for LMx58 6.6 Electrical Characteristics for LM2904 6.7 Electrical Characteristics for LM158A and LM258A 6.8 Electrical Characteristics for LM358A 6.9 Operating Conditions 6.10 Typical Characteristics 7 Parameter Measurement Information 8 Detailed Description 8.1 Overview 8.2 Functional Block Diagram 8.3 Feature Description 8.3.1 Unity-Gain Bandwidth 8.3.2 Slew Rate 8.3.3 Input Common Mode Range 8.4 Device Functional Modes 9 Application and Implementation 9.1 Application Information 9.2 Typical Application 9.2.1 Design Requirements 9.2.2 Detailed Design Procedure 9.2.3 Application Curve 10 Power Supply Recommendations 11 Layout 11.1 Layout Guidelines 11.2 Layout Examples 12 Device and Documentation Support 12.1 Documentation Support 12.1.1 Related Documentation 12.2 Related Links 12.3 Receiving Notification of Documentation Updates 12.4 Community Resources 12.5 Trademarks 12.6 Electrostatic Discharge Caution 12.7 Glossary 13 Mechanical, Packaging, and Orderable Information
