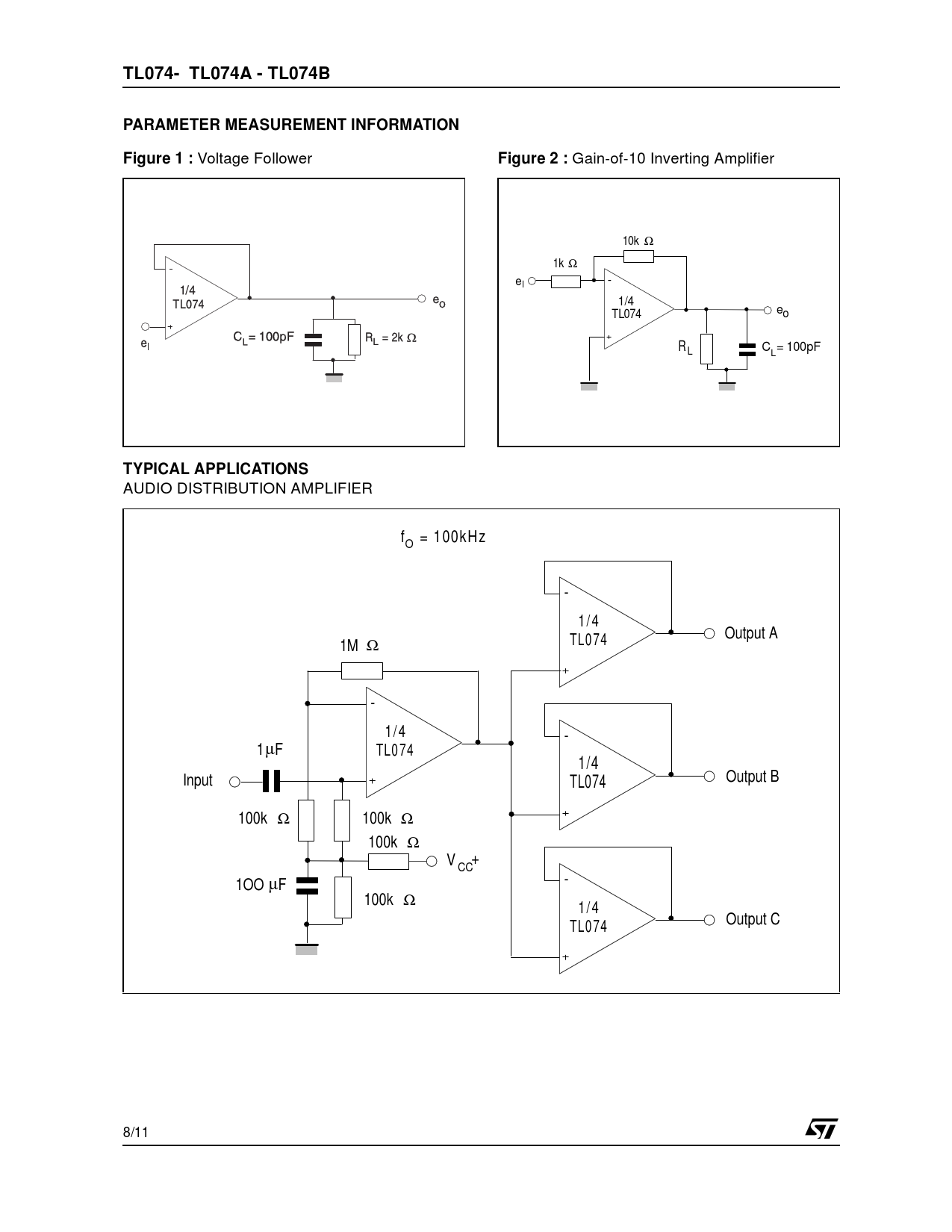

TL074- TL074A - TL074B. PARAMETER MEASUREMENT INFORMATION. Figure 1 :. Figure 2 :. TYPICAL APPLICATIONS
Text Version of Document
TL074- TL074A - TL074B PARAMETER MEASUREMENT INFORMATION Figure 1 :
Voltage Follower
Figure 2 :
Gain-of-10 Inverting Amplifier 10k Ω 1k Ω e - I 1/4 TL074 eo R L C = 100pF L
TYPICAL APPLICATIONS
AUDIO DISTRIBUTION AMPLIFIER f = 100kHz O - 1/ 4 TL074 Output A 1M Ω - 1/ 4 - 1µF TL074 1/4 Input TL074 Output B 100k Ω 100k Ω 100k Ω V + CC - 1OO µF 100k Ω 1/ 4 TL074 Output C 8/11
