LM78L05. , LM78L09,. LM78L12. , LM78L15. , LM78L62,. LM78L82. www.ti.com. Typical Performance Characteristics
Model Line for this Datasheet
Text Version of Document
LM78L05 , LM78L09, LM78L12 , LM78L15 , LM78L62, LM78L82
SNVS754I – JANUARY 2000 – REVISED APRIL 2013

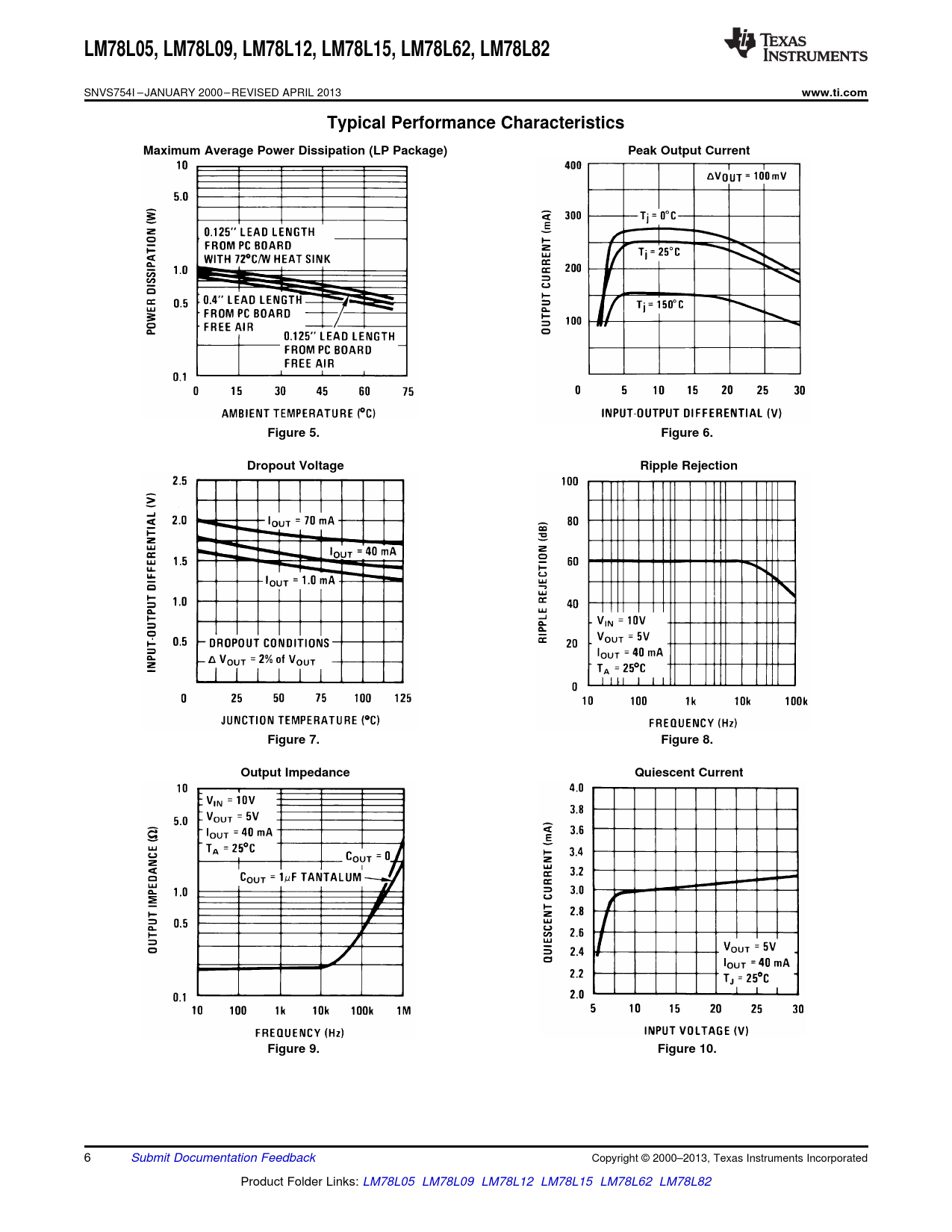

www.ti.com Typical Performance Characteristics Maximum Average Power Dissipation (LP Package) Peak Output Current Figure 5. Figure 6. Dropout Voltage Ripple Rejection Figure 7. Figure 8. Output Impedance Quiescent Current Figure 9. Figure 10.
