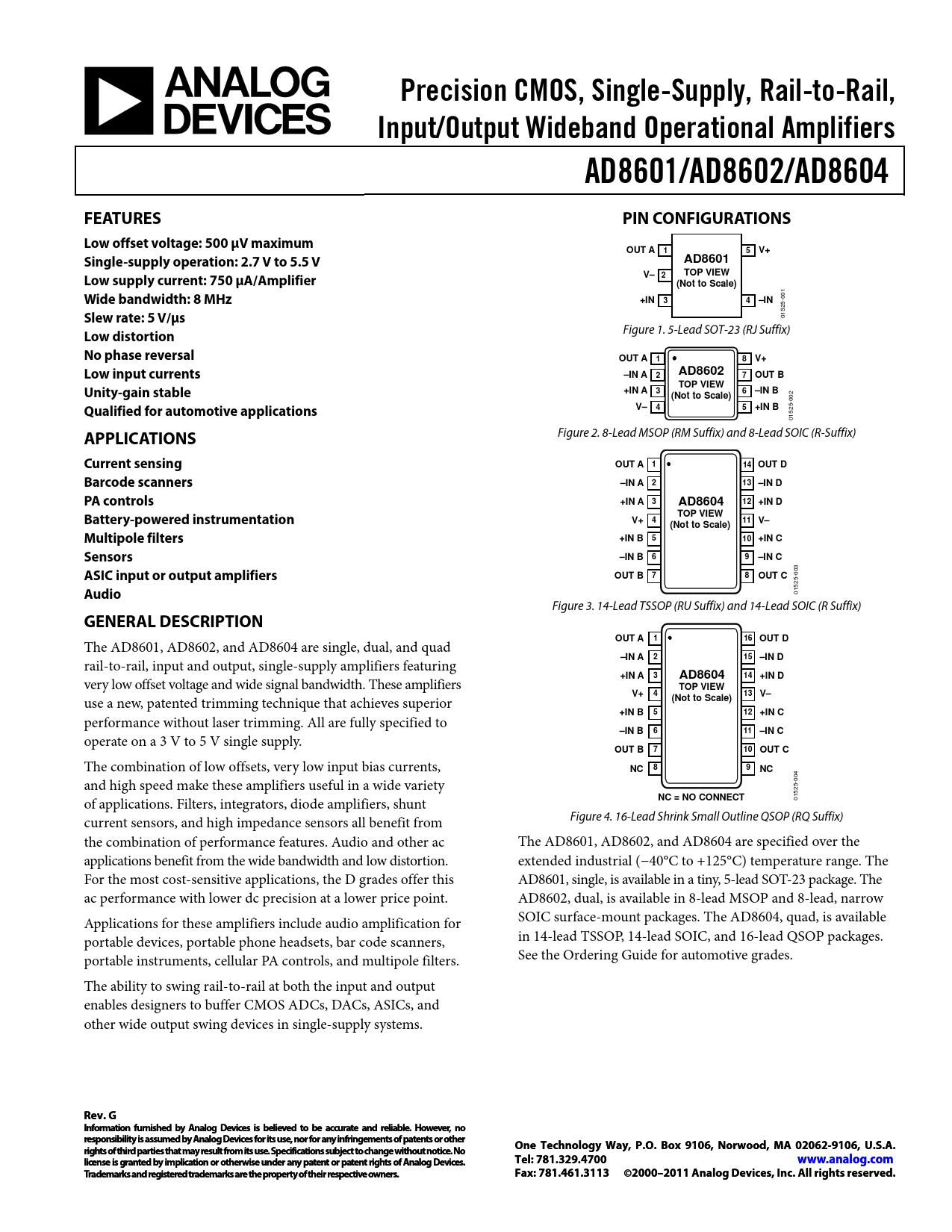

Precision CMOS, Single-Supply, Rail-to-Rail, Input/Output Wideband Operational Amplifiers AD8601/AD8602/AD8604 FEATURES PIN CONFIGURATIONS Low offset voltage: 500 μV maximum OUT A 1 5 V+ Single-supply operation: 2.7 V to 5.5 V AD8601 TOP VIEW Low supply current: 750 μA/Amplifier V– 2 (Not to Scale)
1
Wide bandwidth: 8 MHz
00
+IN 3 4 –IN
5- 52
Slew rate: 5 V/μs
01 Figure 1. 5-Lead SOT-23 (RJ Suffix)
Low distortion No phase reversal OUT A 1 8 V+ Low input currents –IN A AD8602 2 7 OUT B TOP VIEW Unity-gain stable +IN A 3 6 –IN B (Not to Scale)
2 00 5-
Qualified for automotive applications V– 4 5 +IN B
52 01
APPLICATIONS
Figure 2. 8-Lead MSOP (RM Suffix) and 8-Lead SOIC (R-Suffix)
Current sensing OUT A 1 14 OUT D Barcode scanners –IN A 2 13 –IN D PA controls +IN A 3 AD8604 12 +IN D Battery-powered instrumentation TOP VIEW V+ 4 11 V– (Not to Scale) Multipole filters +IN B 5 10 +IN C Sensors –IN B 6 9 –IN C
3
ASIC input or output amplifiers
00
OUT B 7 8 OUT C
5- 52
Audio
01 Figure 3. 14-Lead TSSOP (RU Suffix) and 14-Lead SOIC (R Suffix)
GENERAL DESCRIPTION OUT A 1 16 OUT D
The AD8601, AD8602, and AD8604 are single, dual, and quad
–IN A 2 15 –IN D
rail-to-rail, input and output, single-supply amplifiers featuring
+IN A 3 AD8604 14 +IN D
very low offset voltage and wide signal bandwidth. These amplifiers
TOP VIEW V+ 4 13 V–
use a new, patented trimming technique that achieves superior
(Not to Scale) +IN B 5 12 +IN C
performance without laser trimming. All are fully specified to
–IN B 6 11 –IN C
operate on a 3 V to 5 V single supply.
OUT B 7 10 OUT C
The combination of low offsets, very low input bias currents,
8 9 NC NC
4 and high speed make these amplifiers useful in a wide variety 00 5- 52 of applications. Filters, integrators, diode amplifiers, shunt
NC = NO CONNECT
01 current sensors, and high impedance sensors all benefit from Figure 4. 16-Lead Shrink Small Outline QSOP (RQ Suffix) the combination of performance features. Audio and other ac The AD8601, AD8602, and AD8604 are specified over the applications benefit from the wide bandwidth and low distortion. extended industrial (−40°C to +125°C) temperature range. The For the most cost-sensitive applications, the D grades offer this AD8601, single, is available in a tiny, 5-lead SOT-23 package. The ac performance with lower dc precision at a lower price point. AD8602, dual, is available in 8-lead MSOP and 8-lead, narrow Applications for these amplifiers include audio amplification for SOIC surface-mount packages. The AD8604, quad, is available portable devices, portable phone headsets, bar code scanners, in 14-lead TSSOP, 14-lead SOIC, and 16-lead QSOP packages. portable instruments, cellular PA controls, and multipole filters. See the Ordering Guide for automotive grades. The ability to swing rail-to-rail at both the input and output enables designers to buffer CMOS ADCs, DACs, ASICs, and other wide output swing devices in single-supply systems.
Rev. G In I f n o f rma o t rma io t n io n furn i furn sh i e sh d e b d y b A y n A a n l a o l g o D g e D v e i v c i e c s e s is be is l be i l e i v e ed v ed t o t o be a be c a c c u c r u a r t a e t an e d an r d e r l e i l a i b a le b . H le o . H w o e w v e e v r e , r n , o n o res r p es ons p i ons b i i b l i i l t i y t i y s i s assu a med b ssu y med b yAn A a n l a og l De og v De i v c i e c s f e o s f r it o s use r it , s use ,nor fo nor f r an o y r an inf y rin inf ge rin men ge t men s t o s f o f pa p t a en t t en s t o s r o o r t o he t r he r One Technology e Way, P.O. Box 91 o 06, x 91 Norwood, MA 02062-9106, U.S.A. . ri r g i h g ts o h f ts o fthir th d ir dpart par ies t th ies a th t a m t a m y a r y e r su e l su t l f t r f o r m o mit i s t use s . use S . p S e p ci e f ci ica f t ica io t n io s n su s bj su e bj c e t t c o t t c o h c an h g an e g w e i w th i o th u o t n u o t n ti o c ti e c . e N . o N o li l c i e c n e s n e s i e s i g s r g an r t an e t d e d b y b y imp l imp ic l a ic t a io t n io o n r o o r t o h t e h r e w r i w s i e s un e d un e d r an e y r an y pa t pa e t n e t n o t r o pa r t pa e t n e t n r t i r g i h g t h s t o s f o A f n A a n l a o l g o D g e D v e i v c i e c s e . s Tel: 781.329.4700 www. w analog.c analog om .c . Tr T adem r ar adem ks ar and ks r and eg r i eg st i e st r e ed r edtrad tr ema ad rks ema ar rks e ar ethe p the r p o r p o er p t er y t of y ofthei the r i r r e r sp e e sp c e t c i t v i e v o e wne o rs wne . rs Fax: 781.461.3113 ©2000–2011 Analog Devices, Inc. All rights reserved.
Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION PIN CONFIGURATIONS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION RAIL-TO-RAIL INPUT STAGE INPUT OVERVOLTAGE PROTECTION OVERDRIVE RECOVERY POWER-ON TIME USING THE AD8602 IN HIGH SOURCE IMPEDANCE APPLICATIONS HIGH SIDE AND LOW SIDE, PRECISION CURRENT MONITORING USING THE AD8601 IN SINGLE-SUPPLY, MIXED SIGNAL APPLICATIONS PC100 COMPLIANCE FOR COMPUTER AUDIO APPLICATIONS SPICE MODEL OUTLINE DIMENSIONS ORDERING GUIDE AUTOMOTIVE PRODUCTS
