Highly integrated, 5 mm x 5 mm power circuit simplifies power design and system voltage management to TI’s 32-bit microcontrollers

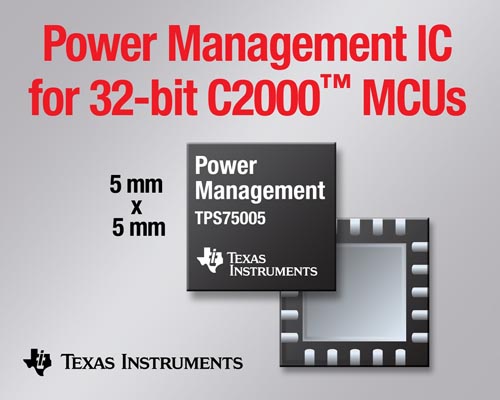

Texas Instruments Incorporated introduced a complete power management solution for TI’s C2000 real-time control, 32-bit microcontrollers (MCUs) and other DSP and FPGA processors. The TPS75005 highly integrated power circuit comes in a thermally enhanced 5 mm x 5 mm QFN package, combining two low-noise 500-mA LDOs and three supply voltage supervisors to provide +/-5 percent power-rail accuracy for TI’s F2833x, F2823x, F281x, F2801x and F280x microcontroller series.
The TPS75005 supports input voltages from 3.5 V to 6.5 V, and provides two power outputs controlled by an integrated sequencer circuit. A single EN logic input signal ensures the power-up and power-down requirements of the C2000 MCUs. The sequencer includes a soft-start for both LDOs to avoid inrush current. A third rail monitor also provides general power management functions, such as monitoring the input voltage.
Features
- Optimized to Supply TI's C2000 MCU Series: F2833x (DELFINO), F2823x, F281x, and F280x/F2801x
- Dual 500-mA Voltage Regulators with Dedicated Supply Voltage Supervisor (SVS)
- LDO1 and SVS1 for 1.8 V/1.9 V (Selectable): ±5% Specified with PG
- LDO2 and SVS2 for 3.3 V: ±5% Specified with PG
- One Auxiliary SVS
- Input Voltage Range: 3.75 V to 6.5 V
- Independent Soft-Starts Circuits for LDO1 and LDO2
- Preset Power-Up and Power-Down Sequencing for C2000 MCUs
- Supports C2000 MCU Transient with Two 10-µF Ceramic Output Capacitors
- 5-mm × 5-mm QFN Package(1)16-Pin HTSSOP package can be supported but minimum quantity may be required; contact sales representative for details.
Availability and pricing:
The TPS75005 is available in volume now from TI and its distributors in a 20-pin, 5-mm x 5-mm QFN.
