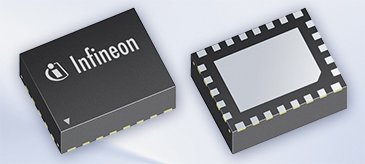

Infineon has released a module BGSF110GN26 is a single pole ten throw (SP10T) antenna switch module (ASM) optimized for wireless applications up to 3.8GHz. It is the perfect solution for multi-mode handsets based on quad band GSM, WCDMA and LTE. This device is designed to fully support QUALCOMM platforms and is also suitable for other mobile phone chip sets where high performance SP10T is a must.
Infineon’s new simple leadless package technology optimizes performance and cost. The low pass filter based on Infineon’s in-house integrated passive device (IPD) technology takes integration to the next level. The module comes in a miniature TSNP package and comprises a high power CMOS SP10T switch with integrated GPIO controller and harmonic filters for GSM high- and low-band transmit paths. The on-chip controller integrates CMOS logic and level shifters, driven by control inputs from 1.35 to 3.1V.

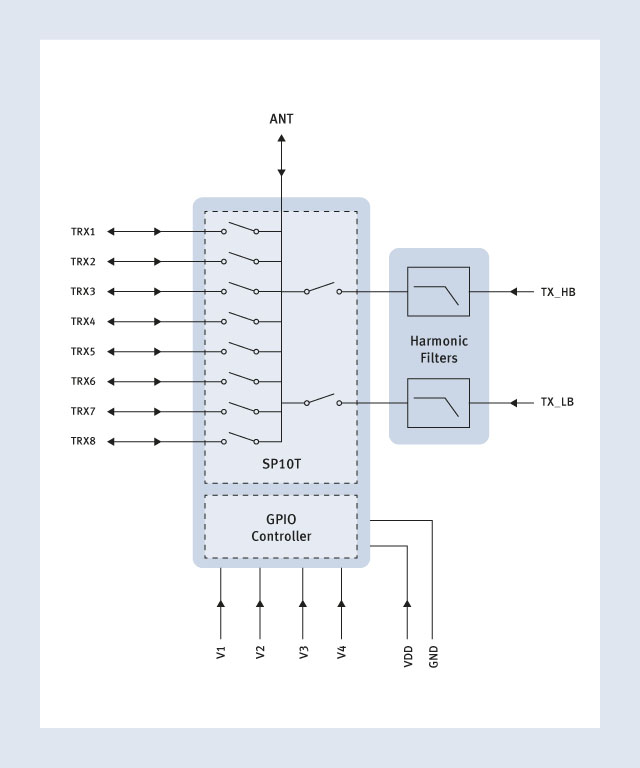

In typical applications, no external DC blocking capacitors are required if DC is not applied to any of the RF ports. BGSF110GN26 is suitable for smart phones, tablets and mobile phones. It is also the perfect fit for wireless machine-to-machine modules. The switch module configuration is shown in diagram below.
Features
- World´s first SP10T antenna switch module operating and specified up to 3.8GHz
- Performance- and cost-optimized TSNP-26 package technology with very small footprint (3.4mm × 2.6mm)
- Supports all mobile phone standards (GSM/EDGE, WCDMA and LTE)
- Ultra-low insertion loss and harmonics generation
- Integrated low-pass filter for GSM low and high bands
- 2 high-linearity GSM TX paths
- 8 high-linearity, interchangeable WCDMA/LTE TRX ports
- 2 TRX ports that also function as high-linearity GSM RX ports
- High port-to-port isolation
- Integrated GPIO decoder supporting logic levels from 1.35V to 3.1V
- No decoupling DC capacitors required if no DC applied on RF lines
Applications
- Smartphones, tablets and mobile phones
- Machine-to-machine devices
- Mobile data dongles for tablets and laptops
- Laptops
