Diodes Incorporated introduced the DMN10H120SFG MOSFET. This device is designed as a switch for IEEE 802.3 compliant 48 V Power-over-Ethernet (PoE) systems. This switch enables the delivery of power through the Ethernet cable to end-applications such as wireless access points, VoIP phones, point-of-sale terminals, call systems, IP security cameras and building management devices.

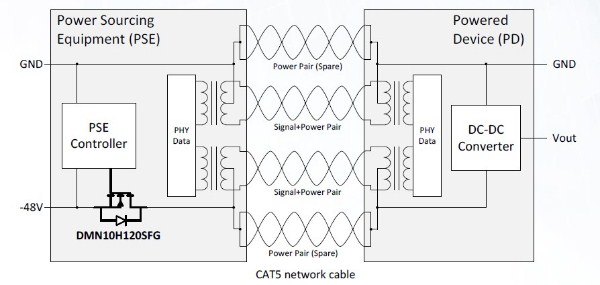

In power-sourcing equipment such as LAN routers and midspans, this 100 V N-channel MOSFET switches power to the CAT5 (or CAT6) network cable. The cable then provides both power and data, which reduces system costs by eliminating the power supply in the end-equipment. It also protects end-users because PoE operates between 44 V to 57 V, which meets the 60 V Safety Extra Low Voltage (SELV) rating, which removes the need for rigorous isolation and certification of end-equipment while also easing system maintenance. I2R losses are minimized when operating at these voltage levels and this helps maximize power delivery to the end-equipment and improve efficiency.
With a 100 V BVDSS rating the DMN10H120SFG MOSFET provides plenty of headroom for 48 V PoE operation. The DMN10H120SFG also offers an extended safe-operating-area (SOA) that can withstand the power dissipation due to short-circuit fault conditions, such as an Ethernet cable breaking, until the PSE controller detects the fault and switches off. During this fault condition the MOSFET goes into linear mode and needs to dissipate 30 W for at least 20 ms, which is achieved even with a +60 °C elevated operating temperature.
The DMN10H120SFG is offered in the space-saving PowerDI3333 package. Within its extensive 100 V DMN10H family, Diodes also offers SOT23, SOT223 and TO252 (DPAK) packages. The avalanche-rugged DMN10H099SK3, for example, in TO252 is 100% unclamped-inductive-switch (UIS) tested to ensure it can withstand the energy pulse in switching inductive loads such as coils, motors and relays.
