Linear Technology Corporation introduces the LTC2380-24, a breakthrough no latency 24-bit 2 Msps successive approximation register (SAR) analog-to-digital converter (ADC). The LTC2380-24 features an integrated digital filter that averages 1 to 65,536 conversion results real time, dramatically improving the dynamic range from 101 dB at 1.5 Msps to 145 dB at an output data rate of 30.5 sps. This makes the LTC2380-24 ideal for seismic, medical and many other applications demanding high dynamic range.
Using an onchip digital filter to average conversion results, the LTC2380-24 eliminates the processing burden from the digital host, conserving digital resources and the associated power. Moreover, the LTC2380-24 allows results to be read out with a serial clock as low as 2 MHz, easing interfacing to microprocessors, enabling use with slower devices. The LTC2380-24 achieves true 24-bit noise performance and features high DC accuracy with a maximum INL of ±3.5 ppm while dissipating 28 mW from a single 2.5 V supply.
The LTC2380-24 is available in small MSOP16 and 4 mm × 3 mm DFN-16 packages, priced starting at $31.95 each in 1,000 piece quantities. It is drop-in compatible with the LTC2378-20 family of 1 Msps 0.5 ppm INL no latency SAR ADCs, allowing easy system upgrades to 24 bits. Samples and demo boards may be requested at www.linear.com/product/LTC2380-24, or by contacting your local Linear Technology sales office.
 |

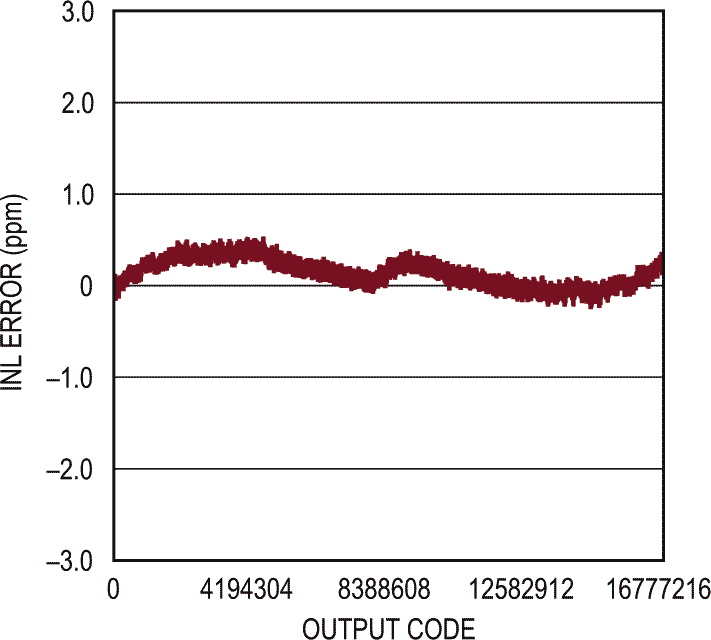

| Integral Nonlinearity vs Output Code. |
Summary of Features: LTC2380-24
- Guaranteed 24 Bit No Missing Codes
- Integrated Digital Filter
- 101 dB Dynamic Range (Typ) at 1.5 Msps
- 145 dB Dynamic Range (Typ) at 30.5 sps
- ±0.5 ppm INL (Typ)
- –117 dB THD (Typ) at fIN = 2 kHz
- Low Power: 28 mW at 2 Msps
- 50 Hz/60 Hz Rejection
- Single 2.5 V Supply
- 16-Lead MSOP & 4 mm × 3 mm DFN Packages
