Evaluation Kit Atmel SAMA5D34-EK

Detailed Description

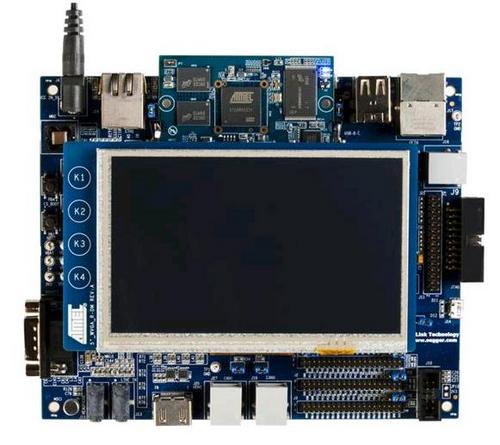

The kit consists of a main board, a computer module equipped with a SAMA5D34 processor, and a display module. It is supported by the SAMA5D3 Softpack, a free set of bare metal C examples, and is delivered with on-board demos for Linux and Qt-based GUI. The SAMA5D34-EK allows users to extensively evaluate, prototype and create applications that require graphics, audio, mass storage, networking, connectivity and more.

The Computer Module board (CM), is a single-board-computer that integrates all the core components and is mounted onto an application specific main board (MB). The Computer Module have specified pinouts based on the SODIMM200 connector. It provides the functional requirements for an embedded application. These functions include, but are not limited to, graphics, audio, mass storage, network and multiple serial and USB ports. A single SODIMM200 connector provides the main board interface to carry all the I/O signals to and from the Computer Module.

The Main Board (MB) provides all the interface connectors required to attach the system to the application specific peripherals. This versatility allows the designer to create a densely packed solution, which results in a more reliable product while simplifying system integration.

The Display Module board (DM) integrates LCD, TouchScreen and Qtouch technology.

Source files and binaries for the on-board demo are available on Linux4SAM, the entry point to open source solutions for Atmel ARM® core-based embedded microprocessors.

Key Features

• Atmel SAMA5D34 embedded MPU running at 536MHz in a BGA324 package
• 4Gb DDR2, 2Gb NAND Flash, 128Mb NOR , 32Mb SPI Serial DataFlash, 512Kb EEPROM
• JLink and CDC on-board, optional JTAG test access port
• MII/RMII Ethernet 10/100 w/PHY
• RGMII Ethernet 1Gb w/PHY
• Four-wire RS232
• Two USB 2.0 Hosts, one USB 2.0 Host/Device
• Conexant CX20548 SmartDAA for soft modem implementation
• MicroSD card slot
• MMC/MMC+/SD/SDIO/CE-ATA
• Headphone output, line in and microphone
• One 5.0” WVGA resistive TFT LCD module with four QTouch keys
• One ISI interface for connection to a CMOS sensor
• One HDMI interface
• One 10-pin connector for Atmel RZ600 ZigBee module
• Two CAN connectors

The Evaluation Kit includes:

• One SAMA5D3 series-MB (Main Board)
• CPU module (CM) SAMA5D34-CM
• One optional Display Module (DM) board 5"_WVGA_R-DM
• „ Power supply

  • One universal input AC/DC power supply with US, Europe and UK plug adapters
  • One 3V Lithium Battery type CR1225
• „ Cables

  • One micro A/B-type USB cable
  • One RJ45 crossed cable
• „ A Welcome Letter

SAMA5D34-EK User Guide and Main Board Schematic

atmel.com

Other Names:

SAMA5D34EK, SAMA5D34 EK
