Development Module FTDI MM900EV3A

Prices

Detailed Description

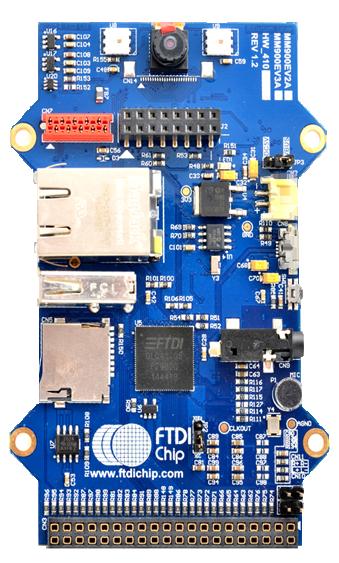

The MM900EV development modules provide full hardware feature support for the FT90x MCU in a variety of form factors.The modules also provide a connector for accessing external plug-in hardware over an SPI interface.

Targeted applications for the module include home security, HMI and automation systems,USB capability products, embedded multimedia applications and a range of other industrial control systems. The MM900EV2A comes equipped with a rear-facing CMOS camera.

An RJ45 connector allows 10/100Mbps Ethernet data transfer and extra memory capacity can be made available via the Micro SD card socket. The standard USB-A port (which provides the USB hosting) is complemented by a Micro-B USB port (which serves as a USB device port and a power source connection). A 40-way expansion connector enables access to the IC’s complete complement of IO, while a Micro-MaTch 2×5 female socket facilitates the debugging/downloading process. An additional two 8-pin 2.54mm pitch connectors and 16-pin 0.5mm pitch FFC/FPC connector permit interfacing with FT800/FT810 EVE display modules.

Key Features:

• FT90x 100-pin QFN package MCU.
• RJ45 with built in magnetics for 10/100Mbps Ethernet transfer.
• Standard USB-A connector to support USB device connection.
• Micro-B USB for connecting to a USB host or providing a power supply over USB.
• In built audio codec for stereo audio output with 3.5mm headphone jack and mono microphone input.
• Debugger interface for FT90x flash programming and EFUSE configuration.
• +5V alternative power supply DC connector.
• 2×5 pins 1.27mm pitch female Micro-MaTch connector for software download.
• 2×20 pins 2.54mm pitch female header support for external feature expansions.
• 24 pins 0.5mm pitch camera connector and two RGB LEDs (MM900EV2A/3A modules).
• MicroSD card socket supporting SD3.0 specification.
• 2×8 pins 2.54mm pitch dual entry female header and 16 pins 0.5mm pitch FFC/FPC connectors for SPI master to support LCD display modules.
• Rear-facing CMOS camera.
