Evaluation kit Atmel AT91SAM9263-EK

Detailed Description

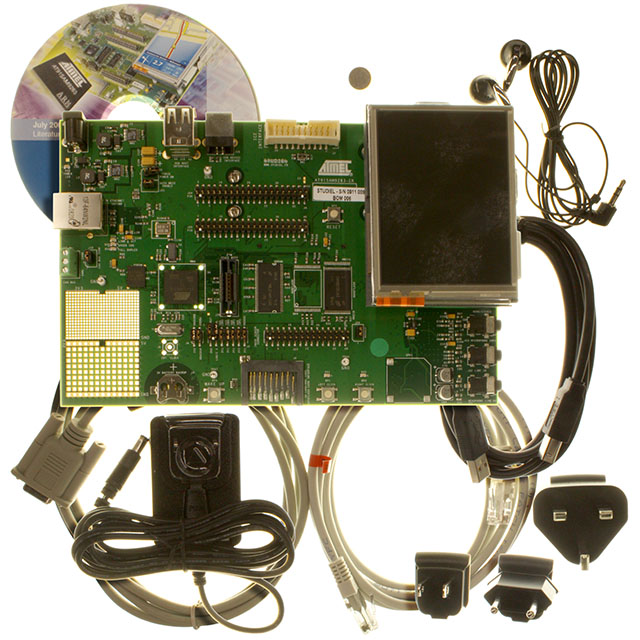

The board is equipped with an AT91SAM9263 (324-ball LFBGA package) together with the following:

• 64 Mbytes of SDRAM memory
• 4 Mbytes of PSRAM memory on EBI1
• 256 Mbytes of NANDFlash memory
• One NOR Flash memory (footprint only)
• One 1.8” Hard disk connectors
• One TWI serial memory
• One USB device port interface
• Two USB Host port interfaces
• One RS232 serial communication port
• One DBGU serial communication port
• One serial CAN 2.0B communication port
• One JTAG/ICE debug interface
• One Ethernet 100-base TX with three status LEDs
• One AC97 Audio DAC
• One 3.5" 1/4 VGA TFT LCD Module with TouchScreen and backlight
• One ISI connector (camera interface)
• One Power LED and two general-purpose LEDs
• Two user input push buttons
• One Wakeup input push button
• One reset push button
• One DataFlash/SD/SDIO/MMC card slot
• One SD/SDIO/MMC card slot
• One Lithium Coin Cell Battery Retainer for 12 mm cell size

The AT91SAM9263-EK package contains the following items:

• an AT91SAM9263-EK board
• one A/B-type USB cable
• one serial RS232 cable
• one RJ45 crossed Ethernet cable
• one DataFlash card
• one CD-ROM that allows the user to begin evaluating the AT91 ARM Thumb 32-bit microcontroller quickly.

Schematic diagram AT91SAM9263-EK board
