Gang Flash Programmer and JTAG In-Circuit Debugger Elprotronic USB-MSP430-FPA-GANG

Detailed Description

Features:

• Full Speed USB 1.1 (12 Mb/s) communication interface.
• Up to 6 MSP430Fxx can be programmed simultaneously from one GangPro430.
• Six MSP430 with 60 kB Flash each can be programmed via JTAG simultaneously in 5 seconds.
• 60 kB Flash can be erased, blank checked, programmed and verified in 8 seconds using JTAG interface, and in 12 seconds using BSL interface..
• Up to 64 GangPro430 can be connected to one PC.
• over 200 pcs of the MSP430 with 60 kB Flash each can be programmed simultaneously in 5 to 7 seconds using Multi-FPA API-DLL and 8 GangPro430 FPAs.
• Support the JTAG, Spy-Bi-Wire and BSL interfaces.
• Support all MSP430Fxx microcontrollers.

  See MSP430 list below.

• Automated DCO calibration - up to eight DCO frequency can be calibrated and related DCO registers saved in the FLASH INFO memory.
• Self Test program that allows to check programmer functionality with customer's fixture and target device.
• User defined programming sequence uses script file. No programming technique and language knowledge is required.
• No code size limitations.
• Blow the JTAG security fuse capability.
• Target device can be powered from the programming adapter (programmable Vcc from 2.2V to 3.6V step 0.2V) or from external source (2.2V to 3.6V).
• Easy to use WindowsTM based software.
• Programmer accept TI (*.txt), Motorola (*.s19, *.s28, *.s37), Intel (*.hex) and *.d43 and *.a43 data files for programming.
• Combine code files capability.
• New: Defined Check Sum calculation (Sum, CRC16, CRC32). Up to four CS banks can be specified.
• Open/Save Project with encryption and password protection.
• Lock setup capability, useful in production.
• Unique serial number assign capability. Software package can assign and automatically increment serial number, model type and revision. Serial Number with or without an automatically inserted current date can be stored in the FLASH memory in HEX, BCD or ASCII format.
• Log file capability allowing to review information about the flashed target devices.
• Can be connected to the single target device with the standard TI's JTAG pinhead connector. FlashPro430 software can be used with the GangPro430 programming adapter to reach a single target device.
• MSP430.DLL library allows use the USB-MSP430-FPA as an JTAG In-Circuit Debugger like a FET (Flash Emulation Tool) with CCE,, IAR, CrossWorks ,Quadravox, or NoICE IDE debugging software.
• The USB-MSP430-FPA-GANG adapter can be used with the FlashPro430 software that allows to access only one target device via JTAG interface. See the FlashPro430 feature for details with JTAG communication speed 1Mb/s and 400kb/s.
• Multi-FPA API-DLL software package can control up to eight GangPro430 FPAs (working simultaneously) from other programs. Using eight GangPro430 FPAs the programming time of the 48 target devices is almost the same like programming time of the six target devices programmed from one FPA.
• Perfect for production usage.
• Fast MSP430 Flash ProgrammerCommand line interpreter shell for the Multi-FPA API-DLL that allows to use the command prompt technique for remote control up to eight GangPro430 FPAs (working simultaneously).
• MyGP430Prg software package in Visual C++ and Visual Basic 6.0 intendend to help users create their own application uses API-DLL by providing a simple starting point.
• Source code for the Multi-FPA API-DLL demo written in Visual C++.net, Visual Basic.net, LABView 7.1, and for the DOS-command application. Download fully functional software from our website and try it.
• Programmer has been tested and found to comply with FCC and CE requirements. See attached reports:
• FCC-1, FCC-2, FCC-3, CE-1, CE-2

List of the supported MSP430 processors:

• MSP430F110, MSP430F1101, MSP430F1101A, MSP430F1111A, MSP430F112, MSP430F1121, MSP430F1121A, MSP430F1122, MSP430F1132, MSP430F122, MSP430F1222, MSP430F123, MSP430F1232, MSP430F133, MSP430F135, MSP430F147, MSP430F148, MSP430F149, MSP430F1471, MSP430F1481, MSP430F1491, MSP430F155, MSP430F156, MSP430F157, MSP430F167, MSP430F168, MSP430F169, MSP430F1610, MSP430F1611, MSP430F1612
• MSP430F2001, MSP430F2002, MSP430F2003, MSP430F2011, MSP430F2012, MSP430F2013, MSP430F2101, MSP430F2111, MSP430F2112, MSP430F2121, MSP430F2122, MSP430F2131, MSP430F2132, MSP430F2232, MSP430F2234, MSP430F2252, MSP430F2254, MSP430F2272, MSP430F2274, MSP430F233, MSP430F235, MSP430F2330, MSP430F2350, MSP430F2370, MSP430F2410, MSP430F2416, MSP430F2417, MSP430F2418, MSP430F2419, MSP430F247, MSP430F2471, MSP430F248, MSP430F2481, MSP430F249, MSP430F2491, MSP430F2616, MSP430F2617, MSP430F2618, MSP430F2619
• MSP430F412, MSP430F413, MSP430F4132, MSP430F415, MSP430F4152, MSP430F417, MSP430F423, MSP430F4230, MSP430F423A, MSP430F425, MSP430F4250, MSP430F425A, MSP430F4260, MSP430F427, MSP430F4270, MSP430F427A, MSP430F435, MSP430F4351, MSP430F436, MSP430F4361, MSP430F437, MSP430F4371, MSP430F447, MSP430F448, MSP430F449, MSP430F47166, MSP430F47167, MSP430F47176, MSP430F47177, MSP430F47186, MSP430F47187, MSP430F47196, MSP430F47197, MSP430F477, MSP430F478, MSP430F4783, MSP430F4784, MSP430F4793, MSP430F4794, MSP430FE423, MSP430FE423A, MSP430FE4232, MSP430FE4242, MSP430FE425, MSP430FE425A, MSP430FE4252, MSP430FE427, MSP430FE427A, MSP430FG4250, MSP430FG4260, MSP430FG4270, MSP430FG437, MSP430FG438, MSP430FG439, MSP430FG4616, MSP430FG4617, MSP430FG4618, MSP430FG4619, MSP430FG477, MSP430FG478, MSP430FG479, MSP430FW423, MSP430FW425, MSP430FW427
• MSP430F5131, MSP430F5132, CC430F5133, CC430F5135, CC430F5137, MSP430F5151, MSP430F5152, MSP430F5171, MSP430F5172, MSP430F5418, MSP430F5418A, MSP430F5419, MSP430F5419A, MSP430F5435, MSP430F5435A, MSP430F5436, MSP430F5436A, MSP430F5437, MSP430F5437A, MSP430F5438, MSP430F5438A, MSP430F5510, MSP430F5513, MSP430F5514, MSP430F5515, MSP430F5517, MSP430F5519, MSP430F5521, MSP430F5522, MSP430F5524, MSP430F5525, MSP430F5526, MSP430F5527, MSP430F5528, MSP430F5529, MSP430F5630, MSP430F5631, MSP430F5632, MSP430F5633, MSP430F5634, MSP430F5635, MSP430F5636, MSP430F5637, MSP430F5638
• CC430F6125, CC430F6126, CC430F6127, CC430F6135, CC430F6137, MSP430F6630, MSP430F6631, MSP430F6632, MSP430F6633, MSP430F6634, MSP430F6635, MSP430F6636, MSP430F6637, MSP430F6638

Package contains:

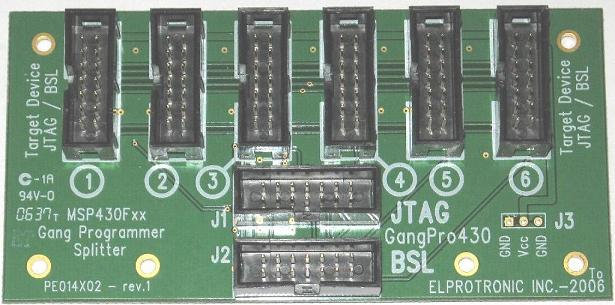

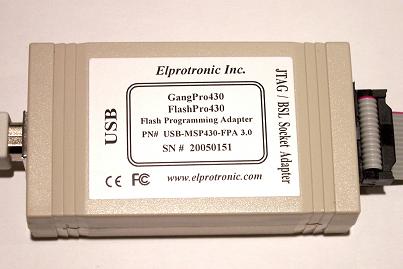

• USB GangPro430 programming adapter
• USB and JTAG/BSL cable
• CD with software and documentation
  • GangPro430-JTAG software with serialization
  • GangPro430-BSL software without serialization
  • FlashPro430-JTAG software with serialization
  • MSP430.dll for debugging (JTAG In-Circuit Debugger) with IAR-IDE etc.
  • Multi-FPA API-DLL for remote control (Gang and Single options).

Other Names:

USBMSP430FPAGANG, USB MSP430 FPA GANG
