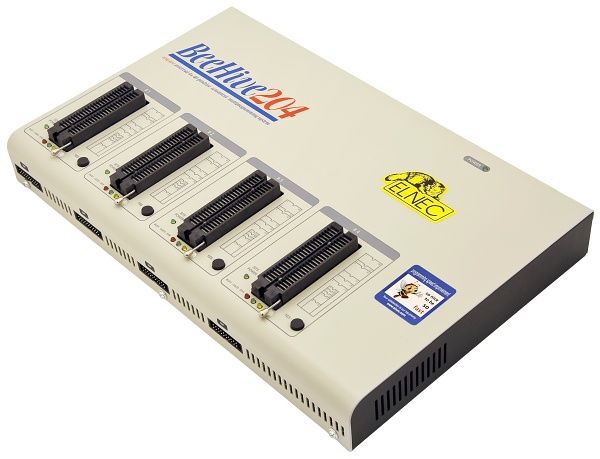

Universal multiprogramming system Elnec BeeHive204

Detailed Description

Short description:

• 53530 supported devices by 2.69 version of SW (6.

  May. 2010)

• Four independent universal programming modules (BeeProg2 based) in one unit
• two BeeHive204 multiprogrammers can be attached to one PC to better utilize programming workplace
• extremely fast programming, one of the fastest programmers in this category. Programs 64Mbit NOR Flash memory less than 9 seconds and 1Gbit NAND Flash less than 70 sec.
• powerful independent pin driver circuit for each and every pin of the programmer
• in-circuit programming capability through ISP connector
• Very low voltage support for latest Flash memory chips
• ESD protection on each pin of the sockets
• USB (up to 480 Mbit/s) interface to PC
• comfortable and easy to use control program, Windows 98/Me/NT/2000/XP/2003/XPx64/Vista/7 compatible
• unique quick reaction to customer's needs - software update can be ready within a day from request by OnDemand software
• warranty - 3 years

Features
GENERAL

• BeeHive204 programmer is practically identical with the BeeHive4+ programmer, difference is "only" much higher programming speed (20-70%) of high-capacity memories.
• BeeHive204 is extremely fast universal 4×48-pindrive concurrent multiprogramming system designed for high volume production programming with minimal operator effort. The chips are programmed at near theoretical maximum programming speed.
• BeeHive204 consists of four independent isolated universal programming modules, based on the BeeProg2 programmer hardware. Therefore the sockets can run asynchronously (concurrent programming mode). Each programming module starts programming at the moment the chip is detected to be inserted in the socket properly - independently on the status of other programming modules. It result, three programming modules works while you replace the programmed chip at the fourth.
• Modular construction of hardware - the programming modules works independently - allows for continuing operation when a part of the circuit becomes inoperable. It also makes service quick and easy.
• Hands-free operation: asynchronous and concurrent operation allows a chip to begin programming immediately upon insertion of a chip. The operator merely removes the finished chip and inserts a new chip. Operator training is therefore minimized.
• Supports all kinds of types and silicon technologies of today and tomorrow programmable devices without family-specific module. You can be sure the next devices support require the software update and (if necessary) simple package convertor (programming adapter), therefore the ownership cost are minimized.
• Using built-in in-circuit serial programming (ISP) connector, the programmer is able to program ISP capable chips in circuit.
• Provides very competitive price coupled with excellent hardware design for reliable programming. Probably best "value for money"programmer in this class.
• Very fast programming due to high-speed FPGA driven hardware and execution of time-critical routines inside of the programmer. At least fast than competitors in this category, for many chips much faster than most competitors. As a result, when used in production this programmer waits for an operator, and not the other way round.
• BeeHive204 interfaces with the IBM PC compatible, portable or desktop personal computers through USB (2.0) port.
• Banana jack for ESD wrist straps connection to easy-to-implement the ESD protection control.

HARDWARE (valid for each programming module)

• FPGA based totally reconfigurable 48 powerful TTL pindrivers provide H/L/pull_up/pull_down and read capability for each pin of socket. Advanced pindrivers incorporate high-quality high-speed circuitry to deliver signals without overshoot or ground bounce for all supported devices. Pin drivers operate down to 1.8V so you'll be ready to program the full range of today's advanced low-voltage devices.
• Each programming module performs device insertion test (wrong or backward position) and contact check (poor contact pin-to-socket) before it programs each device. These capabilities, supported by overcurrent protection and signature-byte check help prevent chip damage due to operator error.
• The selftest capability allow to run diagnostic part of software to thoroughly check the health of the each programming module.
• Built-in protection circuits eliminate damage of the programming module and/or programmed device due to environment or operator failure. All ZIF socket pins inputs and all pins of ISP conncetor of BeeHive204 programmer are protected against ESD up to 15kV.
• BeeHive204 programmer performs programming verification at the marginal level of supply voltage, which, obviously, improves programming yield, and guarantees long data retention.
• Various socket converters are available to handle device in PLCC, SOIC, PSOP, SSOP, TSOP, TSSOP, TQFP, QFN (MLF), SDIP, BGA and other packages.

Specification (valid for each programming module)

• Base unit, DACs
  • USB 2.0 high-speed compatible port, up to 480 Mbit/s transfer rate
  • on-board intelligence: powerful microprocessor and FPGA based state machine
  • three D/A converters for VCCP, VPP1, and VPP2, controllable rise and fall time
  • VCCP range 0..8V/1A
  • VPP1, VPP2 range 0..26V/1A
  • autocalibration
  • selftest capability
• ZIF sockets, pindriver
  • 48-pin DIL ZIF (Zero Insertion Force) socket accepts both 300/600 mil devices up to 48-pin
  • pindrivers: 48 universal
  • VCCP/VPP1/VPP2 can be connected to each pin
  • perfect ground for each pin
  • FPGA based TTL driver provides H, L, CLK, pull-up, pull-down on all pindriver pins
  • analog pindriver output level selectable from 1.8 V up to 26V
  • current limitation, overcurrent shutdown, power failure shutdown
  • ESD protection on each pin of socket (IEC1000-4-2: 15kV air, 8kV contact)
  • continuity test: each pin is tested before every programming operation
• ISP connector
  • 20-pin male type with missinsertion lock
  • 6 TTL pindrivers, provides H, L, CLK, pull-up, pull-down; level H selectable from 1.8V up to 5V to handle all (low-voltage including) devices.
  • 1x VCCP voltage (range 2V..7V/100mA), can be applied to two pins
  • programmed chip voltage (VCCP) with both source/sink capability and voltage sense
  • 1x VPP voltage (range 2V..25V/50mA), can be applied to six pins
  • target system supply voltage (range 2V..6V/250mA)
  • ESD protection on each pin of ISP connector (IEC1000-4-2: 15kV air, 8kV contact)
  • two output signals, which indicate state of work result = LED OK and LED Error (active level: min 1.8V)
  • input signal, switch YES! equivalent (active level: max 0.8V)
