In Circuit Emulator for Atmel AVR microcontrollers Propox JTAGcable II

JTAGcable II is a tool for programming, real-time emulation in the target circuit and debugging of processors of the AVR family of Atmel microprocessors, equipped with an JTAG interface.

Detailed Description

It is fully compatible with the original AVR JTAG ICE from Atmel. Together with AVRStudio forms an up-to-date and professional environment for the start-up of programs written both in low-level (Assembler) and high-level (C) languages.

JTAG is a four-wire interface permitting takeover of control of the processor's core and its internal peripherals. The possibilities offered by this interface are, among others, stepped operation, operation at full speed, circuit and software traps, monitoring and modification of register contents and data memories. Moreover, functions offered by ISP programmers are available, such as: programming and read-out of Flash memories, EEPROM, fuse-and-lock bits.

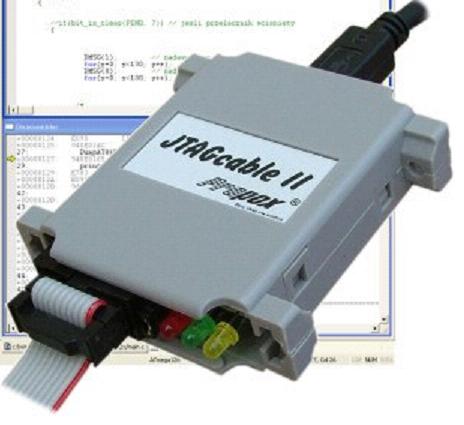

Propox JTAG-Cable2

JTAGcable II can co-operate with microcontrollers supplied with voltages from 1.8 to 6 V. Such a broad range of supply voltages was achieved through buffering of signals on the JTAG line, additionally enhancing the immunity of the circuit to interference. The set is provided with AVRStudio software from Atmel, working in the Windows system.

Features:

Compatible with AVR JTAG ICE
Co-operates with Atmel AVRStudio software
Allows emulation and programming in AVR microprocessor systems equipped with a JTAG interface
Allows debugging of a code written both in Assembler- and C-language
Connection to PC through USB port
Supports software upgradeing from the AVRStudio level
Operates with target voltages in the range of 1.8 - 6 V
Buffering of the JTAG bus, allowing proper operation with systems powered from a broad range of supply voltages and enhancing immunity to external interference
Operation of the emulator signalled by three built-in LED indicators
Standard 10-pin connector to the target circuit in the Atmel standard
No need for external power supply, power is taken from USB
The programmer can supply power to target circuit
Small dimensions

JTAG connector
