Developer's Starter Kit Freescale 13192DSK
The MC13192 RF Daughter Card (13192RFC-A00) is used in conjunction with a microcontroller development board for RFIC evaluation, code development, and system evaluation.
Detailed Description

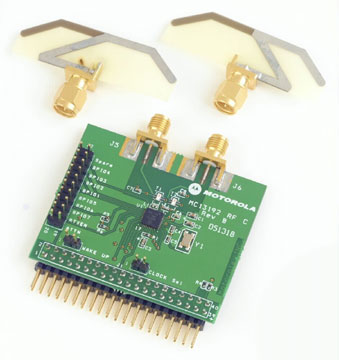

It interfaces directly to the M68EVB908GB60 HCS08 family Microcontroller Development Board but it can be adapted to other boards that offer access to the MCU input/output ports. The RF Daughter Card is configured with all the off-chip circuitry required for functional performance of the MC13192 RF data modem except the MCU. The MCU interface required by the RFIC is pinned out at the edge of the card using standard header pins. The RF interface is accomplished through SMA connectors for the TX and RX ports. The SMA connectors can be connected to test equipment using coax cables for testing or connected to screw-on antennas (two provided) for testing purposes.
Features
- Compliant with the IEEE 802.15.4 standard and ZigBee technology-ready
- Operates in the 2.4 GHz frequency band
- Comprehensive transceiver data modem with fully packetized data out
- Low number of external components. Includes on-chip low-noise amplifier, 1.0 mW power amplifier, voltage controlled oscillator, full spread-spectrum encoding and decoding compatible with the IEEE 802.15.4 standard
- Engineered to support 250 Kbps O-QPSK data in 2.0 MHz channels, per the IEEE 802.15.4 specification
- Sixteen dynamically selectable channels
- Low power consumption
- Multiple power-down modes enabling standard alkaline battery lifetimes from months to years
- Power supply range: 2.0V to 3.4V operating voltage with on-chip regulator
- Data and control interface via standard serial peripheral interface (SPI)
- Programmable clock output that can be used by MCU
- Extended temperature operation range: -40ºC to +85ºC
- 5 mm x 5 mm QFN-32 Pb-free package ZigBee Technology
