Evaluation Kit TechToys LVC75Z779 Eval Board

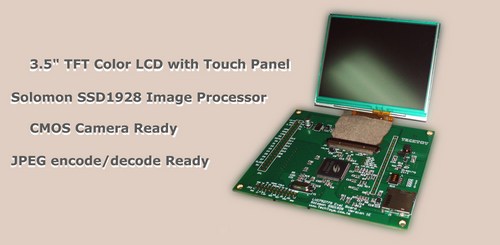

The part number LVC75Z779 Eval Board (Version 1E) is a development board for 3.5” 16.7m color QVGA TFT-LCD module with Touch Panel integrated.
Detailed Description
It is completed with an external image processor Solomon SSD1928, microSD card connector, header for CMOS camera module, and backlight driving circuit. Standardized footprint for 2.54mm PCB header is provided to allow you to do prototype in a handy way. SSD1928 is able to interface with different type of generic microcontrollers as low as an 8-bit, low-pin-count microcontroller without paying much attention to generation of timing signals that are required to drive larger LCD displays. On top, there are the hardware JPEG codec and camera interface built-in the image processor which make this development board ideal for design of hand-held Digital Photo Viewer, GPS, PDA, and a lot more small-sized control devices.
Features
- 3.5" QVGA 16.7 million color TFT-LCD module with Touch Panel integrated
- 240×RGB×320 pixels
- 8-bit or 16-bit interface for microcontrollers
- Onboard Solomon SSD1928 Image Processor
- CMOS Camera interface
- SD Card interface for jpeg images encode and decode
- Single 3.3V operation
- 95mmx80mm, 1.6mm thickness FR-4 PCB
- Standard 2.54mm header for microcontroller connection
- Standard 2.00mm header for CMOS camera connection
- CD-ROM supplied for critical datasheet
