Evaluation Kit Texas Instruments CC1150EMK-433

Detailed Description

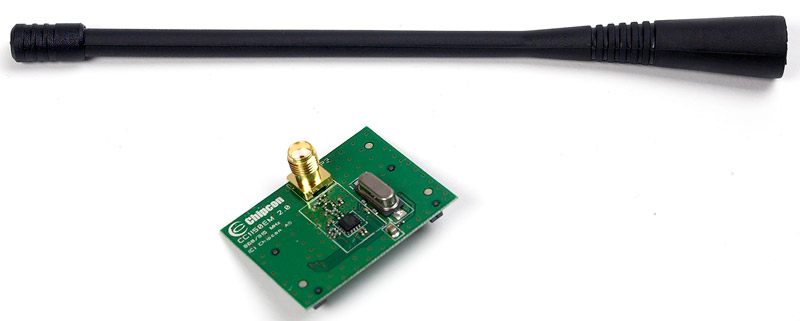

This evaluation kit includes one CC1150EM 433 MHz modules and antenna.

The CC1150EMs are add-on daughter boards that require a CC1100-1150DK development kit for evaluation and development.

• Evaluate the SmartRF04 products. Right out of the box, the user can do range testing (PER testing) and transfer data from one PC to another using the SmartRF04DK. This enables the user to quickly find out how well the SmartRF04 products fit the intended application. A number of demonstration applications serve to highlight the innovative features of the SmartRF04 ICs.
• Perform RF measurements. Using SmartRF Studio, the user can configure the radio ICs with parameters that suit the intended application and easily measure sensitivity, output power and other RF parameters.
• Develop a prototype. The smartRF04DK includes a Silicon Labs 8051 core MCU with 16 kB of program memory and 1 kB of data memory. By programming this MCU and utilizing the various peripherals included on the Evaluation Board, the user can easily make a prototype of the intended application. All signals are brought out on 0.1" pin-row connectors so easy connection of other required circuitry is possible. These connectors are also compatible with Agilent logic analyser probes for easy debugging. It is also possible to disconnect the Silicon Labs MCU from the EVM board, and connect a MCU selected by the user to the I/O connectors.

Features

• Small size (QLP 4×4 mm package, 16 pins)
• True single chip UHF RF transmitter
• Frequency bands: 300-348 MHz, 400-464 MHz and 800-928 MHz
• Programmable data rate up to 500 kBaud
• Low current consumption
• Programmable output power up to +10 dBm for all supported frequencies
• Programmable baseband modulator
• Ideal for multi-channel operation
• Very few external components: Completely on-chip frequency synthesizer, no external filters needed
• Configurable packet handling hardware
• Suitable for frequency hopping systems due to a fast settling frequency synthesizer
• Optional Forward Error Correction with interleaving
• 64-byte TX data FIFO
• Suited for systems compliant with EN 300 220 and FCC CFR Part 15
• Many powerful digital features allow a high-performance RF system to be made using an inexpensive microcontroller
• Efficient SPI interface: All registers can be programmed with one "burst" transfer
• Integrated analog temperature sensor
• Lead-free "green" package
• Flexible support for packet oriented systems: On chip support for sync word insertion, flexible packet length and automatic CRC handling
• OOK and flexible ASK shaping supported

ti.com

Other Names:

CC1150EMK433, CC1150EMK 433
