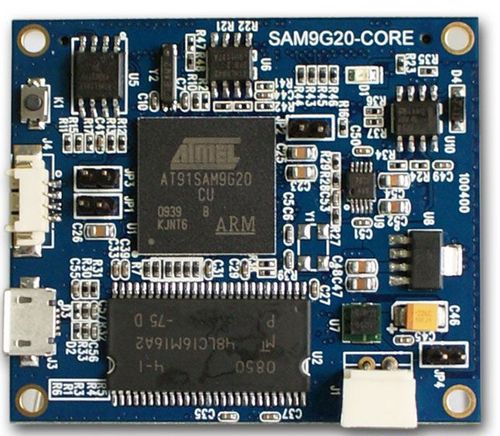

Core Board Embest MBC-SAM9G20
The ATMEL MBC-SAM9G20 is a ARM9 module board produced by Embest, built in with powerful ATMEL AT91SAM9G20 embedded microprocessor which is based on the integration of an ARM926EJ-S core with fast SRAM and a wide range of peripherals.
Detailed Description
The board supports Linux2.6 and WinCE6.0, and incorporates plenty of external memories: 4MB DataFlash, 256MB NandFlash, 64KB EEPROM and 64MB SDRAM.
Measuring only 45mm x 52mm, it is an ideal smart processor card easy to integrate in your solution, or a minimum system and/or a reference board for your next design.
This core board is an ARM9 minimum system to start learning and developing an ARM9 application, it is also an idea ARM9 card to integrate into your product. And it can be used to evaluate your application base on one of the mother board (MBM-SAM-9G), which is led out most signals of ATMEL AT91SAM9G20, like UART, Ethernet, LCD, Touch Screen, USB Host, USB Device, ADC, DAC, SPI, SDIO, GPIOs and so on.
Features
- Processor: Atmel AT91SAM9G20 ( based on ARM926EJ-S Core), 400MHz - 32 KBytes Data Cache, 32 KBytes Instruction Cache, with MMU - Internal memory: one 64KB ROM and one 16KB SRAM
- External memory: 4MB DataFlash,256MB NandFlash,64KB EEPROM and 64MB SDRAM
- One Micro USB connector
- One UART Serial Port (TTL Level)
- Embedded OS: Preinstalled Linux2.6, support WinCE6.0 (BSP, optional)
- Power supply: 5V
- Temperature range: -20 to +70 Celsius
- The module is led out most signals of Atmel AT91SAM9G20, like UART, Ethernet, LCD, Touch Screen, USB Host, USB Device, ADC, DAC, SPI, SDIO, GPIO and so on.
Package List
- One MBC-SAM9G20 Core board
- One IDC4 to Line: UART TTL wire
- One MicroUSB Cable: MiniUSB(B) to USB(A)
Other Names:
MBCSAM9G20, MBC SAM9G20
