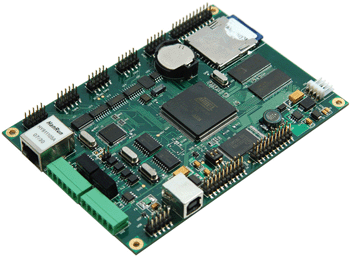

Single Board Computer Embest SAM9260V1

Detailed Description

General Description
Embest SAM9260V1 is a highly integrated single board computer supporting Atmel AT91SAM9260, an ARM926EJ-S based high-performance 32-bit RISC Microcontroller with Thumb extensions, 32Kbytes ROM and 8Kbytes SRAM.

It has additional 64Mbyte SDRAM, 2Mbyte Nor Flash, 64Mbyte Nand Flash, 2Mbyte Serial DataFlash, 32Kbite EEPROM on board and extensive peripheral set including USB, Ethernet, CAN, SD, Serial ports, RTC, Watchdog, ADC, LED, GPIO and JTAG. The board takes full feature of the AT91SAM9260 and is specially targeted at highly connected image processing applications, such as point-of-sale terminals, Ethernet-based IP cameras, and bar code readers.

Embest provides Linux2.6.19 BSP with this board, along with tools, documents and it would be a solid reference board for customers and you can use it already for your next design if cater to your requirement.

Hardware Features

• Dimensions: 146mm × 101.6mm
• Power supply: +9V~12V
• Working temperature: -20~70°C
• Processor: Atmel AT91SAM9260 (ARM926EJ-S core with MMU, 8Kbytes of SRAM and 32Kbytes of ROM, capable of 180 MHz operation)
• 64Mbyte SDRAM
• 64Mbyte Nand Flash (support up to 128Mbyte/256Mbyte for options, bootable)
• 2Mbyte Nor Flash (supporting selectable external booting)
• 2Mbyte SPI DataFlash (supporting selectable internal booting)
• 32Kbit EEPROM
• 1 10M/100M Ethernet port (RJ45)
• 5 serial ports (One 9-wire COM, Two 5-wire COMs, Two 3-wire COMs)
• 1 USB2.0 full-speed (12 Mbits/S) Host ports
• 1 USB2.0 full-speed (12Mbits/S) Device port
• 2 CAN-Bus interfaces with photocouplers and DC-DC modules
• 2-channel 10-bit ADC module
• Two three-channel timer/counters, Watchdog timer
• RTC (battery backed)
• SD card socket
• LEDs
• 3 GPIOs
• 20-pin JTAG interface
