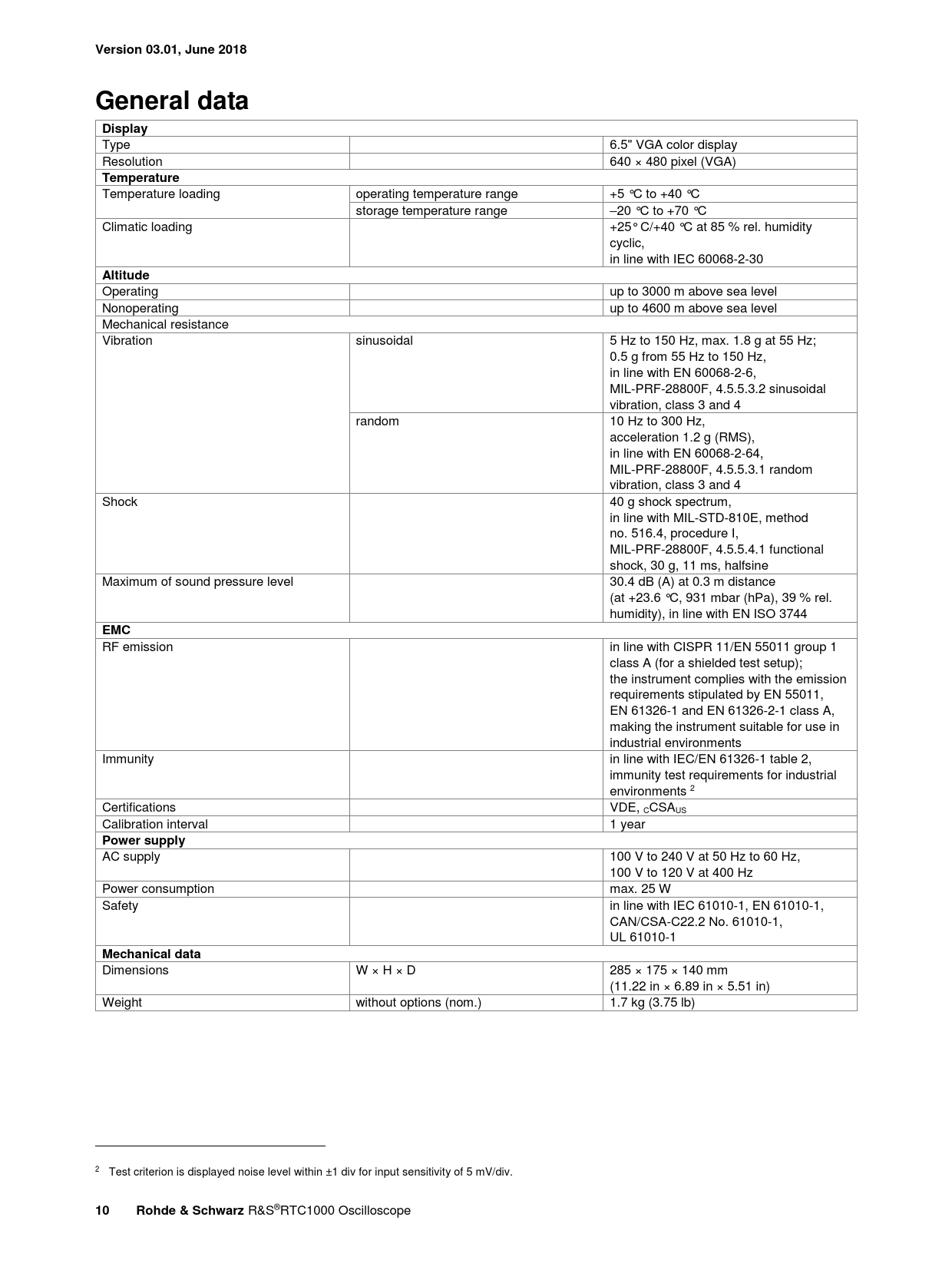

Version 03.01, June 2018 General data Display
Type 6.5" VGA color display Resolution 640 × 480 pixel (VGA)
Temperature
Temperature loading operating temperature range +5 °C to +40 °C storage temperature range –20 °C to +70 °C Climatic loading +25° C/+40 °C at 85 % rel. humidity cyclic, in line with IEC 60068-2-30
Altitude
Operating up to 3000 m above sea level Nonoperating up to 4600 m above sea level Mechanical resistance Vibration sinusoidal 5 Hz to 150 Hz, max. 1.8 g at 55 Hz; 0.5 g from 55 Hz to 150 Hz, in line with EN 60068-2-6, MIL-PRF-28800F, 4.5.5.3.2 sinusoidal vibration, class 3 and 4 random 10 Hz to 300 Hz, acceleration 1.2 g (RMS), in line with EN 60068-2-64, MIL-PRF-28800F, 4.5.5.3.1 random vibration, class 3 and 4 Shock 40 g shock spectrum, in line with MIL-STD-810E, method no. 516.4, procedure I, MIL-PRF-28800F, 4.5.5.4.1 functional shock, 30 g, 11 ms, halfsine Maximum of sound pressure level 30.4 dB (A) at 0.3 m distance (at +23.6 °C, 931 mbar (hPa), 39 % rel. humidity), in line with EN ISO 3744
EMC
RF emission in line with CISPR 11/EN 55011 group 1 class A (for a shielded test setup); the instrument complies with the emission requirements stipulated by EN 55011, EN 61326-1 and EN 61326-2-1 class A, making the instrument suitable for use in industrial environments Immunity in line with IEC/EN 61326-1 table 2, immunity test requirements for industrial environments 2 Certifications VDE, CCSAUS Calibration interval 1 year
Power supply
AC supply 100 V to 240 V at 50 Hz to 60 Hz, 100 V to 120 V at 400 Hz Power consumption max. 25 W Safety in line with IEC 61010-1, EN 61010-1, CAN/CSA-C22.2 No. 61010-1, UL 61010-1
Mechanical data
Dimensions W × H × D 285 × 175 × 140 mm (11.22 in × 6.89 in × 5.51 in) Weight without options (nom.) 1.7 kg (3.75 lb) 2 Test criterion is displayed noise level within ±1 div for input sensitivity of 5 mV/div.
10 Rohde & Schwarz
R&S®RTC1000 Oscilloscope
Type 6.5" VGA color display Resolution 640 × 480 pixel (VGA)
Temperature
Temperature loading operating temperature range +5 °C to +40 °C storage temperature range –20 °C to +70 °C Climatic loading +25° C/+40 °C at 85 % rel. humidity cyclic, in line with IEC 60068-2-30
Altitude
Operating up to 3000 m above sea level Nonoperating up to 4600 m above sea level Mechanical resistance Vibration sinusoidal 5 Hz to 150 Hz, max. 1.8 g at 55 Hz; 0.5 g from 55 Hz to 150 Hz, in line with EN 60068-2-6, MIL-PRF-28800F, 4.5.5.3.2 sinusoidal vibration, class 3 and 4 random 10 Hz to 300 Hz, acceleration 1.2 g (RMS), in line with EN 60068-2-64, MIL-PRF-28800F, 4.5.5.3.1 random vibration, class 3 and 4 Shock 40 g shock spectrum, in line with MIL-STD-810E, method no. 516.4, procedure I, MIL-PRF-28800F, 4.5.5.4.1 functional shock, 30 g, 11 ms, halfsine Maximum of sound pressure level 30.4 dB (A) at 0.3 m distance (at +23.6 °C, 931 mbar (hPa), 39 % rel. humidity), in line with EN ISO 3744
EMC
RF emission in line with CISPR 11/EN 55011 group 1 class A (for a shielded test setup); the instrument complies with the emission requirements stipulated by EN 55011, EN 61326-1 and EN 61326-2-1 class A, making the instrument suitable for use in industrial environments Immunity in line with IEC/EN 61326-1 table 2, immunity test requirements for industrial environments 2 Certifications VDE, CCSAUS Calibration interval 1 year
Power supply
AC supply 100 V to 240 V at 50 Hz to 60 Hz, 100 V to 120 V at 400 Hz Power consumption max. 25 W Safety in line with IEC 61010-1, EN 61010-1, CAN/CSA-C22.2 No. 61010-1, UL 61010-1
Mechanical data
Dimensions W × H × D 285 × 175 × 140 mm (11.22 in × 6.89 in × 5.51 in) Weight without options (nom.) 1.7 kg (3.75 lb) 2 Test criterion is displayed noise level within ±1 div for input sensitivity of 5 mV/div.
10 Rohde & Schwarz
R&S®RTC1000 Oscilloscope
