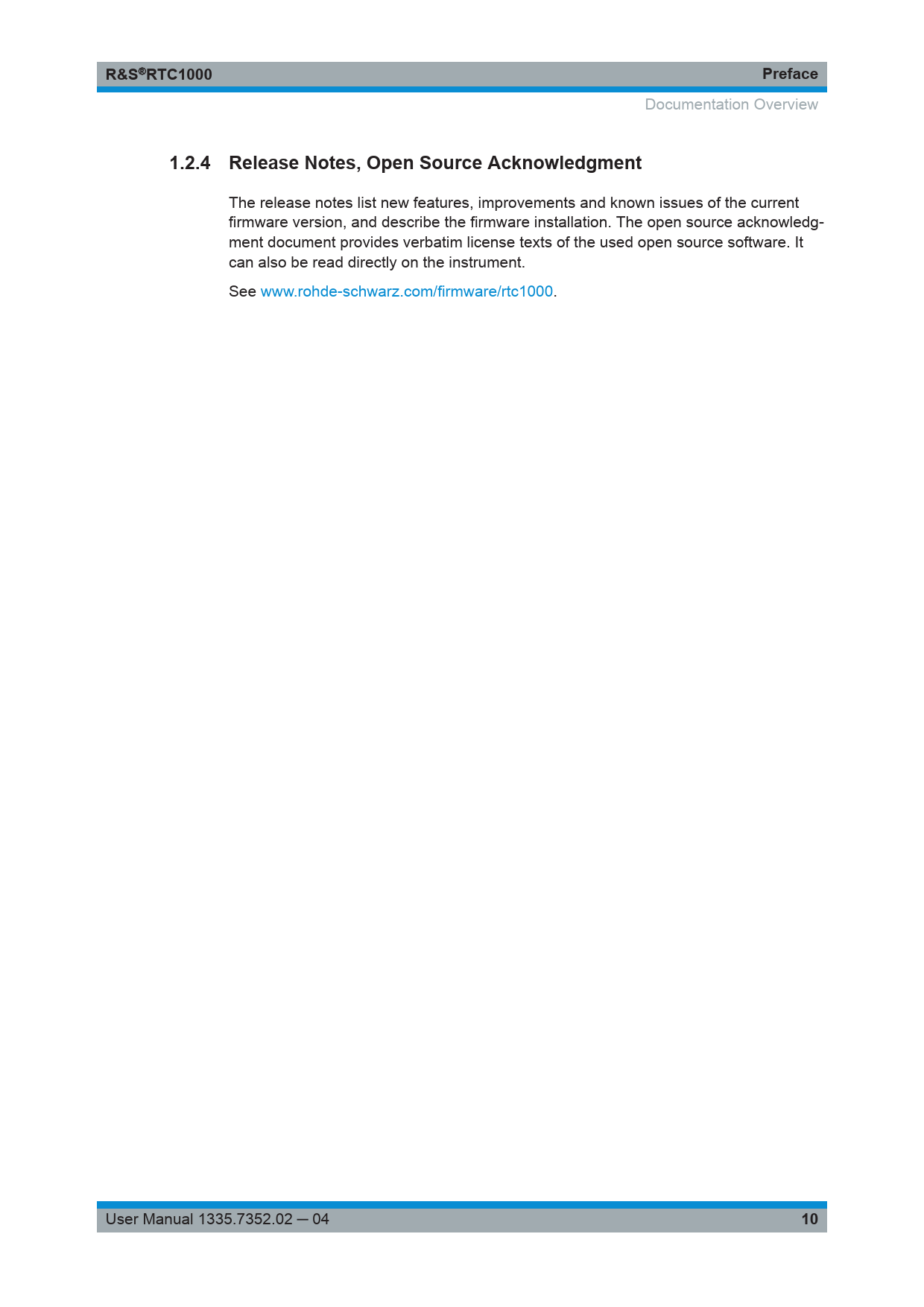

RTC1000 Preface
Documentation Overview
1.2.4 Release Notes, Open Source Acknowledgment
The release notes list new features, improvements and known issues of the current firmware version, and describe the firmware installation. The open source acknowledg- ment document provides verbatim license texts of the used open source software. It can also be read directly on the instrument. See www.rohde-schwarz.com/firmware/rtc1000. User Manual 1335.7352.02 ─ 04
