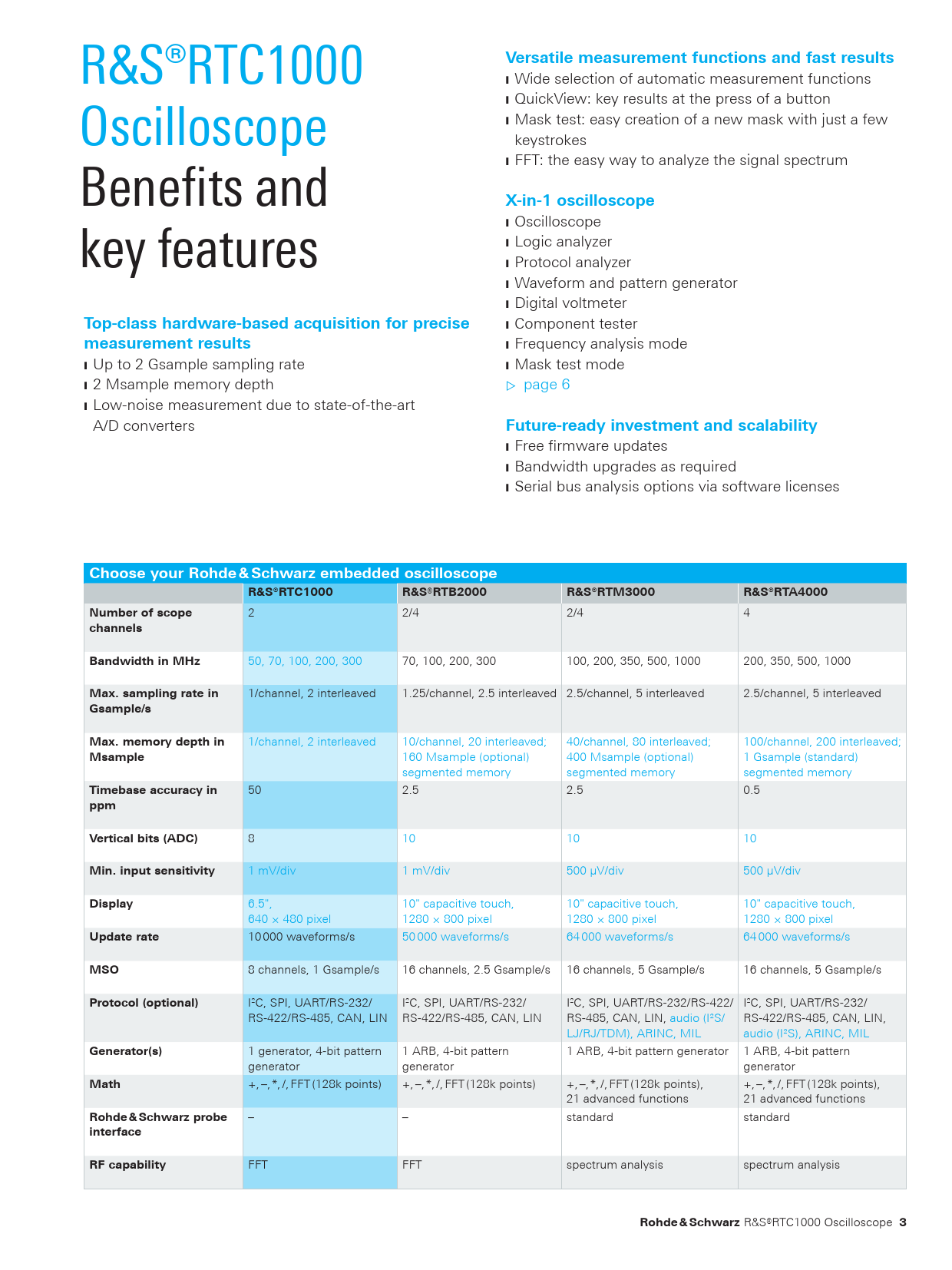

Versatile measurement functions and fast results. X-in-1 oscilloscope. Top-class hardware-based acquisition for precise
Text Version of Document
R&S®RTC1000
Versatile measurement functions and fast results
❙Wide selection of automatic measurement functions Oscilloscope ❙QuickView: key results at the press of a button ❙Mask test: easy creation of a new mask with just a few keystrokes Benefits and ❙FFT: the easy way to analyze the signal spectrum
X-in-1 oscilloscope
key features ❙Oscilloscope ❙Logic analyzer ❙Protocol analyzer ❙Waveform and pattern generator ❙Digital voltmeter
Top-class hardware-based acquisition for precise
❙Component tester
measurement results
❙Frequency analysis mode ❙Up to 2 Gsample sampling rate ❙Mask test mode ❙2 Msample memory depth ▷ page 6 ❙Low-noise measurement due to state-of-the-art A/D converters
Future-ready investment and scalability
❙Free firmware updates ❙Bandwidth upgrades as required ❙Serial bus analysis options via software licenses
Choose your Rohde & Schwarz embedded oscilloscope R&S®RTC1000 R&S
®
RTB2000 R&S®RTM3000 R&S®RTA4000 Number of scope
2 2/4 2/4 4
channels Bandwidth in MHz
50, 70, 100, 200, 300 70, 100, 200, 300 100, 200, 350, 500, 1000 200, 350, 500, 1000
Max. sampling rate in
1/channel, 2 interleaved 1.25/channel, 2.5 interleaved 2.5/channel, 5 interleaved 2.5/channel, 5 interleaved
Gsample/s Max. memory depth in
1/channel, 2 interleaved 10/channel, 20 interleaved; 40/channel, 80 interleaved; 100/channel, 200 interleaved;
Msample
160 Msample (optional) 400 Msample (optional) 1 Gsample (standard) segmented memory segmented memory segmented memory
Timebase accuracy in
50 2.5 2.5 0.5
ppm Vertical bits (ADC)
8 10 10 10
Min. input sensitivity
1 mV/div 1 mV/div 500 µV/div 500 µV/div
Display
6.5", 10" capacitive touch, 10" capacitive touch, 10" capacitive touch, 640 × 480 pixel 1280 × 800 pixel 1280 × 800 pixel 1280 × 800 pixel
Update rate
10 000 waveforms/s 50 000 waveforms/s 64 000 waveforms/s 64 000 waveforms/s
MSO
8 channels, 1 Gsample/s 16 channels, 2.5 Gsample/s 16 channels, 5 Gsample/s 16 channels, 5 Gsample/s
Protocol (optional)
I2C, SPI, UART/RS-232/ I2C, SPI, UART/RS-232/ I2C, SPI, UART/RS-232/RS-422/ I2C, SPI, UART/RS-232/ RS-422/RS-485, CAN, LIN RS-422/RS-485, CAN, LIN RS-485, CAN, LIN, audio (I²S/ RS-422/RS-485, CAN, LIN, LJ/RJ/TDM), ARINC, MIL audio (I²S), ARINC, MIL
Generator(s)
1 generator, 4-bit pattern 1 ARB, 4-bit pattern 1 ARB, 4-bit pattern generator 1 ARB, 4-bit pattern generator generator generator
Math
+, –, *, /, FFT (128k points) +, –, *, /, FFT (128k points) +, –, *, /, FFT (128k points), +, –, *, /, FFT (128k points), 21 advanced functions 21 advanced functions
Rohde & Schwarz probe
– – standard standard
interface RF capability
FFT FFT spectrum analysis spectrum analysis
Rohde & Schwarz
R&S®RTC1000 Oscilloscope
3
