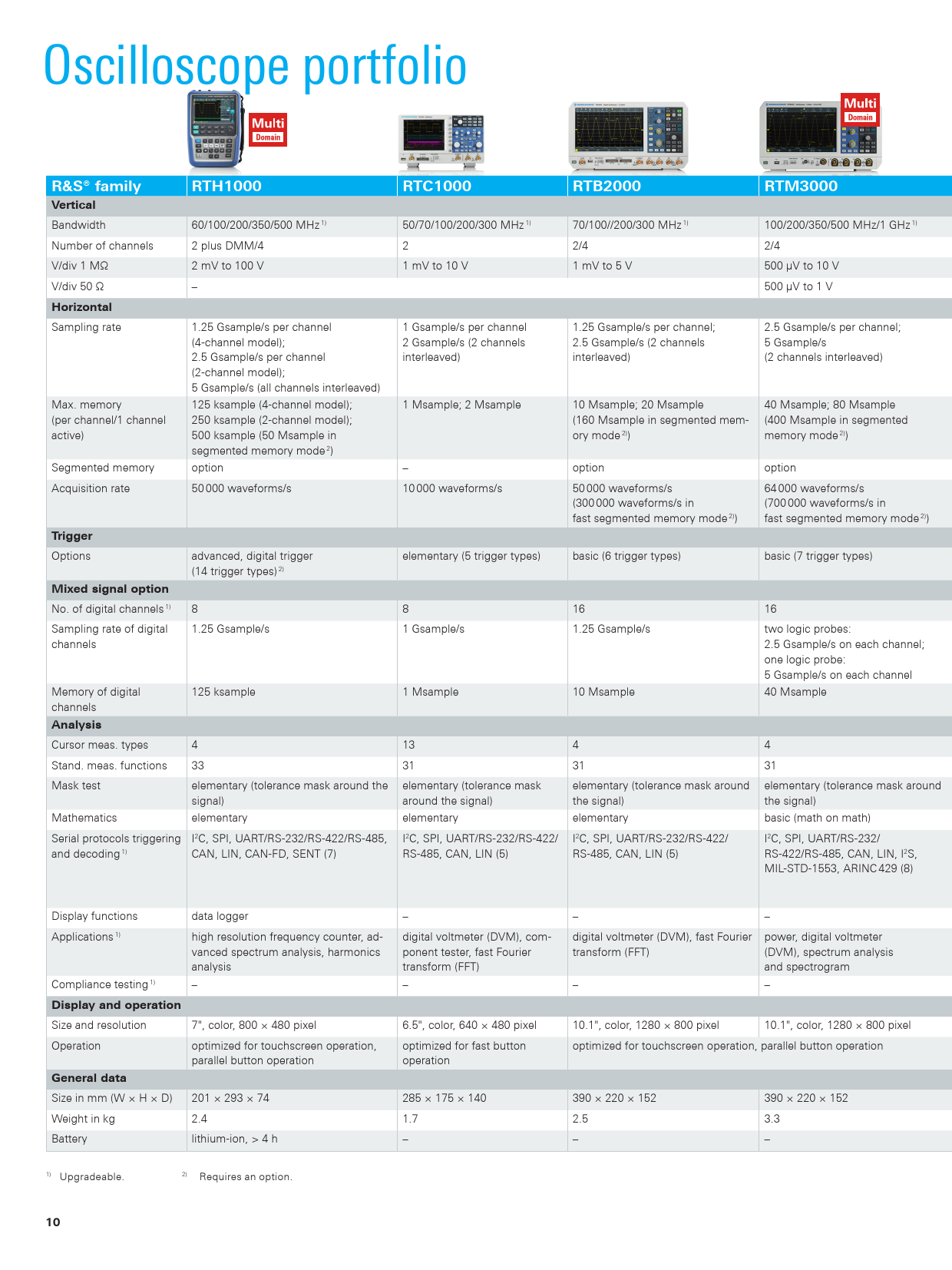

R&S® family. RTH1000. RTC1000. RTB2000. RTM3000. RTA4000. RTE1000. RTO2000. Vertical. Horizontal. Trigger. Mixed signal option. Analysis
Text Version of Document
Oscilloscope portfolio
R&S® family RTH1000 RTC1000 RTB2000 RTM3000 RTA4000 RTE1000 RTO2000 Vertical
Bandwidth 60/100/200/350/500 MHz 1) 50/70/100/200/300 MHz 1) 70/100//200/300 MHz 1) 100/200/350/500 MHz/1 GHz 1) 200/350/500 MHz/1 GHz 1) 200/350/500 MHz/1/1.5/2 GHz 1) 600 MHz/1/2/3/4/6 GHz 1) Number of channels 2 plus DMM/4 2 2/4 2/4 4 2/4 2/4 (only 4 channels in 4 GHz and 6 GHz model) V/div 1 MΩ 2 mV to 100 V 1 mV to 10 V 1 mV to 5 V 500 µV to 10 V 500 µV to 10 V 500 µV to 10 V 1 mV to 10 V (500 μV to 10 V) 2) V/div 50 Ω – 500 µV to 1 V 500 µV to 1 V 500 µV to 5 V 1 mV to 1 V (500 μV to 1 V) 2)
Horizontal
Sampling rate 1.25 Gsample/s per channel 1 Gsample/s per channel 1.25 Gsample/s per channel; 2.5 Gsample/s per channel; 2.5 Gsample/s per channel; 5 Gsample/s per channel 10 Gsample/s per channel; (4-channel model); 2 Gsample/s (2 channels 2.5 Gsample/s (2 channels 5 Gsample/s 5 Gsample/s (2 channels interleaved) 20 Gsample/s (2 channels interleaved in 4 GHz and 6 GHz model) 2.5 Gsample/s per channel interleaved) interleaved) (2 channels interleaved) (2-channel model); 5 Gsample/s (all channels interleaved) Max. memory 125 ksample (4-channel model); 1 Msample; 2 Msample 10 Msample; 20 Msample 40 Msample; 80 Msample 100 Msample; 200 Msample 50 Msample/200 Msample standard: 50 Msample/200 Msample; (per channel/1 channel 250 ksample (2-channel model); (160 Msample in segmented mem- (400 Msample in segmented (1 Gsample in segmented memory mode) max. upgrade: 1 Gsample/2 Gsample active) 500 ksample (50 Msample in ory mode 2)) memory mode 2)) segmented memory mode 2) Segmented memory option – option option standard standard standard Acquisition rate 50 000 waveforms/s 10 000 waveforms/s 50 000 waveforms/s 64 000 waveforms/s 64 000 waveforms/s 1 000 000 waveforms/s 1 000 000 waveforms/s (300 000 waveforms/s in (700 000 waveforms/s in (700 000 waveforms/s in (2 000 000 waveforms/s in (3 000 000 waveforms/s in ultra-segmented memory mode) fast segmented memory mode 2)) fast segmented memory mode 2)) fast segmented memory mode) ultra- segmented memory mode)
Trigger
Options advanced, digital trigger elementary (5 trigger types) basic (6 trigger types) basic (7 trigger types) basic (7 trigger types) advanced, digital trigger (13 trigger types) advanced (includes zone trigger), digital trigger (14 trigger types) 2) (14 trigger types) 2)
Mixed signal option
No. of digital channels 1) 8 8 16 16 16 16 16 Sampling rate of digital 1.25 Gsample/s 1 Gsample/s 1.25 Gsample/s two logic probes: two logic probes: 5 Gsample/s 5 Gsample/s channels 2.5 Gsample/s on each channel; 2.5 Gsample/s on each channel; one logic probe: one logic probe: 5 Gsample/s on each channel 5 Gsample/s on each channel Memory of digital 125 ksample 1 Msample 10 Msample 40 Msample 100 Msample 100 Msample 200 Msample channels
Analysis
Cursor meas. types 4 13 4 4 4 3 3 Stand. meas. functions 33 31 31 31 31 47 47 Mask test elementary (tolerance mask around the elementary (tolerance mask elementary (tolerance mask around elementary (tolerance mask around elementary (tolerance mask around the advanced (freely configurable, hardware-based) advanced (freely configurable, hardware-based) signal) around the signal) the signal) the signal) signal) Mathematics elementary elementary elementary basic (math on math) basic (math on math) advanced (formula editor) advanced (formula editor) Serial protocols triggering I2C, SPI, UART/RS-232/RS-422/ RS-485, I2C, SPI, UART/RS-232/ RS-422/ I2C, SPI, UART/RS-232/ RS-422/ I2C, SPI, UART/RS-232/ I2C, SPI, UART/RS-232/RS-422/RS-485, I2C, SPI, UART/RS-232/RS-422/RS-485, CAN, LIN, I2C, SPI, UART/RS-232/RS-422/RS-485, CAN, LIN, I2S, MIL-STD-1553, and decoding 1) CAN, LIN, CAN-FD, SENT (7) RS-485, CAN, LIN (5) RS-485, CAN, LIN (5) RS-422/RS-485, CAN, LIN, I2S, CAN, LIN, I2S, MIL-STD-1553, ARINC 429 (8) I2S, MIL-STD-1553, ARINC 429, FlexRay™, ARINC 429, FlexRay™, CAN-FD, MIPI RFFE, USB 2.0/HSIC, MDIO, MIL-STD-1553, ARINC 429 (8) CAN-FD, USB 2.0/HSIC, Ethernet, Manchester, 8b 10b, Ethernet, Manchester, NRZ, SENT, MIPI D-PHY, SpaceWire, NRZ, SENT, SpaceWire, CXPI, USB Power MIPI M-PHY/ UniPro, CXPI, USB 3.1 Gen1, USB-SSIC, PCIe 1.1/2.0, USB Delivery, automotive Ethernet 100BASE-T1 (19) Power Delivery, automotive Ethernet 100BASE-T1 (27) Display functions data logger – – – – histogram, trend, track 2) histogram, trend, track 2) Applications 1) high resolution frequency counter, ad- digital voltmeter (DVM), com- digital voltmeter (DVM), fast Fourier power, digital voltmeter power, digital voltmeter (DVM), spectrum power, 16-bit high definition mode (standard), power, 16-bit high definition mode, advanced spectrum analysis and vanced spectrum analysis, harmonics ponent tester, fast Fourier transform (FFT) (DVM), spectrum analysis analysis and spectrogram advanced spectrum analysis and spectrogram spectrogram, jitter, clock data recovery, I/Q data, RF analysis analysis transform (FFT) and spectrogram Compliance testing 1) – – – – – – various options available, for details see data sheet (PD 3607.2684.22)
Display and operation
Size and resolution 7", color, 800 × 480 pixel 6.5", color, 640 × 480 pixel 10.1", color, 1280 × 800 pixel 10.1", color, 1280 × 800 pixel 10.1", color, 1280 × 800 pixel 10.4", color, 1024 × 768 pixel 12.1", color, 1280 × 800 pixel Operation optimized for touchscreen operation, optimized for fast button optimized for touchscreen operation, parallel button operation optimized for touchscreen operation, parallel button operation parallel button operation operation
General data
Size in mm (W × H × D) 201 × 293 × 74 285 × 175 × 140 390 × 220 × 152 390 × 220 × 152 390 × 220 × 152 427 × 249 × 204 427 × 249 × 204 Weight in kg 2.4 1.7 2.5 3.3 3.3 8.6 9.6 Battery lithium-ion, > 4 h – – – – – – 1) Upgradeable. 2) Requires an option.
