Datasheet RTB2000 Digital oscilloscope (Rohde&Schwarz) - 9
| Manufacturer | Rohde&Schwarz |
| Description | Oscilloscope Specifications |
| Pages / Page | 20 / 9 — Version 05.00, February 2018. Display characteristics. Protocol and … |
| Revision | 05.00 |
| File Format / Size | PDF / 1.7 Mb |
| Document Language | English |
Version 05.00, February 2018. Display characteristics. Protocol and logic. Miscellaneous. Rohde & Schwarz
Text Version of Document

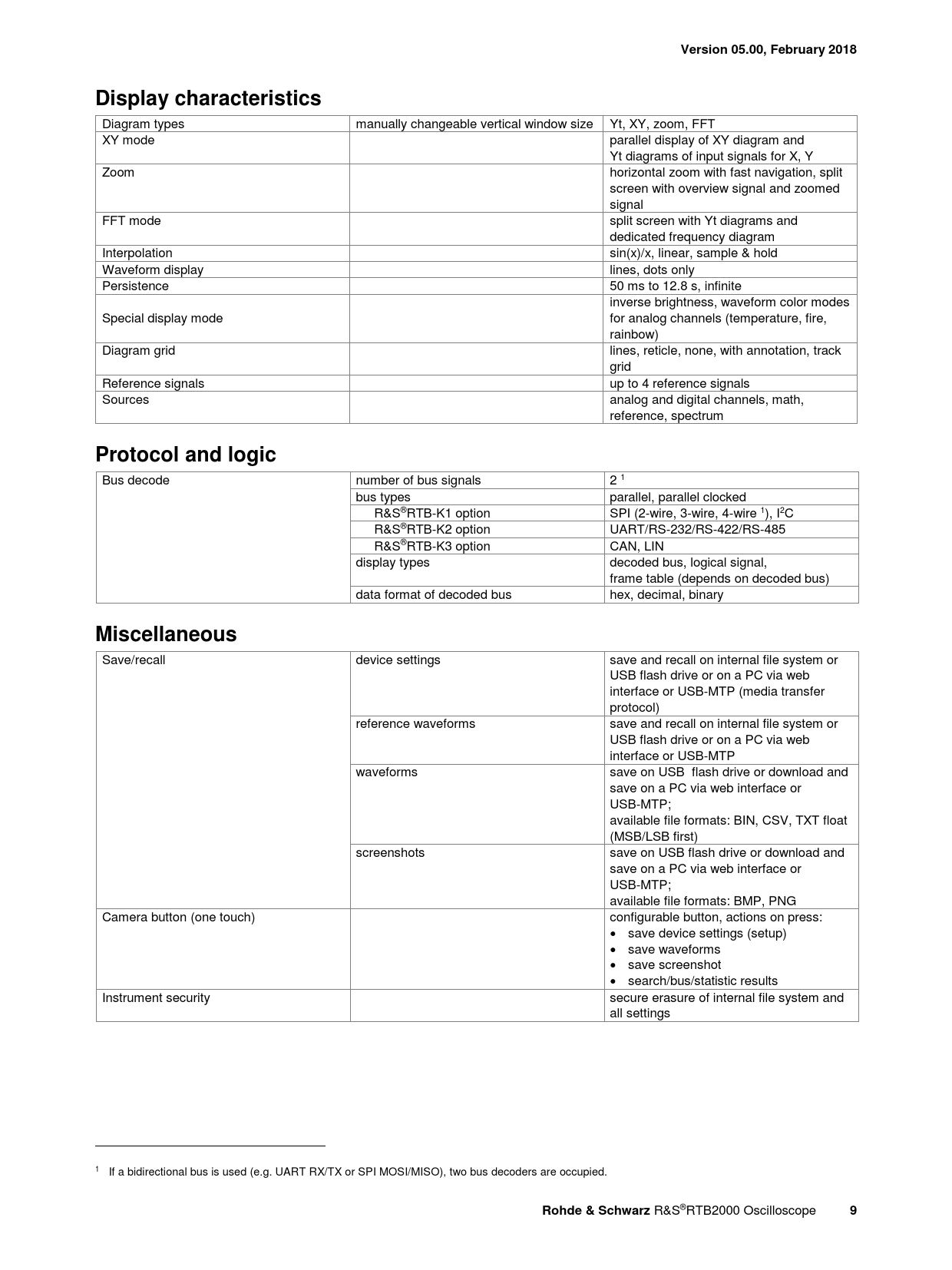

Version 05.00, February 2018 Display characteristics
Diagram types manually changeable vertical window size Yt, XY, zoom, FFT XY mode parallel display of XY diagram and Yt diagrams of input signals for X, Y Zoom horizontal zoom with fast navigation, split screen with overview signal and zoomed signal FFT mode split screen with Yt diagrams and dedicated frequency diagram Interpolation sin(x)/x, linear, sample & hold Waveform display lines, dots only Persistence 50 ms to 12.8 s, infinite inverse brightness, waveform color modes Special display mode for analog channels (temperature, fire, rainbow) Diagram grid lines, reticle, none, with annotation, track grid Reference signals up to 4 reference signals Sources analog and digital channels, math, reference, spectrum
Protocol and logic
Bus decode number of bus signals 2 1 bus types parallel, parallel clocked R&S®RTB-K1 option SPI (2-wire, 3-wire, 4-wire 1), I2C R&S®RTB-K2 option UART/RS-232/RS-422/RS-485 R&S®RTB-K3 option CAN, LIN display types decoded bus, logical signal, frame table (depends on decoded bus) data format of decoded bus hex, decimal, binary
Miscellaneous
Save/recall device settings save and recall on internal file system or USB flash drive or on a PC via web interface or USB-MTP (media transfer protocol) reference waveforms save and recall on internal file system or USB flash drive or on a PC via web interface or USB-MTP waveforms save on USB flash drive or download and save on a PC via web interface or USB-MTP; available file formats: BIN, CSV, TXT float (MSB/LSB first) screenshots save on USB flash drive or download and save on a PC via web interface or USB-MTP; available file formats: BMP, PNG Camera button (one touch) configurable button, actions on press: save device settings (setup) save waveforms save screenshot search/bus/statistic results Instrument security secure erasure of internal file system and all settings 1 If a bidirectional bus is used (e.g. UART RX/TX or SPI MOSI/MISO), two bus decoders are occupied.
Rohde & Schwarz
R&S®RTB2000 Oscilloscope
9
Diagram types manually changeable vertical window size Yt, XY, zoom, FFT XY mode parallel display of XY diagram and Yt diagrams of input signals for X, Y Zoom horizontal zoom with fast navigation, split screen with overview signal and zoomed signal FFT mode split screen with Yt diagrams and dedicated frequency diagram Interpolation sin(x)/x, linear, sample & hold Waveform display lines, dots only Persistence 50 ms to 12.8 s, infinite inverse brightness, waveform color modes Special display mode for analog channels (temperature, fire, rainbow) Diagram grid lines, reticle, none, with annotation, track grid Reference signals up to 4 reference signals Sources analog and digital channels, math, reference, spectrum
Protocol and logic
Bus decode number of bus signals 2 1 bus types parallel, parallel clocked R&S®RTB-K1 option SPI (2-wire, 3-wire, 4-wire 1), I2C R&S®RTB-K2 option UART/RS-232/RS-422/RS-485 R&S®RTB-K3 option CAN, LIN display types decoded bus, logical signal, frame table (depends on decoded bus) data format of decoded bus hex, decimal, binary
Miscellaneous
Save/recall device settings save and recall on internal file system or USB flash drive or on a PC via web interface or USB-MTP (media transfer protocol) reference waveforms save and recall on internal file system or USB flash drive or on a PC via web interface or USB-MTP waveforms save on USB flash drive or download and save on a PC via web interface or USB-MTP; available file formats: BIN, CSV, TXT float (MSB/LSB first) screenshots save on USB flash drive or download and save on a PC via web interface or USB-MTP; available file formats: BMP, PNG Camera button (one touch) configurable button, actions on press: save device settings (setup) save waveforms save screenshot search/bus/statistic results Instrument security secure erasure of internal file system and all settings 1 If a bidirectional bus is used (e.g. UART RX/TX or SPI MOSI/MISO), two bus decoders are occupied.
Rohde & Schwarz
R&S®RTB2000 Oscilloscope
9
